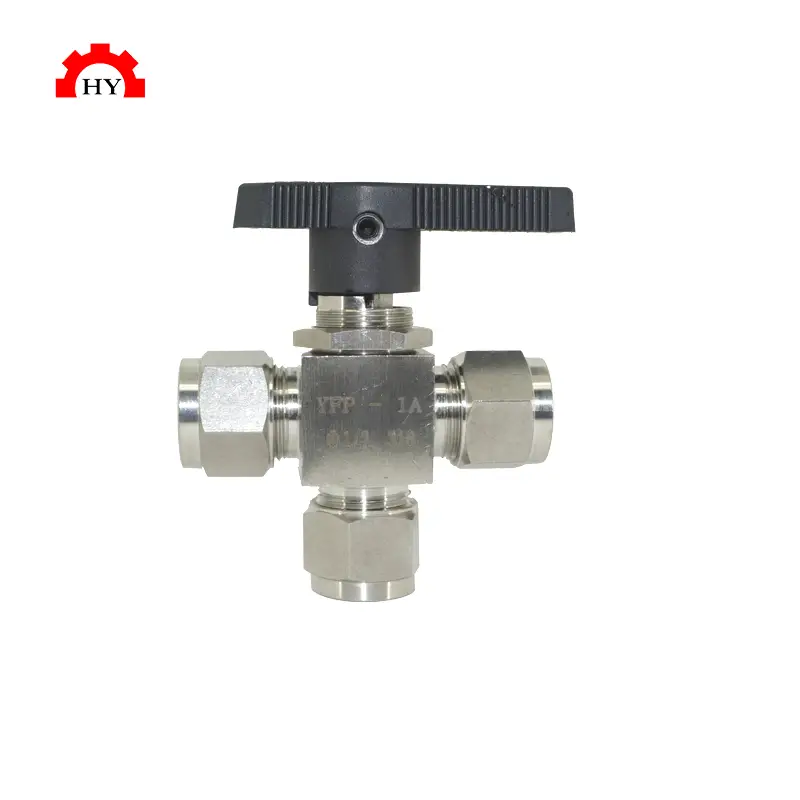

Stainless steel 304 316 Cng Dispenser High Pressure 3000 PSI 6000 PSI Three Way Ball Valve Compression Fitting Panel Mounted Instrument Ball Valve
Structural features
1. The fluid resistance is small, and its resistance coefficient is equal to that of the pipe section of the same length.
2. Simple structure, small size and light weight.
3. It is tight and reliable. At present, the sealing surface material of ball valve is widely used plastic, which has good sealing performance, and has also been widely used in vacuum system.
4. Easy to operate, quick to open and close, just rotate 90° from fully open to fully closed
5. The maintenance is convenient, the ball valve has a simple structure, the sealing ring is generally movable, and it is more convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium, and when the medium passes through, the valve sealing surface will not be eroded.
7. It has a wide range of applications, with diameters ranging from small to several millimeters to several meters, and can be applied from high vacuum to high pressure.
Dimension
|
Connection |
Ordering |
Orifice |
Cv |
Size (mm) |
||||||||
|
Inlet/Outlet |
Size |
|
A |
B |
C |
D |
F |
G |
H |
I |
||
|
Inch tube |
1/16” |
Q94SAF-1/16 |
1.3 |
0.08 |
20.8 |
41.6 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
20.0 |
|
1/8” |
Q94SAF-1/8 |
2.6 |
0.2 |
25.7 |
51.4 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
24.8 |
|
|
1/4” |
Q94SAF-1/4 |
2.6 |
0.2 |
28.1 |
56.2 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
27.3 |
|
|
Q94SAF1-1/4 |
4.2 |
0.9 |
30.5 |
61.0 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
27.6 |
||
|
3/8” |
Q94SAF-3/8 |
4.2 |
0.9 |
32.0 |
64.0 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
29.1 |
|
|
1/2” |
Q94SAF-1/2 |
10.0 |
4.6 |
44.2 |
88.4 |
61.7 |
76.2 |
17.5 |
9.7 |
38.1 |
44.2 |
|
|
3/4” |
Q94SAF-3/4 |
10.0 |
3.8 |
44.2 |
88.4 |
61.7 |
76.2 |
17.5 |
9.7 |
38.1 |
44.2 |
|
|
Metric tube |
3mm |
Q94SAF-3M |
2.6 |
0.2 |
25.7 |
51.4 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
24.7 |
|
6mm |
Q94SAF-6M |
2.6 |
0.2 |
27.9 |
55.8 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
27.2 |
|
|
Q94SAF1-6M |
4.2 |
0.9 |
30.5 |
61.0 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
27.5 |
||
|
8mm |
Q94SAF-8M |
4.2 |
0.9 |
31.2 |
62.4 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
28.4 |
|
|
10mm |
Q94SAF-10M |
4.2 |
0.9 |
32.2 |
64.4 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
29.4 |
|
|
12mm |
Q94SAF-12M |
10.0 |
4.6 |
42.2 |
88.4 |
61.7 |
76.2 |
17.5 |
9.7 |
38.1 |
44.2 |
|
Product details
Main Parts
| No. | Part Name | Material |
| 1 | Handle | Plastic |
| 2 | Stem Nut | 316/304 |
| 3 | Stem | 304 |
| 4 | Body | 316/304 |
| 5 | Ball | 316/304 |
| 6 | Ball Seat | PTFE |
| 7 | Stem Packing | PTFE |
