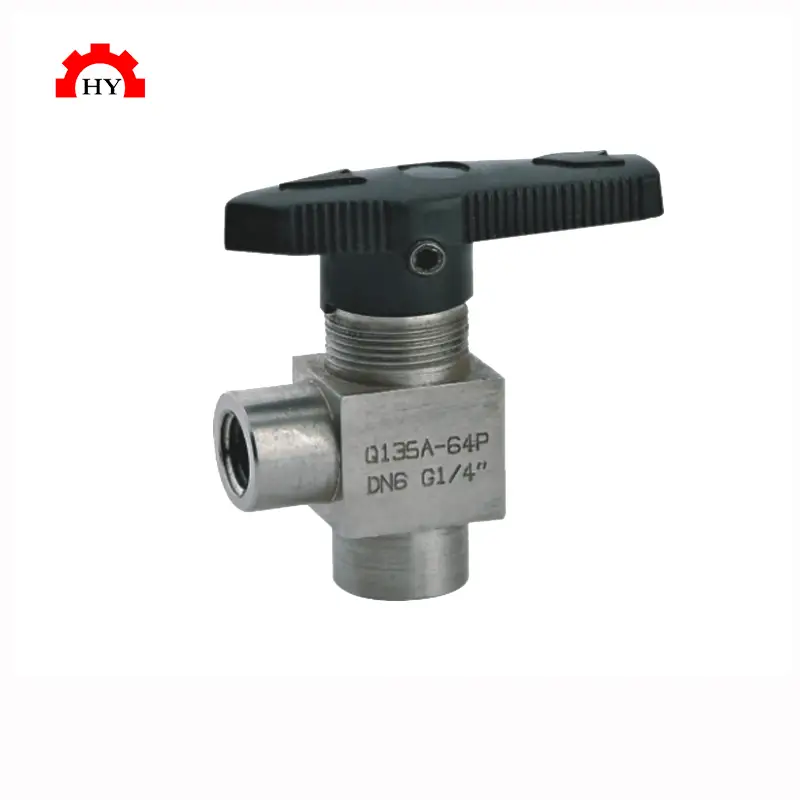

HY Stainless Steel 304 316 6.4Mpa Angle Type PTFE Seat Screw End Industrial 90 Degree Instrument Ball Valve 1

HY Stainless Steel 304 316 6.4Mpa Angle Type PTFE Seat Screw End Industrial 90 Degree Instrument Ball Valve 2

HY Stainless Steel 304 316 6.4Mpa Angle Type PTFE Seat Screw End Industrial 90 Degree Instrument Ball Valve 3

HY Stainless Steel 304 316 6.4Mpa Angle Type PTFE Seat Screw End Industrial 90 Degree Instrument Ball Valve 4

HY Stainless Steel 304 316 6.4Mpa Angle Type PTFE Seat Screw End Industrial 90 Degree Instrument Ball Valve

Size:

1/8” to 1”

Place of Origin:

China

Minimum order quantity:

50 pcs

Working Pressure:

1000 PSI to 6000 PSI

Working Temperature:

normal temperature

Material:

Stainless Steel

Packing:

inner case is carton, outside package is plywood case

Delivery time:

7-20 days

Model:

Q11SAF-A

Transaction mode:

By sea, By air, By truck , By international express

Seat:

PTFE

Medium:

Oil, Gas, Water

Stem:

F304 F316 F304L F316L

Ball:

F304 F316 F304L F316L

Structure:

Reduce Port

Design:

According to ANSI B16.34

Test Standard:

API 598

Thread:

NPT, BSPT, BSPP

Inquiry

Write a Review

Product details

Industrial HY stainless steel ball valve 90 degree angle design

HY 304 316 stainless steel 90 degree industrial ball valve PTFE seal

Product Overview

Explore HY brand's high-performance 90-degree stainless steel ball valve, made of corrosion-resistant 304 or 316 stainless steel, 6.4Mpa high pressure design, equipped with PTFE seal to ensure leak-free operation. This angle screw-connected ball valve is suitable for chemical, petroleum, pharmaceutical and other industries, providing precise fluid control solutions.

HY series 90-degree angle ball valve adopts high-standard manufacturing process to ensure the reliability and durability of the valve. Here are some highlights of this ball valve:

●Material advantages: Selected 304 or 316 stainless steel materials, with good corrosion resistance and mechanical properties, adaptable to various harsh working environments.

●Pressure resistance: The high design pressure of 6.4Mpa meets the needs of most industrial applications and ensures the safe and stable operation of the system.

●Sealing design: PTFE (polytetrafluoroethylene) material seal, high temperature resistance, chemical resistance, effectively prevent medium leakage.

●Angle design: 90-degree angle design, saves space, and facilitates pipeline layout.

●Connection method: screw connection, easy installation and easy maintenance.

●Wide application: Applicable to chemical, petroleum, pharmaceutical, food processing and other industries to meet the needs of different industrial processes.

Dimension

Connection		Ordering Number	Orifice (mm)	Cv		Size (mm)
Inlet/Outlet	Size	Ordering Number	Orifice (mm)	Straight	Angle	A	B	C	D	E	F	G	H	I
Female NPT	1/8"	Q11SAF-1/8	2.6	0.25	0.15	20.6	41.2	37.3	30.0	7.5	8.6	4.4	15.1	19.9
	1/8"	Q11SAF1-1/8	4.2	1.2	0.7	23.1	46.2	41.6	40.0	9.7	11.2	4.8	19.8	20.2
	1/4"	Q11SAF-1/4	4.2	0.9	0.75	24.5	49.0	41.6	40.0	9.7	11.2	4.8	19.8	22.2
	1/4"	Q11SAF1-1/4	7.0	3.0	1.7	31.8	63.6	52.6	50.8	14.2	14.2	9.7	28.6	31.2
	3 /8"	Q11SAF-3/8	7.0	2.6	1.5	31.8	63.6	52.6	50.8	14.2	14.2	9.7	28.6	31.2
	1/2"	Q11SAF1-1/2	10.0	6.3	3.5	49.8	99.6	61.7	76.2	17.5	17.5	9.7	38.1	39.6

Main Parts

No.	Part Name	Material
1	Handle	Plastic
2	Stem Nut	316/304
3	Stem	304
4	Body	316/304
5	Ball	316/304
6	Ball Seat	PTFE
7	Stem Packing	PTFE

FAQ

How many is the MOQ ?

50 pcs

How long is the delivery time ?

It depends on the quantity Small quantity order , 7-15 days Mass quantity order , 20-30 days

What is the payment term ?

30% T/T before production, the balance before shipment 50% T/T before production , the balance is paid after customers see the copy of sea B/L 100% L/C at sight For other payment terms , we can discuss

What payment method you have ?

We can accept payment via paypal , western union , T/T , L/C

How long is the guarantee period ?

The guarantee period is 12 months after the goods arrive in customers’ company , or 18 months after the goods are shipped from our company

If there is quality problem , then how can you solve it ?

During the guarantee period , if there are quality problems , please contact us , we will take positive action , the solution is that , if we can repair , then we repair , if we can not repair , then we will send new items to customers to replace unqualified items , customers do not need to send us the unqualified items .

Do you have OEM/ODM service ?

Yes, we have OEM/ODM service , we can put your logo on our products by laser marking .

How can we know your product quality ?

At first , we can send you free samples , you check our quality , then you can place small order to check the quality again , if the quality is ok , then you place bulk order .

For the customized products , how can you make sure the quality ?

We will make samples as per your drawing or sample first , after get your approval , then we start to arrange mass production .

What is the shipping method ?

Small quantity products usually are shipped by international express or air logistic , if large quantity , we will ship them by sea .
