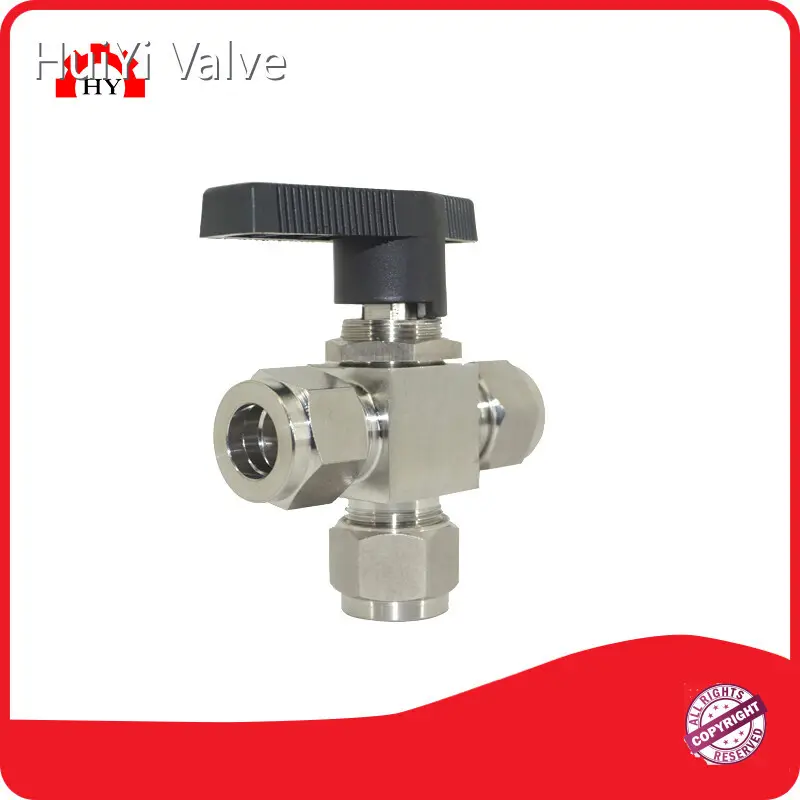

Instrument Ball Valve 1000 PSI to 6000 PSI - - HuiYi Valve
Structural features
1. The fluid resistance is small, and its resistance coefficient is equal to that of the pipe section of the same length.
2. Simple structure, small size and light weight.
3. It is tight and reliable. At present, the sealing surface material of ball valve is widely used plastic, which has good sealing performance, and has also been widely used in vacuum system.
4. Easy to operate, quick to open and close, just rotate 90° from fully open to fully closed
5. The maintenance is convenient, the ball valve has a simple structure, the sealing ring is generally movable, and it is more convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium, and when the medium passes through, the valve sealing surface will not be eroded.
7. It has a wide range of applications, with diameters ranging from small to several millimeters to several meters, and can be applied from high vacuum to high pressure.
Dimension
|
Connection |
Ordering Number |
Orifice (mm) |
Cv |
Size (mm) |
||||||||
|
Inlet/Outlet |
Size |
|
A |
B |
C |
D |
F |
G |
H |
I |
||
|
Inch tube |
1/16” |
Q94SAF-1/16 |
1.3 |
0.08 |
20.8 |
41.6 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
20.0 |
|
1/8” |
Q94SAF-1/8 |
2.6 |
0.2 |
25.7 |
51.4 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
24.8 |
|
|
1/4” |
Q94SAF-1/4 |
2.6 |
0.2 |
28.1 |
56.2 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
27.3 |
|
|
Q94SAF1-1/4 |
4.2 |
0.9 |
30.5 |
61.0 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
27.6 |
||
|
3/8” |
Q94SAF-3/8 |
4.2 |
0.9 |
32.0 |
64.0 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
29.1 |
|
|
1/2” |
Q94SAF-1/2 |
10.0 |
4.6 |
44.2 |
88.4 |
61.7 |
76.2 |
17.5 |
9.7 |
38.1 |
44.2 |
|
|
3/4” |
Q94SAF-3/4 |
10.0 |
3.8 |
44.2 |
88.4 |
61.7 |
76.2 |
17.5 |
9.7 |
38.1 |
44.2 |
|
|
Metric tube |
3mm |
Q94SAF-3M |
2.6 |
0.2 |
25.7 |
51.4 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
24.7 |
|
6mm |
Q94SAF-6M |
2.6 |
0.2 |
27.9 |
55.8 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
27.2 |
|
|
Q94SAF1-6M |
4.2 |
0.9 |
30.5 |
61.0 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
27.5 |
||
|
8mm |
Q94SAF-8M |
4.2 |
0.9 |
31.2 |
62.4 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
28.4 |
|
|
10mm |
Q94SAF-10M |
4.2 |
0.9 |
32.2 |
64.4 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
29.4 |
|
|
12mm |
Q94SAF-12M |
10.0 |
4.6 |
42.2 |
88.4 |
61.7 |
76.2 |
17.5 |
9.7 |
38.1 |
44.2 |
|
Product details
Main Parts
| No. | Part Name | Material |
| 1 | Handle | Plastic |
| 2 | Stem Nut | 316/304 |
| 3 | Stem | 304 |
| 4 | Body | 316/304 |
| 5 | Ball | 316/304 |
| 6 | Ball Seat | PTFE |
| 7 | Stem Packing | PTFE |
Company Advantages
· HuiYi Valve instrument ball valve is manufactured & designed using innovative tools & equipment.
· Consistent quality and functions are the characteristics of this product.
· Wenzhou Huiyi Valve Technology Co.,Ltd provides integrated and comprehensive solutions to its customers.
Company Features
· Wenzhou Huiyi Valve Technology Co.,Ltd is strongly recommended as a trusted manufacturer of instrument ball valve. We have been in business for many years.
· The quality of instrument ball valve is strictly controlled by our professional team.
· We are continually strengthening our environmental policies and practices to reduce greenhouse gas emissions, waste, and water usage across our entire operation. Get quote!
Application of the Product
Our instrument ball valve can be used in multiple scenarios.
With a focus on HuiYi Valve is dedicated to providing reasonable solutions for customers.
