Ball Valve Manufacturer Normal Temperature by HuiYi Valve

Product details of the ball valve manufacturer

Quick Overview

With the support of the latest technology, advanced equipment, and highly qualified & experienced workforce, HuiYi Valve ball valve manufacturer is finely produced with an aesthetically-appealing appearance. The product has properties of long service, excellent and stable performance. Wenzhou Huiyi Valve Technology Co.,Ltd's product development capabilities have grown a lot stronger.

Product Introduction

The ball valve manufacturer of HuiYi Valve has the following advantages compared with ball valve manufacturer in the market.

Product Overview

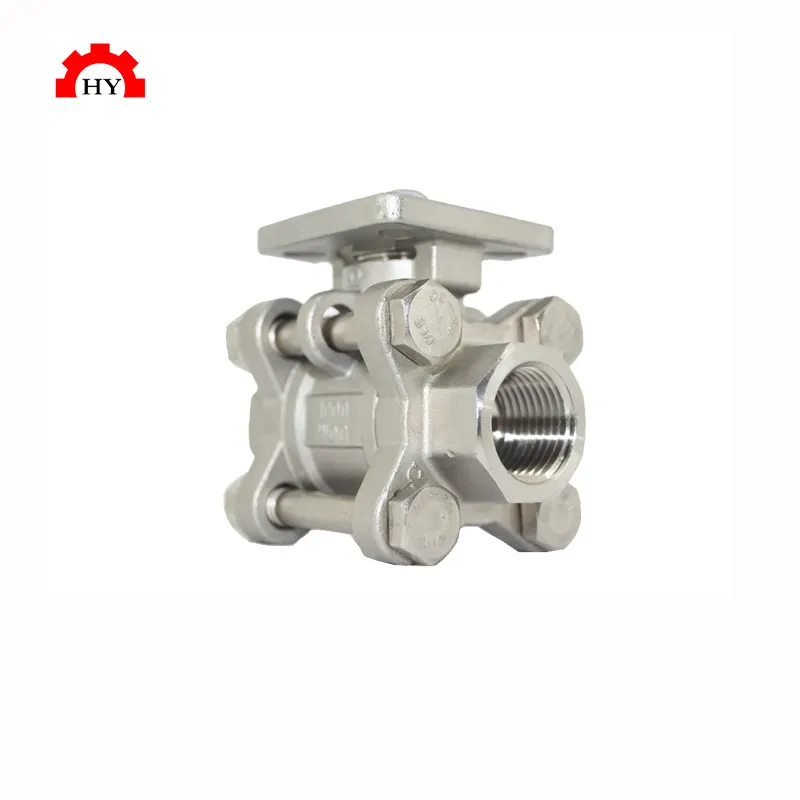

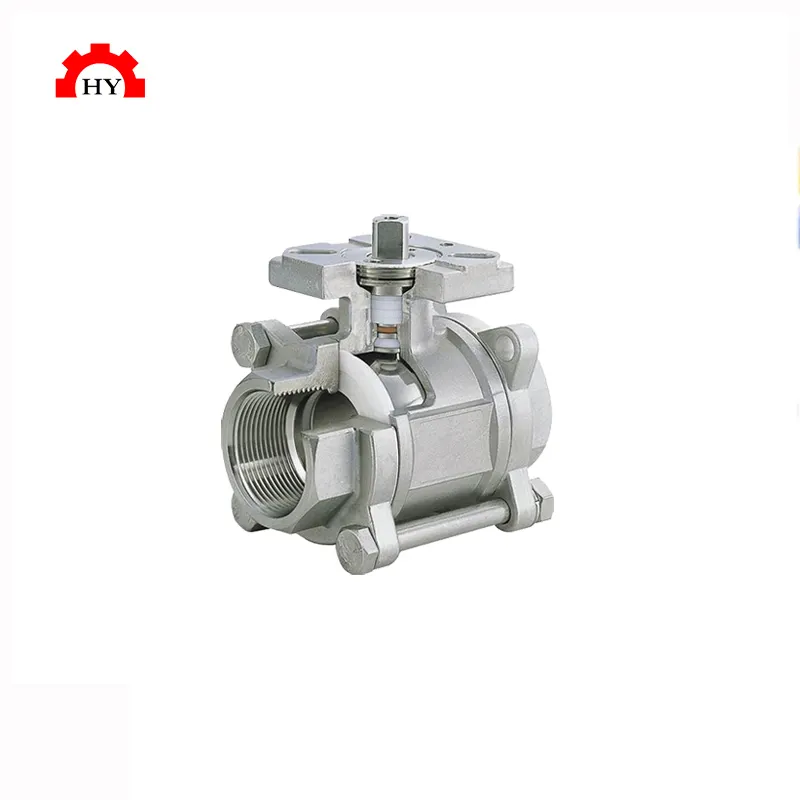

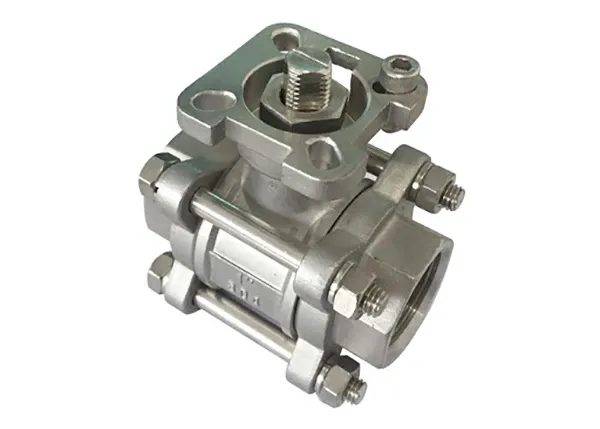

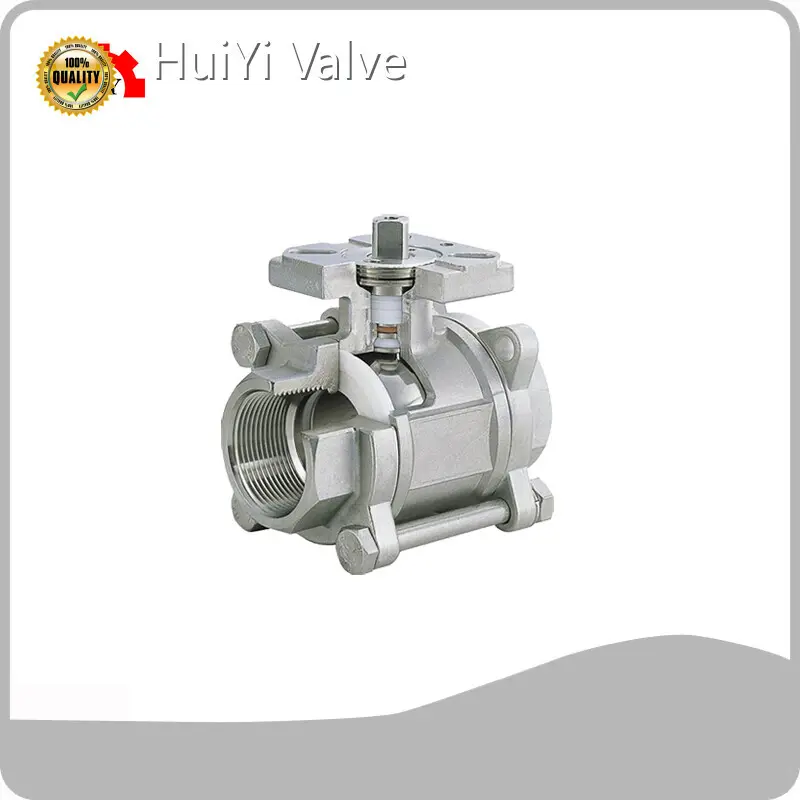

The Female NPT BSPT BSPP Female Thread 3pc Ball Valve with ISO5211 Mounting Pad launched by HY brand is a high-performance industrial ball valve suitable for various fluid control applications. The ball valve adopts a three-piece design, which is easy to maintain and replace, while ensuring higher sealing performance and strength. The following are the main features of the product:

●Full port, 1/4'-4' (DN6-DN100)

●Working pressure W.P.: 1000WOG (PN63)

●Working temperature W.T.: -20℃~180℃

●Investment casting

●Blow-out proof siem

●Live-loading design

●Anti-static device (option)

●Locking device handle

●-IS05211 Direct mounting pad

●Automation device (optional) Aulomalion accessories (opticn)

●Thread type: ASME B1.20.1 (NPT). DIN 259/DIN 2999.BS 21.190 288-1.1S0 7-1

●Socket weld type: ASME B16.11 & DIN3239 part2

●Butt weld type: ASME B16.25& DIN3239 part1'

Product details

Material List

No.	PARTS		MATERIAL
1	BONNET	WCB	CF8	CFBMM
2	GASKET	PTFE
3	SEAT	PTFE
4	BALL	CF8	CF8	CFBM
5	BODY	WCB	CF8	CF8M
6	BOLT	304
7	SPRING WASHER	304
8	NUT	304
9	STEM	304	304	316
10	STEM WASHER	PTFE+25% GF
11	O-RING	FPM
12	PACKING	PTFE
13	WEAR WASHER	PTFE+25% GF
14	GLAND	304
15	DISC SPRING	304
16	GLAND FLANGE	CF8
17	HEX SOCKET BOLT	304
18	NUT	304
19	STOPPER	304
20	HANDLE	WCBJCFB
21	BOLT	304
22	NUT	304

Dimensions

SIZE		d	L	H	h	K×K	A	B	Ra	Rb	W	H1	D	J	L1	D1	T
1/4'	DN6	10	68	43	9	9×9	36	42	3.0	3.0	140	75	14.2	9.5	63	14.5	2.25
3/8'	DN10	12	68	43	9	9×9	36	42	3.0	3.0	140	75	17.6	9.5	63	17.5	2.75
1/2'	DN15	15	68.5	43	9	9×9	36	42	3.0	3.0	140	75	21.8	9.5	70	21.5	3.0
3/4'	DN20	20	79	47	9	9×9	36	42	3.0	3.0	140	79	27.2	12.5	80	27	3.0
1'	DN25	25	89	57	11	11×11	42	50	3.0	3.5	170	92	33.9	12.5	90	34	3.5
1-1/4'	DN32	32	100.5	63	11	11×11	42	50	3.0	3.5	170	98	42.7	12.5	104	42.5	3.7
1-1/2'	DN40	38	111	72	14	14×14	50	70	3.5	4.5	200	110	48.8	12.5	116	48.5	4
2'	DN50	50	129	80	14	14×14	50	70	3.5	4.5	200	118	61.2	16	138	60.5	4
2-1/2'	DN65	65	169.5	98	17	17×17	70	102	4.5	5.5	300	142	73.9	16	182	74	4.5
3'	DN80	80	191	110	17	17×17	70	102	4.5	5.5	300	154	89.8	16	203	90	5
4'	DN100	100	242	132	17	17×17	70	102	4.5	5.5	300	176	115.2	19	252	114.5	6

fAQ

1

How many is the MOQ ?

50 pcs

2

How long is the delivery time ?

It depends on the quantity Small quantity order , 7-15 days Mass quantity order , 20-30 days

3

What is the payment term ?

30% T/T before production, the balance before shipment 50% T/T before production , the balance is paid after customers see the copy of sea B/L 100% L/C at sight For other payment terms , we can discuss

4

What payment method you have ?

We can accept payment via paypal , western union , T/T , L/C

5

How long is the guarantee period ?

The guarantee period is 12 months after the goods arrive in customers’ company , or 18 months after the goods are shipped from our company

6

If there is quality problem , then how can you solve it ?

During the guarantee period , if there are quality problems , please contact us , we will take positive action , the solution is that , if we can repair , then we repair , if we can not repair , then we will send new items to customers to replace unqualified items , customers do not need to send us the unqualified items .

7

Do you have OEM/ODM service ?

Yes, we have OEM/ODM service , we can put your logo on our products by laser marking .

8

How can we know your product quality ?

At first , we can send you free samples , you check our quality , then you can place small order to check the quality again , if the quality is ok , then you place bulk order .

9

For the customized products , how can you make sure the quality ?

We will make samples as per your drawing or sample first , after get your approval , then we start to arrange mass production .

10

What is the shipping method ?

Small quantity products usually are shipped by international express or air logistic , if large quantity , we will ship them by sea .

Company Information

With its location in Wenzhou Huiyi Valve Technology Co.,Ltd is a company engaged in the production and processing of 企业名称] always adheres to the business philosophy of 'quality wins the market, reputation creates the future' and carries forward the enterprise spirit of 'determined and progressing, developing and innovating'. With the consistent focus on integrated industrialization, we strive to improve our core competitiveness and to become a modern enterprise with a wide brand recognition, great innovation ability, and good economic benefits. HuiYi Valve has a group of high-quality technical personnel and a highly efficient production team. Besides, we adopt advanced development tools and concepts for product research and development. With many years of practical experience, HuiYi Valve is capable of providing comprehensive and efficient one-stop solutions.
We supply our products of good quality and affordable price in long term. Please feel free to consult us!
