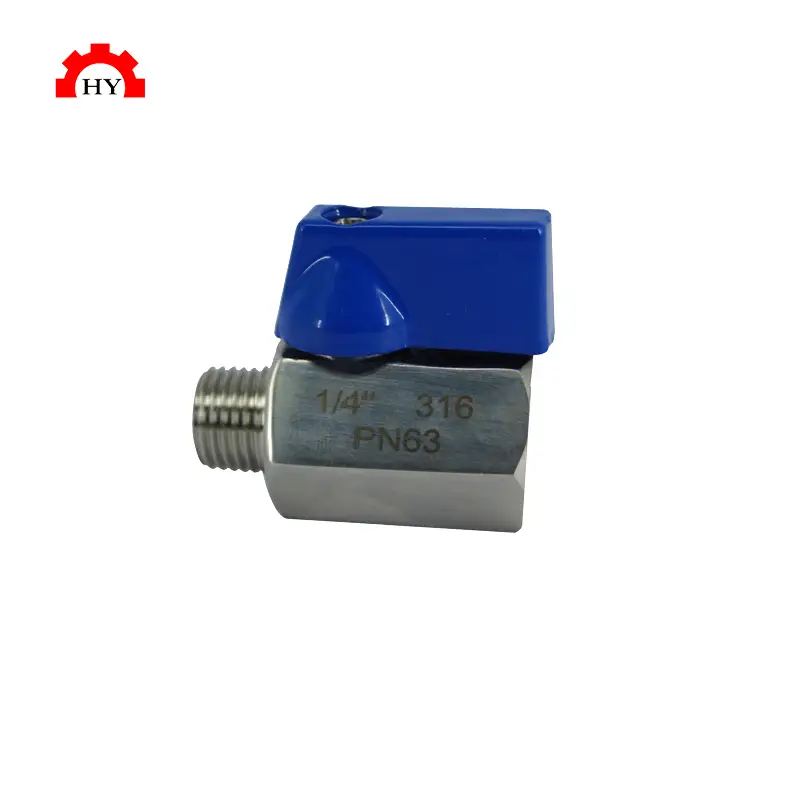

Mini Ball Valve PN63 1000psi Stainless Steel Mini Ball Valve 304 316 Threaded End Mini Ball Valve
Product Description
Durable: Made of high-quality stainless steel, durable construction, high strength, corrosion resistance and pressure resistance, temperature resistance, used for a long time.
Function: Used for connecting two pipes, which go in the same direction in the double-seal system.
Size: 1/4" NPT Thread Female and Male Valves. Quick 1/4 turn open or close operation.
Safety and Easy to Use: Standard port flow for smaller valve sizes, each valve tested individually to ensure maximum safety (no icing) for water, oil and gas.
Secure Connection: Its double seal system designed specifically for inline valves connecting two pipes in the same direction, ensures a secure and reliable connection that prevents leaks and maximizes efficiency.
Dimension
|
Size |
D |
H |
W |
L |
|
1/4” |
7.5 |
17 |
22 |
41 |
|
3/8” |
7 |
17 |
22 |
41 |
|
1/2” |
9.2 |
28 |
22 |
46 |
|
3/4” |
12.5 |
32.5 |
22 |
54 |
|
1” |
15 |
34 |
22 |
65 |
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle |
316/304 |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Body |
316/304 |
|
5 |
Ball |
316/304 |
|
6 |
Ball Seat |
PTFE |
|
7 |
Stem Packing |
PTFE |
