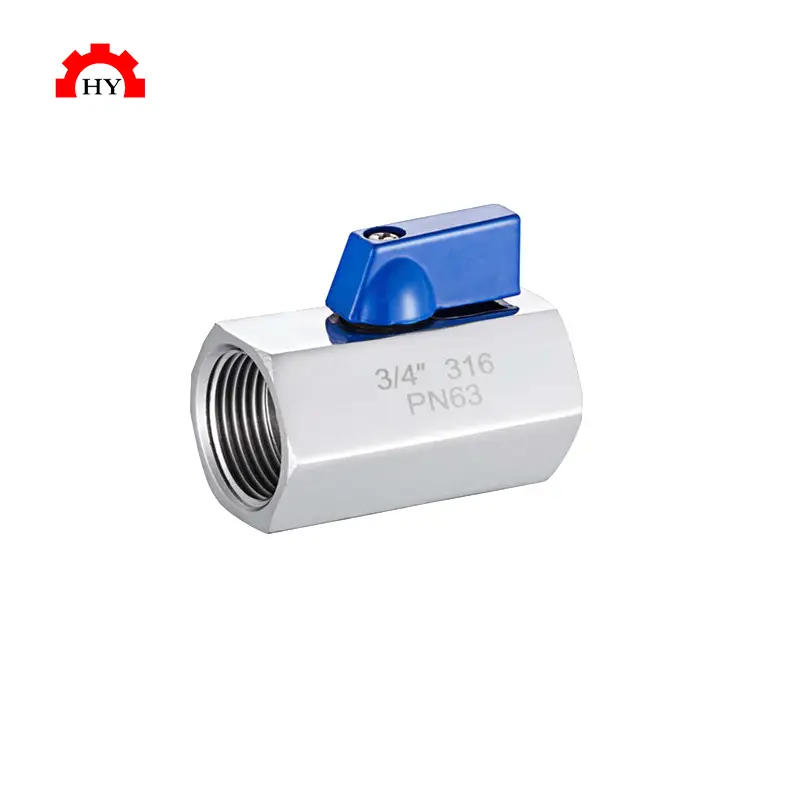

Safe And Reliable RC NPT BSP 1000WOG PN63 Stainless Steel 304 316 Manual 1/4" 3/8” 1/2”Female Threaded Mini Ball Valve
5.0
Size:
1/8" to 1"
Place of Origin:
China
Minimum order quantity:
50 pcs
Working Pressure:
1000 PSI(PN63)
Working Temperature:
Normal temperature
Material:
Stainless Steel
Packing:
Inner case is carton, outside package is plywood case
Delivery time:
7-20 days
Model:
HY-MNBVFF
Transaction mode:
By sea, By air, By truck , By international express
Seat:
PTFE
Medium:
Oil, Gas, Water
Stem:
F304 F316 F304L F316L
Ball:
F304 F316 F304L F316L
Structure:
Reduce Port
Design:
According to ANSI B16.34
Test Standard:
API 598
Thread:
NPT, BSPT, BSPP
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
Female threads for connecting to male threaded pipe fittings
SUS body and ball for extra strength and corrosion resistance
Inline valve for connecting two pipes going in the same direction with Double-seal system
Heavy duty stainless handles to increase service life, fast 1/4 turn open or closed operation
Standard port flow for smaller valve size, each valve individually tested for maximum safety about Water, Oil, and Gas(no freezing)
Dimension
|
Size |
1/4” |
3/8” |
1/2” |
3/4” |
1” |
|
D |
7 |
7 |
9.2 |
12.5 |
15 |
|
L |
42 |
42 |
46 |
54 |
65 |
|
H |
26.5 |
26.5 |
26.5 |
31.5 |
64 |
|
W |
22.5 |
22.5 |
22.5 |
22.5 |
22.5 |
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle |
316/304 |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Body |
316/304 |
|
5 |
Ball |
316/304 |
|
6 |
Ball Seat |
PTFE |
|
7 |
Stem Packing |
PTFE |
Product details
