2 Stainless Steel Ball Valve by HuiYi Valve

Company Advantages

· HuiYi Valve 2 stainless steel ball valve is a newly designed with advanced international level.

· The product can meet customer's demanding requirement on durability and functionality.

· Wenzhou Huiyi Valve Technology Co.,Ltd is able to keep pace with an ever increasing speed of 2 stainless steel ball valve market change.

Product Overview

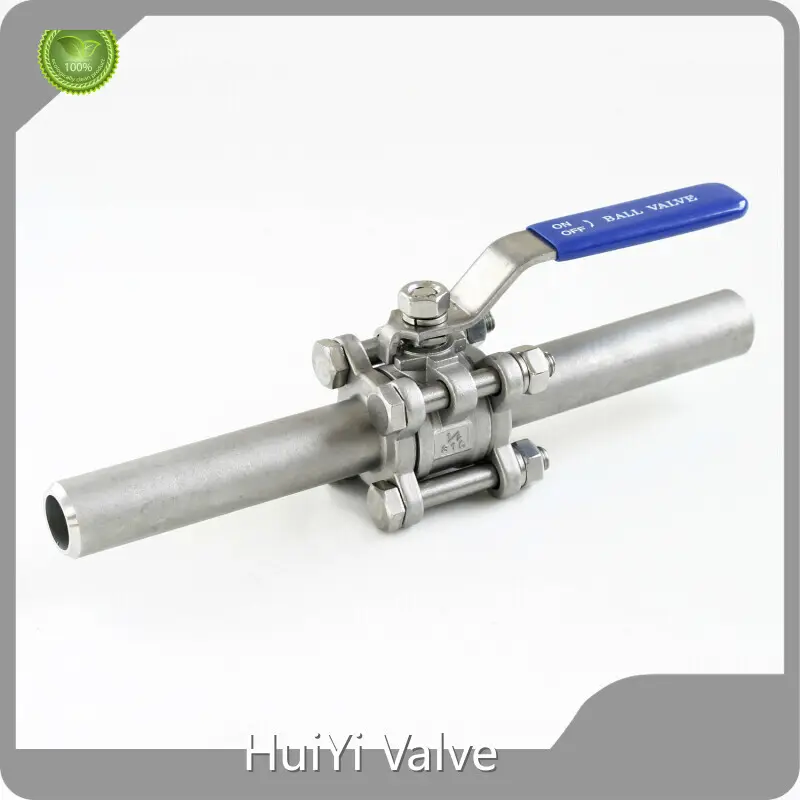

HY 600 WOG stainless steel butt-welded floating ball valve - professional fluid control solution, made of high-quality stainless steel, with 600WOG high pressure resistance. This bidirectional floating ball valve ensures the sealing and durability of the pipeline system through precise welding technology. It is suitable for industries such as petroleum, chemical, and pharmaceutical, providing reliable flow control and media isolation, and is an ideal choice for the safe operation of industrial pipelines.

Product Details

Materials of main parts

No.	Parts name	PART NAME	MATERLAL
1	Valve body	BODY	WCB/CFB/CFBM
2	Ball	BALL	S5304/S5316
3	Valve cover	END CAP	WCB/CFB/CFBM
4	Valve seat	SEAT	RTFE
5	Valve stem	STEM	S5304/55316
6	Thrust washer	THRUST WASHER	RTFE
7	V-type packing	STEM PACKING	RTFE
8	Compression ring	GLAND BUSH	SS304
9	Handle	HANDLE	SS304
10	Handle cover	HANDLE COVER	PC
11	Dish washer	STEM NUT	SS304
12	Butterfly release cover	HANDLE NUT	SS304
13	Handle lock	LOCKING PAD	SS304
14	Valve stem nut	BELLEVILLE WASHER	SS304
15	O-ring	O-RING	NBR
16	Bolt	BODY BOLT	SS304
17	Spring washer	BOLT WASHER	SS304
18	Nut	BOLT NUT	SS304

Specifications

Nominal pressure:	PN 1.6,2.5,4.0,6.4MPa
Strength testing pressure:	PT2.4,3.8,6.0.9.6MMPa
Seat testing pressure (low pressure):	0.6MPa
Applicable media:	Q61F-(16-64)C Water.OiLGas
	Q61F-(16-64)P Nitric acid
	Q61F-(16-64)R Acetic acid
Applicable temperature:	-20~180*C

Main outer size

DN	L		D	H		E		I50 5211
	①	②		①	②	①	②
6	65		12.7	48		105
10	65		12.7	48		105
15	75	75	15	57.5	72	105	150	F03	F04
20	90	90	20	63	78	129	150	F03	F05
25	100	100	25	75.5	88	156	177	F04	F05
32	110	110	32	81	93	156	177	F04	F07
40	125	125	38	81	101	182	196	F05	F07
50	150	150	50	94	108	182	196	F05	F07
65	190	190	63.5	104.5	145	252	266	F07	F10
80	220	220	76	131	155	252	266	F07	F10
100	270	270	100	180		318		F10	F10

1

How many is the MOQ ?

50 pcs

2

How long is the delivery time ?

It depends on the quantity Small quantity order , 7-15 days Mass quantity order , 20-30 days

3

What is the payment term ?

30% T/T before production, the balance before shipment 50% T/T before production , the balance is paid after customers see the copy of sea B/L 100% L/C at sight For other payment terms , we can discuss

4

What payment method you have ?

We can accept payment via paypal , western union , T/T , L/C

5

How long is the guarantee period ?

The guarantee period is 12 months after the goods arrive in customers’ company , or 18 months after the goods are shipped from our company

6

If there is quality problem , then how can you solve it ?

During the guarantee period , if there are quality problems , please contact us , we will take positive action , the solution is that , if we can repair , then we repair , if we can not repair , then we will send new items to customers to replace unqualified items , customers do not need to send us the unqualified items .

7

Do you have OEM/ODM service ?

Yes, we have OEM/ODM service , we can put your logo on our products by laser marking .

8

How can we know your product quality ?

At first , we can send you free samples , you check our quality , then you can place small order to check the quality again , if the quality is ok , then you place bulk order .

9

For the customized products , how can you make sure the quality ?

We will make samples as per your drawing or sample first , after get your approval , then we start to arrange mass production .

10

What is the shipping method ?

Small quantity products usually are shipped by international express or air logistic , if large quantity , we will ship them by sea .

Company Features

· Wenzhou Huiyi Valve Technology Co.,Ltd has become the top 2 stainless steel ball valve manufacturer.

· We have brought up a production management team. The team mainly focuses on quality improvement. They have strict requirements on materials procurement and workmanship, which helps us gain an advantage over the competition by improving quality and cutting costs.

· Wenzhou Huiyi Valve Technology Co.,Ltd has been widely recognized and highly evaluated in the 2 stainless steel ball valve industry through cooperation with many excellent suppliers. Ask online!

Product Details

The overall quality of 2 stainless steel ball valve has been greatly improved through the optimization of the following details.

Application of the Product

The 2 stainless steel ball valve managed by HuiYi Valve is widely used in industry.

HuiYi Valve has been engaged in the production of for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.

Product Comparison

After improvement, the 2 stainless steel ball valve produced by HuiYi Valve is more brilliant in the following aspects.
