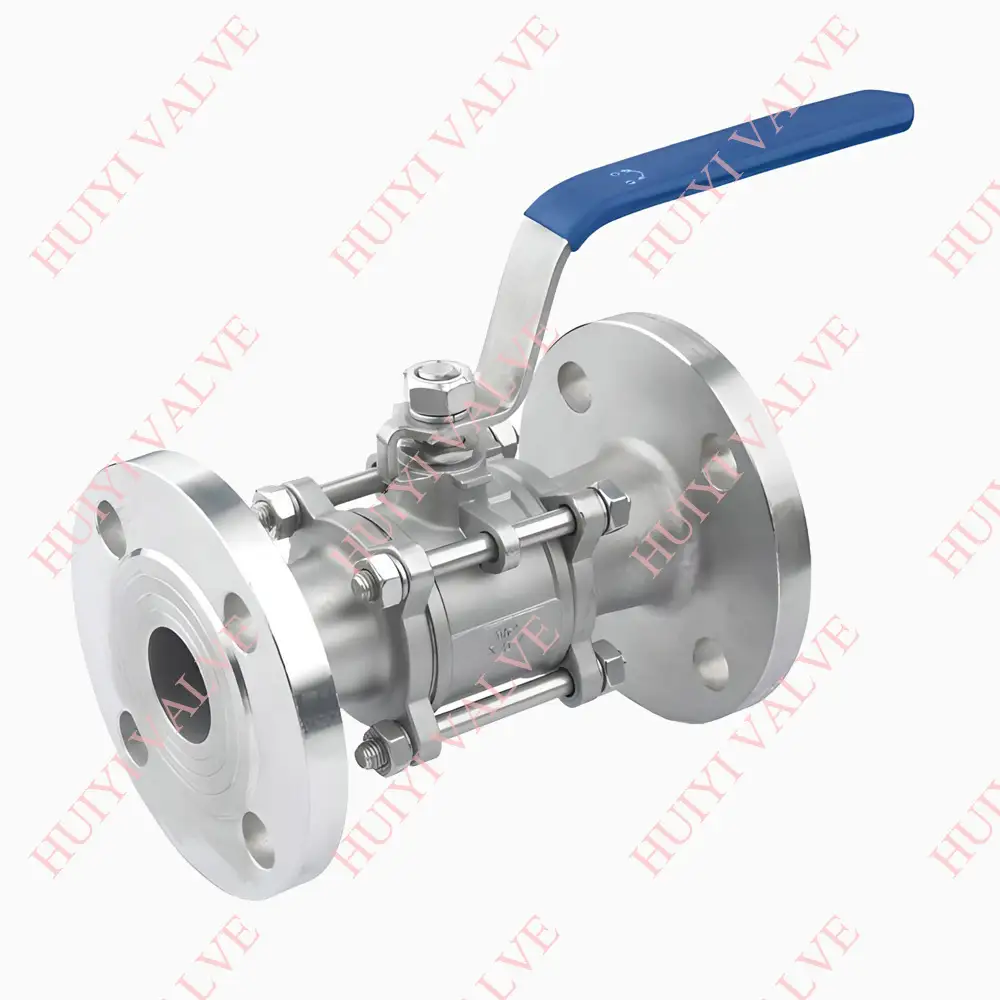

Flanged Ball Valve 150 LB, 2PC Stainless Steel CF8/CF8M
Size: 1/2”(DN15) to 4”(DN100)
Place of Origin: Zhejiang, China
Minimum order quantity: 20 pcs
Working Pressure: PN16, PN25, PN40
Working Temperature: -10 degree C to 150 degree C
Material: Stainless Steel CF8, CF8M
Packing: inner case is carton, outside package is plywood case
Delivery time: 7-25 days
Medium: Oil, Gas, Water
Transaction mode: By sea, By air, By truck , By international express
Seat: PTFE
Stem: F304 F316 F304L F316L
Ball: F304 F316 F304L F316L
Structure: Full Port
Design: According to ANSI B16.34
Test Standard: API 598
Certificate: Material Test Certificate(MTC, QC), COC, Country of Origin
Product details
Main Demensions
| Size | D | D1 | K | C | L | H | W | N/I |
| 1/2” | 15 | 95 | 65 | 45 | 130 | 84 | 146 | 4-14 |
| 3/4” | 20 | 105 | 75 | 58 | 150 | 87 | 146 | 4-14 |
| 1” | 25 | 115 | 85 | 68 | 160 | 93 | 153 | 4-14 |
| 1-1/4” | 32 | 140 | 100 | 78 | 180 | 99 | 153 | 4-18 |
| 1-1/2” | 40 | 150 | 110 | 88 | 200 | 114 | 217 | 4-18 |
| 2” | 50 | 165 | 125 | 102 | 230 | 122 | 217 | 4-18 |
| 2-1/2” | 65 | 185 | 145 | 122 | 290 | 150 | 251 | 8-18 |
| 3” | 76 | 200 | 160 | 138 | 310 | 161 | 251 | 8-18 |
| 4” | 94 | 235 | 190 | 162 | 350 | 180 | 291 | 8-22 |
Main Part Material
| No. | Part Name | Material |
| 15 | Handle Cover | CF8/CF8M |
| 14 | Handle | SS201/SS304/SS316 |
| 13 | Nut | SS201/SS304/SS316 |
| 12 | Spring Washer | S201/SS304/SS316 |
| 11 | Packing Gland | CF8/CF8M |
| 10 | Packing | PTFE |
| 9 | Washer | PTFE |
| 8 | Stem | SS304/SS316 |
| 7 | Nut | SS201/SS304/SS316 |
| 6 | Spring Washer | SS201/SS304/SS316 |
| 5 | Bolt | SS201/SS304/SS316 |
| 4 | Valve Cover | CF8/CF8M |
| 3 | Ball Seat | PTFE |
| 2 | Ball | SS304/SS316 |
| 1 | Body | CF8/CF8M |
Key Features
- Material: Constructed from high-quality materials such as stainless steel, carbon steel, or other alloys, ensuring durability and resistance to corrosion.
- Design: The ball valve design offers a tight seal with minimal friction, reducing wear and tear over time.
- Operation: Available in manual, pneumatic, or electric actuation options to suit different operational requirements.
- Pressure Rating: Designed to withstand high pressure, making it suitable for demanding industrial applications.
- Temperature Range: Capable of operating in a wide temperature range, from cryogenic to high-temperature environments.
- End Connections: Flanged ends conform to international standards (e.g., ANSI, DIN, JIS) for easy installation and compatibility with existing piping systems.
Applications
Oil and Gas Industry: Used in pipelines, refineries, and offshore platforms.
Chemical Processing: Suitable for handling corrosive and hazardous chemicals.
Water Treatment: Ideal for controlling water flow in treatment plants and distribution systems.
Power Generation: Used in power plants for steam and cooling water systems.
General Industrial Use: Applicable in various industries for fluid control.
Advantages
Reliability: Provides a reliable and long-lasting solution for flow control.
Ease of Maintenance: Simple design allows for easy maintenance and repair.
Versatility: Suitable for a wide range of applications and media.
Safety: Ensures a secure and leak-proof operation, enhancing safety in industrial environments.
Technical Specifications
•Size Range: 1/2" to 4" (DN15 to DN100)
•Pressure Rating: PN16, PN25, PN40
•Temperature Range: -10 degree C to 150 degree C
•Standards: Complies with API, ASME, DIN, and other international standards.
Installation and Maintenance
Installation: Ensure proper alignment of flanges and use appropriate gaskets and bolts for a secure connection.
Maintenance: Regularly inspect the valve for signs of wear or damage and replace any worn components as needed.
