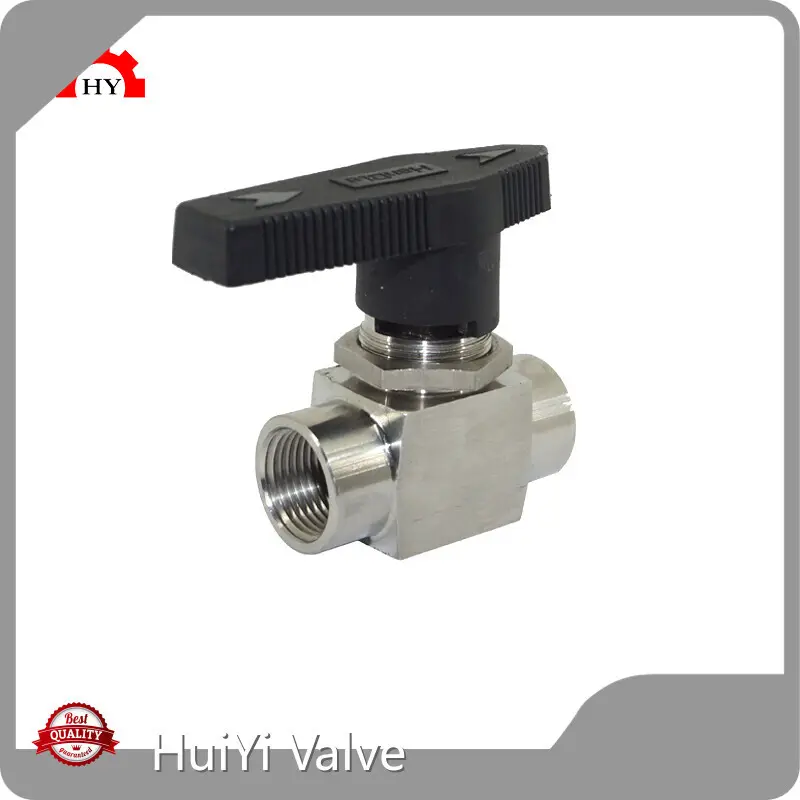

Product details of the wholesale valves
Product Overview
The production of HuiYi Valve wholesale valves is invested a lot, from R&D to the production equipment, which maximize the performance of he product. The quality and performance of this product are backed up by qualified staff and technical knowledge. This product deserves popularization and application in its field.
Product Information
Compared with other products in the same category, wholesale valves produced by HuiYi Valve has the following advantages.
Dimension
|
Connection |
Ordering Number |
Orifice (mm) |
Cv |
Size (mm) |
||||||||||
|
Inlet/Outlet |
Size |
Straight |
Angle |
A |
B |
C |
D |
E |
F |
G |
H |
I |
||
|
Female NPT |
1/8” |
Q11SAF-1/8 |
2.6 |
0.25 |
0.15 |
20.6 |
41.2 |
37.3 |
30.0 |
7.5 |
8.6 |
4.4 |
15.1 |
19.9 |
|
Q11SAF1-1/8 |
4.2 |
1.2 |
0.7 |
23.1 |
46.2 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
20.2 |
||
|
1/4” |
Q11SAF-1/4 |
4.2 |
0.9 |
0.75 |
24.5 |
49.0 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
22.2 |
|
|
Q11SAF1-1/4 |
7.0 |
3.0 |
1.7 |
31.8 |
63.6 |
52.6 |
50.8 |
14.2 |
14.2 |
9.7 |
28.6 |
31.2 |
||
|
3/8” |
Q11SAF-3/8 |
7.0 |
2.6 |
1.5 |
31.8 |
63.6 |
52.6 |
50.8 |
14.2 |
14.2 |
9.7 |
28.6 |
31.2 |
|
|
1/2” |
Q11SAF1-1/2 |
10.0 |
6.3 |
3.5 |
49.8 |
99.6 |
61.7 |
76.2 |
17.5 |
17.5 |
9.7 |
38.1 |
39.6 |
|
|
Male NPT |
1/4” |
Q11SAF-1/4 |
4.0 |
1.2 |
0.75 |
25.5 |
51.0 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
22.2 |
Product details
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle |
Plastic |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Body |
316/304 |
|
5 |
Ball |
316/304 |
|
6 |
Ball Seat |
PTFE |
|
7 |
Stem Packing |
PTFE |
