Product details of the wholesale valves
Product Overview
The entire production process of HuiYi Valve wholesale valves strictly follows the international norms. The product is outstanding in respects of performance, durability, and usability. The promising industry trend creates more development space for this product to apply.
Product Description
wholesale valves's outstanding quality is shown in the details.
Product Description

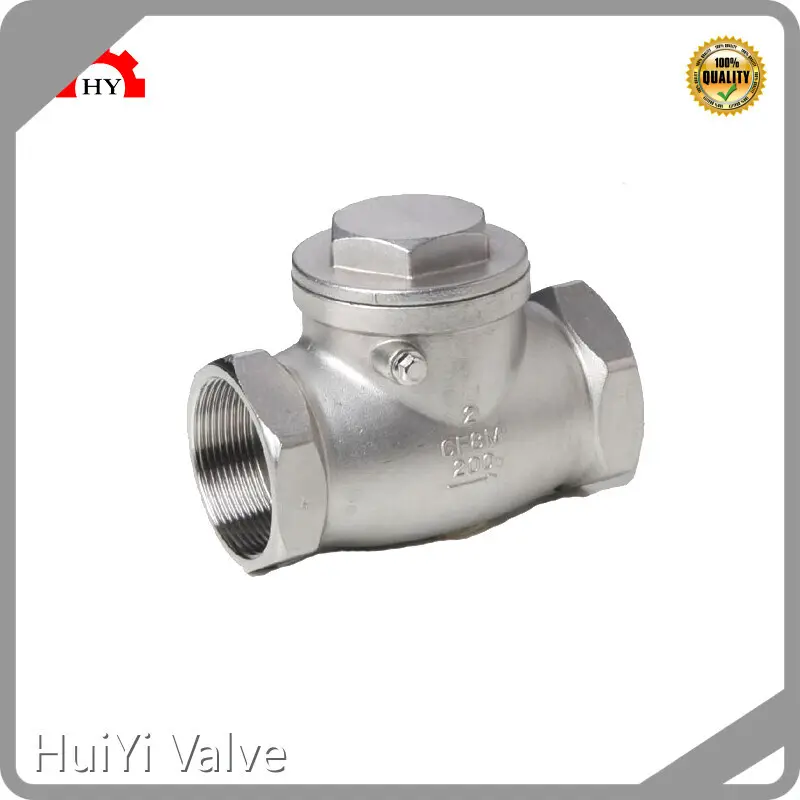

Check valves are used to help direct flow in one direction. The stainless steel bodies and PTFE seals are highly corrosion resistant allowing these check valves to be used with a wide variety of fluids including, but not limited to water, oil, gas, air, light alkali's, acids, biodiesel, fuels and alcohols
Swing check valves are for horizontal use only. When fluid pushes on the stopper in the correct direction, it will "swing" open to allow flow. If flow moves in the opposite direction, it will swing shut. The check valve cannot be used in vertical applications as gravity may affect the function of the swinging motion
Dimension
Size |
∅ D(mm) |
L(mm) |
H(mm) |
1/2” |
15 |
65 |
43 |
3/4” |
20 |
80 |
53 |
1” |
25 |
90 |
60 |
1-1/4” |
32 |
105 |
60 |
1-1/2” |
40 |
120 |
75 |
2” |
50 |
140 |
79 |
Main Parts
No. |
Part Name |
Material |
1 |
Bonnet |
CF8/CF8M |
2 |
Gasket |
PTFE |
3 |
Body |
CF8/CF8M |
4 |
Hanger Pin |
304 |
5 |
Plug Gasket |
PTFE |
6 |
Plug |
304 |
7 |
Discharge Plug |
CF8/CF8M |
