Wholesale Pipe Fittings by Air by HuiYi Valve
Product details of the wholesale pipe fittings
Product Information
HuiYi Valve wholesale pipe fittings is manufactured under modern management system. The product is stable in performance and long in service life. Wenzhou Huiyi Valve Technology Co.,Ltd has a first-rate team that allows you to enjoy the best service and create first-class quality wholesale pipe fittings.
Product details

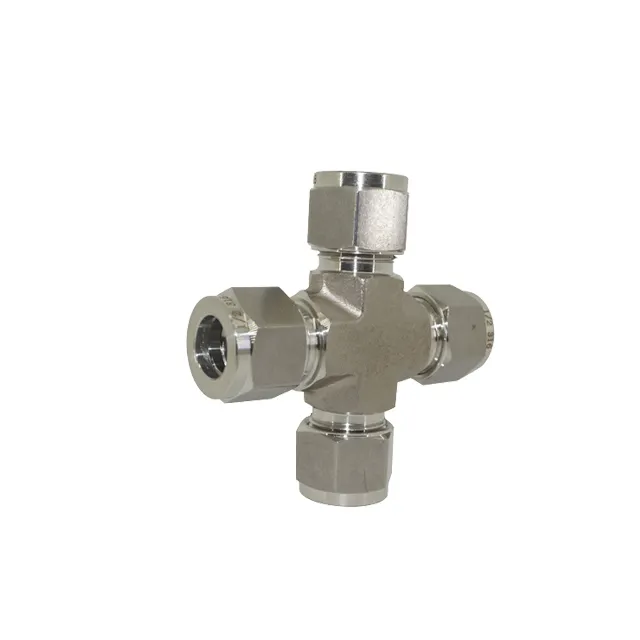

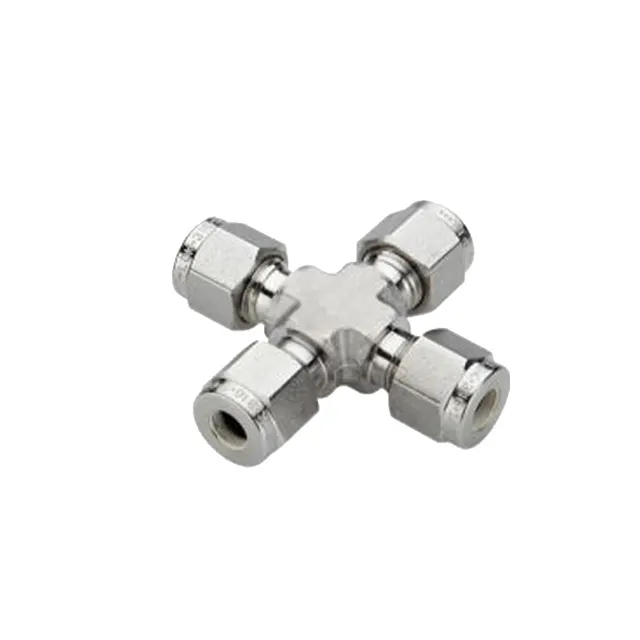

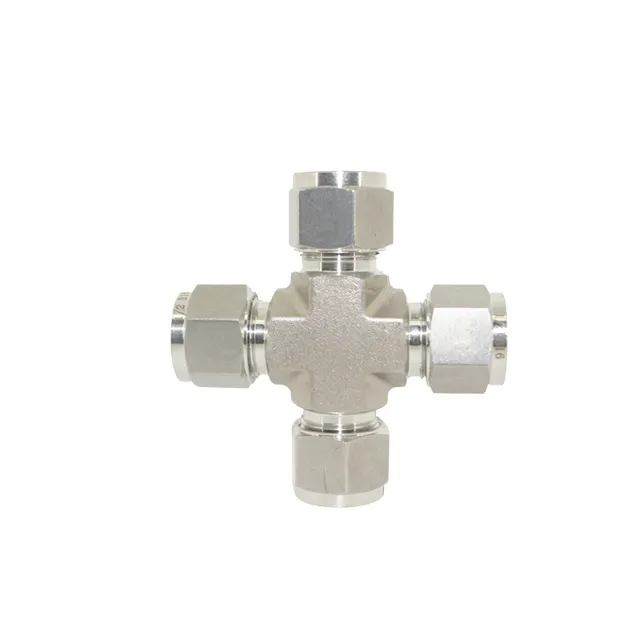

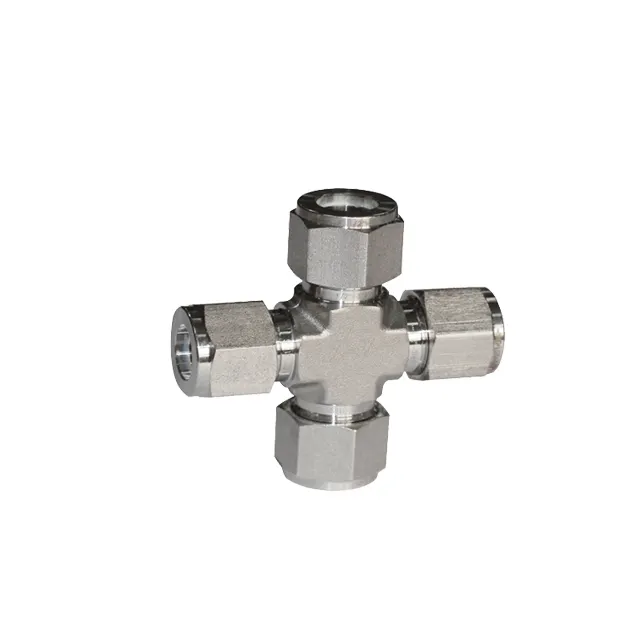

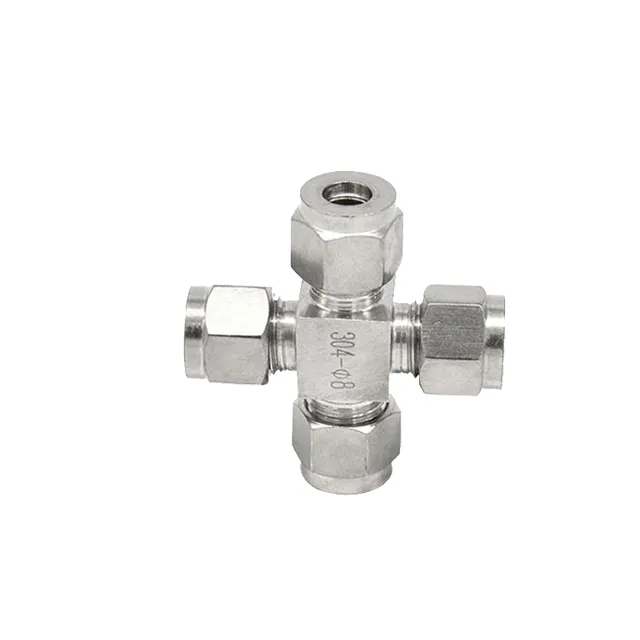

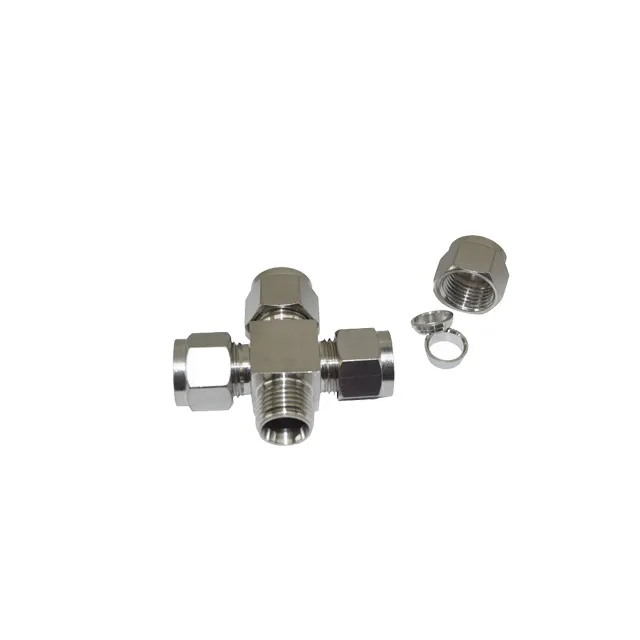

HY stainless steel 304 and 316 double ferrule cross-way pipe fittings have excellent pressure resistance and can withstand pressures from 3000PSI to 6000PSI. They are suitable for various industrial pipeline systems that have high requirements on material corrosion resistance and connection stability, such as chemical, petroleum, pharmaceutical and other industries. They can ensure efficient, safe transmission and precise distribution of pipeline fluids. The precise double ferrule design effectively enhances the sealing and reliability of the connection, providing key connection solutions for the construction of complex pipeline networks.
Product Features
1. Material: Made of stainless steel 304 and 316, it has excellent corrosion resistance and can be used for a long time in harsh chemical environments, humid environments and high salinity environments. It effectively resists oxidation, rust and various chemical erosions, greatly Extends the service life of the product and reduces maintenance costs and replacement frequency.
2. Pressure resistance: It can withstand pressures up to 3000PSI to 6000PSI and performs well in high-pressure pipeline systems. This high pressure resistance ensures the safety and stability of pipelines when transporting liquids or gases, reducing the risk of leakage or rupture due to excessive pressure. It is suitable for a variety of high-pressure industrial application scenarios, such as petrochemical high-pressure fluids Transportation, high-pressure gas distribution, etc.
3. Connection reliability: The double card sleeve design is one of its significant advantages. The double ferrule can provide double sealing guarantee and be tightly fixed on the pipeline to effectively prevent fluid leakage. Even when the pipeline is subject to vibration, temperature changes or pressure fluctuations, it can still maintain a stable and reliable connection, improving the operational reliability of the entire pipeline system and reducing downtime caused by loose connections.
4. Versatility and adaptability: Its standard size specifications and design make it widely adaptable to various types of pipeline systems, whether it is the connection of pipelines of different diameters or the combination with other pipe fittings, valves and other equipment are more convenient. This enables high flexibility in the design and installation process of industrial pipeline projects, can meet diverse engineering needs, and improves product versatility and compatibility.
5. Precision manufacturing: After precise processing and manufacturing technology, the products have high-precision dimensional tolerances and good surface finish. High precision ensures the tightness of
Main Parts
| MODEL NUMBER | TUBE OD (INCH) | DIMENSIONS(INCH) | |||
| T | A | D | E | F.in. | |
| HY-UC-1/8 | 1/8 | 1.76 | 0.50 | 0.09 | 3/8 |
| HY-UC-1/4 | 1/4 | 2.12 | 0.60 | 0.19 | 1/2 |
| HY-UC-5/16 | 5/16 | 2.34 | 0.64 | 0.25 | 5/8 |
| HY-UC-3/8 | 3/8 | 2.40 | 0.66 | 0.28 | 5/8 |
| HY-UC-1/2 | 1/2 | 2.84 | 0.9 | 0.41 | 13/16 |
| HY-UC-3/4 | 3/4 | 3.14 | 0.96 | 0.62 | 11/16 |
| HY-UC-1 | 1 | 3.86 | 1.23 | 0.88 | 13/8 |
| MM | |||||
| HY-UC-3M | 3 | 44.7 | 12.9 | 2.4 | 3/8 |
| HY-UC-6M | 6 | 53.9 | 15.3 | 4.8 | 1/2 |
| HY-UC-8M | 8 | 59.7 | 16.2 | 6.4 | 5/8 |
| HY-UC-10M | 10 | 67.0 | 17.2 | 7.9 | 13/16 |
| HY-UC-12M | 12 | 72.0 | 22.8 | 9.5 | 13/16 |
| HY-UC-16M | 16 | 74.0 | 24.4 | 12.7 | 15/16 |
| HY-UC-18M | 18 | 76.6 | 24.4 | 15.1 | 11/16 |
| HY-UC-20M | 20 | 89.3 | 26 | 15.9 | 13/8 |
| HY-UC-22M | 22 | 89.4 | 26 | 18.3 | 5/8 |
| HY-UC-25M | 25 | 98.3 | 31.3 | 21.8 | 13/8 |
FAQ
Company Feature
• Our company was founded in and has been developing for years. We have improved our various facilities and economic strength with numerous business projects and comprehensive strength.
• HuiYi Valve has experienced R&D and production personnel to conduct product development and design and guarantee the high quality of products.
• We have established extensive trade relations and a huge marketing network at home and abroad. Domestic and foreign customers have come to place order of our products based on their trust for our company.
• While providing customers with quality products, our company also pays attention to customer service. With long-term accumulated service experience, we have been highly recognized by customers and now are well received in the industry.
HuiYi Valve provides customization. Our free samples are waiting for you!
