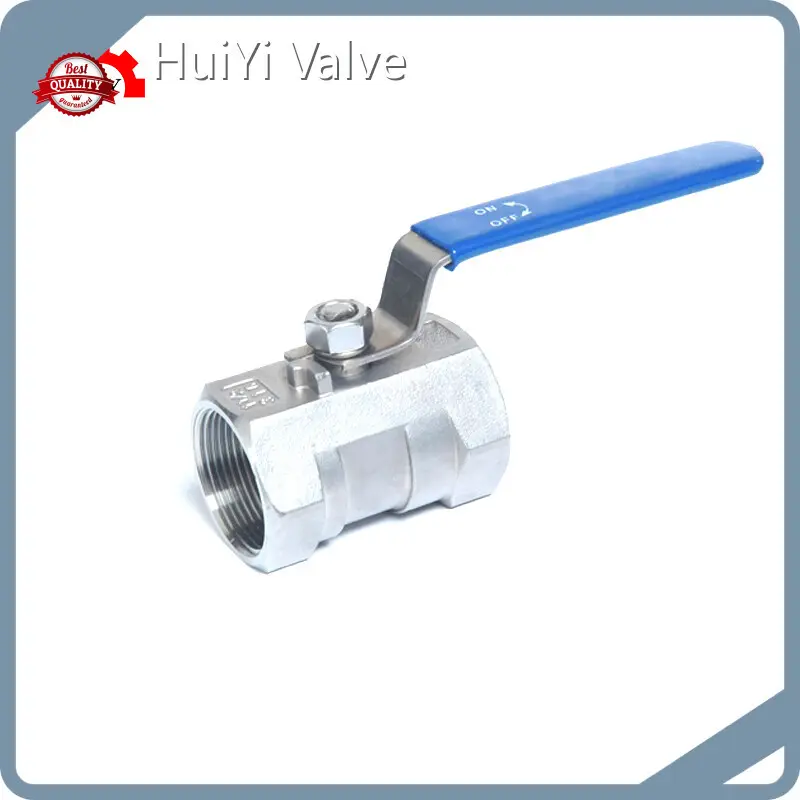

Valves for Sale Normal Temperature by HuiYi Valve

Size:
1/4" to 4"
Working Pressure:
1000 WOG
Working Temperature:
Normal temperature
Model:
Q11F-1PC
Design:
According to ANSI B16.34
Inquiry
Send your inquiry

Product details of the valves for sale


Product Description

The use of high quality materials and innovative designs gives the user of valves for sale excellent performance and long service life. Long-term stable performance of the product in the industry has a great advantage. The product has been widely used both at home and abroad due to its huge economic benefits and great market potential.

Product Description

The 1-piece ball valve is called a 1-piece ball valve because the valve body adopts an integral structure. It is small in appearance and light in weight. The ball core, valve seat, and valve stem are installed from the flow channel on one side of the valve body. Due to the size limitation of the valve body flow channel, the full-bore ball core cannot be installed inside the valve body, so the ball core flow channel of the one-piece ball valve is reduced bore. Circulation capacity is subject to certain restrictions. There are certain advantages in cost. Mainly used for low pressure pipelines.

The valve is made of WCB cast steel, stainless steel CF8, CF8M and other materials.

Wide Applications: Widely used in mechanical equipment, industrial equipment, water supply and drainage equipment.

Dimension

Size

∅ A(mm)

C(mm)

E(mm)

D(mm)

1/4”

5

39

77

39

3/8”

7

44

77

39

1/2”

9.2

58.5

88

44

3/4”

12.8

59

88

48

1”

15

71

109

57

1-1/4”

20

78

109

59

1-1/2”

25

83

135

70

2”

32

100

135

74

Product details

图片1 (5)
图片1 (5)
图片2 (4)
图片2 (4)
图片3 (5)
图片3 (5)

Main Parts

NO.

PART NAME

MATERIAL

1

Seat

PTFE

2

Ball

CF8/CF8M

3

Body

CF8/CF8M

4

Ball seat

PTFE

5

Locking Device

304

6

Handle

304

7

Handle Cover

Plastic

8

Stem Nut

316/304

9

Stem

316/304

10

Stem Washer

304

11

Washer

304

12

Stem Packing

PTFE

13

Thrust Washer

PTFE

14

Plug

CF8/CF8M
