Product details of the valves distributor
Product Information
The unique outline feature is one of the most important strengths for valves distributor. The perfect quality control system ensures that customers' demands on quality are fully met. With so many advantages, the product has high commercial value.
Product details

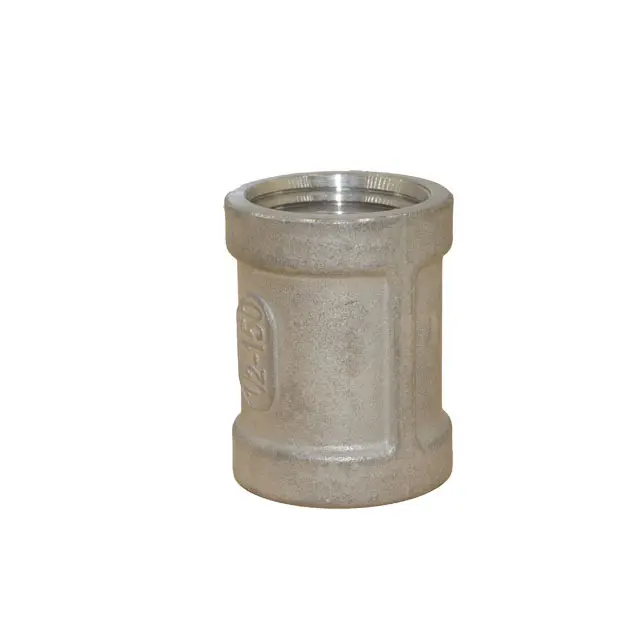

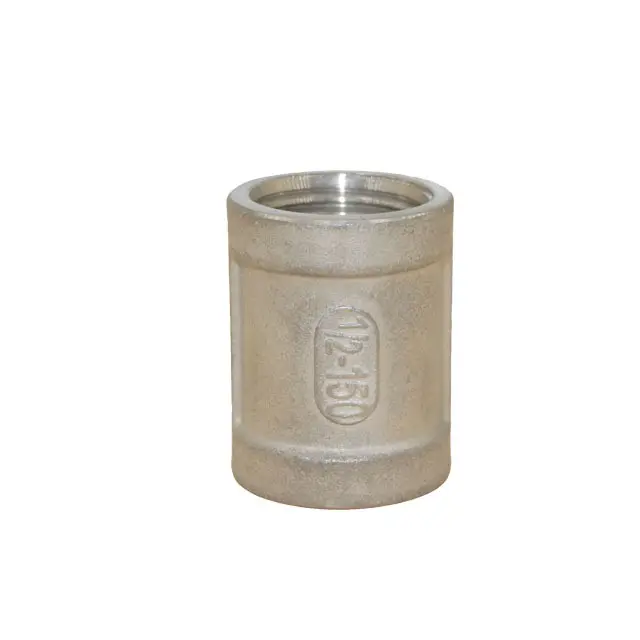

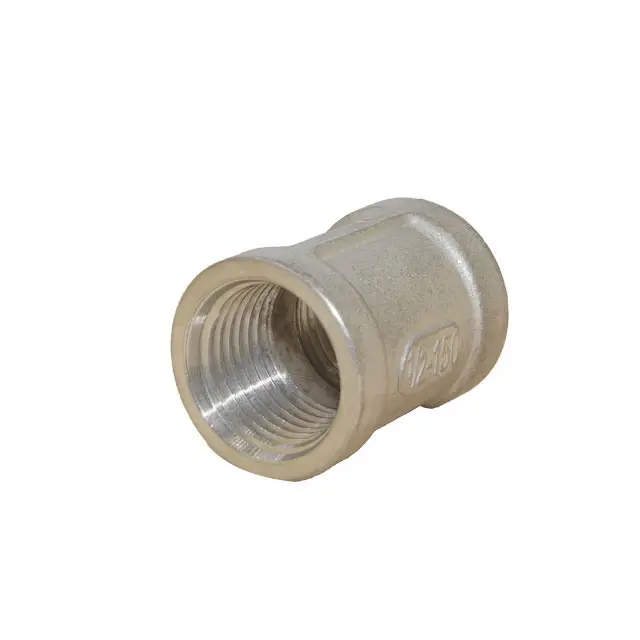

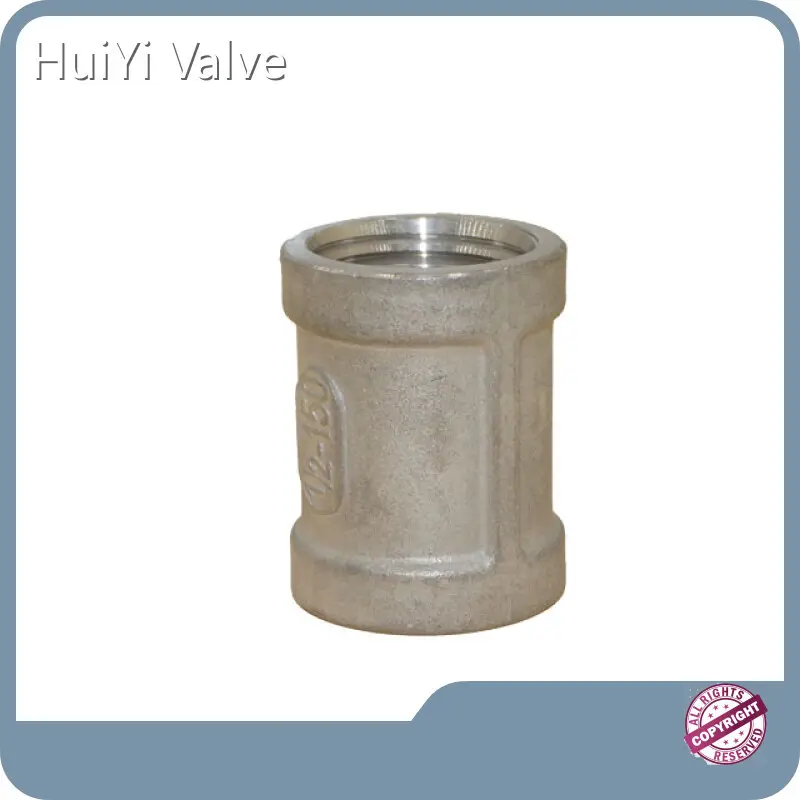

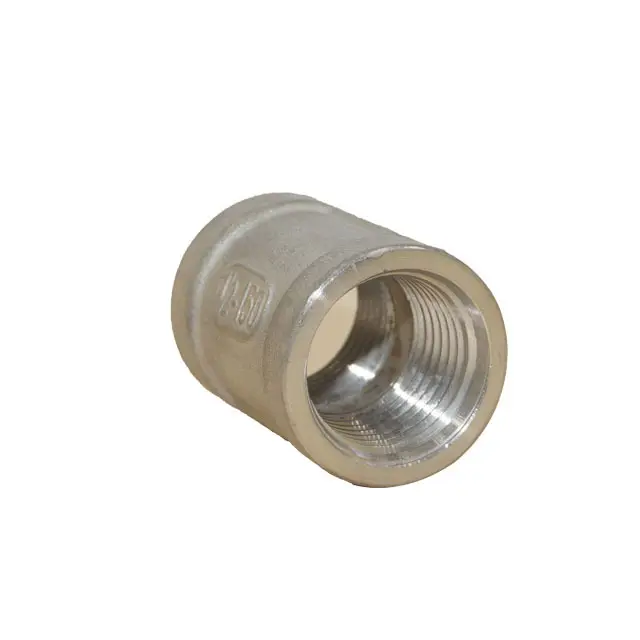

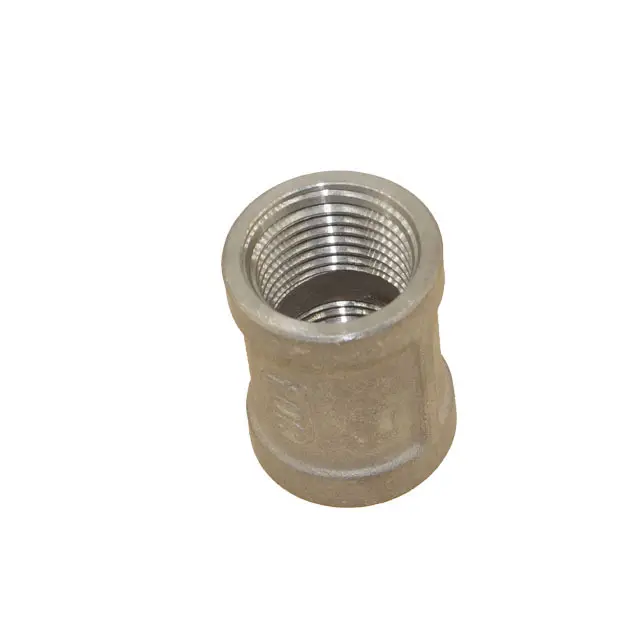

HY 150LB water ASME B16.11 standard NPT female couplings are a key component for water piping systems. Manufactured in accordance with ASME B16.11 standard, it ensures high quality and versatility, and can be accurately adapted to various types of fittings and valves in accordance with this standard. Its 150LB pressure rating can meet the pressure requirements of general water systems, whether it is municipal water supply pipelines or industrial water reuse systems in the low-pressure part of the system, can operate reliably.NPT female thread design provides good sealing performance, effectively preventing leakage of water in the process of water transmission, to protect the stability and safety of the entire water piping system, is to build an efficient and stable water transportation network indispensable components of quality. It is an indispensable component for building an efficient and stable water transportation network.
Product Overview
1. Standard compliance advantage:
● The products are manufactured in strict compliance with ASME B16.11 standard, which is widely recognized and adopted in the international industrial field. This means that the products comply with industry standards in terms of dimensional accuracy, material requirements, performance indicators, etc., and can be seamlessly connected with a large number of equipment and fittings that follow the same standard, which guarantees the compatibility and coordination of the entire piping system, and can be easily incorporated into both the integration and installation of newly built projects and the maintenance and replacement of existing systems, thus reducing the adaptation problems and potential risks due to the differences in standards.
2. Pressure adaptation advantage:
● 150LB pressure carrying capacity, accurately positioned in the water system common pressure range. For municipal water supply, general industrial water circulation and other common water transmission scenarios, it can stably withstand the working pressure, and will not cause structural damage or risk of leakage due to high pressure, nor will it cause unnecessary cost increase due to high pressure level. While ensuring safe and reliable operation, it achieves an optimal balance between performance and cost, providing an economical and practical connection solution for all types of water projects.
3. Thread sealing advantage:
● NPT female thread design has excellent self-sealing characteristics. Its tapered thread structure gradually squeezes the sealing surface during tightening, forming a tight fit and effectively preventing water leakage. Compared to some other thread forms, NPT threads exhibit excellent sealing reliability in water transfer, reducing the need for additional sealing materials (such as sealant tape or sealant), simplifying the installation process, and reducing the likelihood of leakage due to deterioration of sealing materials or improper installation, resulting in lower long-term maintenance costs and increased system stability.
4. Material and durability advantages:
● Built with high-quality materials with good water corrosion resistance and mechanical strength. In long-term contact with water, it can effectively resist the erosion caused by impurities, microorganisms and trace chemicals that may exist in the water, preventing the joints from rust, corrosion caused by structural deterioration and performance degradation. The sturdy material structure ensures that the joints can maintain stable connection performance under various working conditions, such as temperature changes, water impact, etc., which prolongs the service life of the product, reduces the frequency of replacement, and provides a strong support for the long-term stable operation of the water pipeline system.
Dimension
SIZE(INCH) | D(MM) | D(MM) | B(MM) | e(MM) | A(MM) |
1/8” | 13.9 | 12.2 | 5.5 | 2.5 | 25 |
1/4” | 16.9 | 14.9 | 6 | 2.5 | 25 |
3/8” | 20.2 | 18.4 | 6 | 2.5 | 30 |
1/2” | 26.9 | 24.9 | 6 | 3 | 35 |
3/4” | 31.9 | 29.9 | 7 | 3 | 39 |
1" | 39.9 | 37.9 | 8 | 3 | 44 |
1-1/4” | 48.9 | 46.4 | 9 | 3.5 | 50 |
1-1/2” | 55.4 | 52.9 | 10 | 3.5 | 54 |
2" | 67.4 | 64.9 | 11 | 4 | 63 |
2-1/2” | 84.5 | 82 | 14 | 4 | 71.5 |
3" | 98.5 | 95.5 | 15 | 4.5 | 77 |
4" | 124 | 121 | 17 | 5 | 86 |
