Valves Distributor Normal Temperature by HuiYi Valve
Product details of the valves distributor
Product Introduction
HuiYi Valve valves distributor is fabricated using the sophisticated production technology in complete compliance with the industry standards. The product achieves the optimum balance of cost and performance. The product is warmly welcomed and widely applied by our global customers thanks to its remarkable advantages and high economic benefits.
Product details
Product Overview

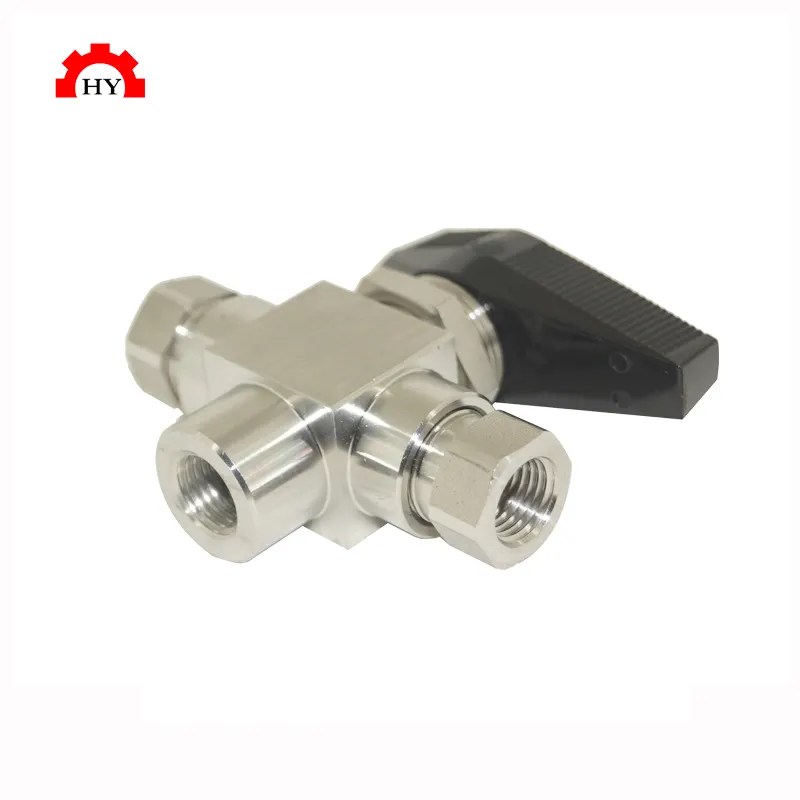

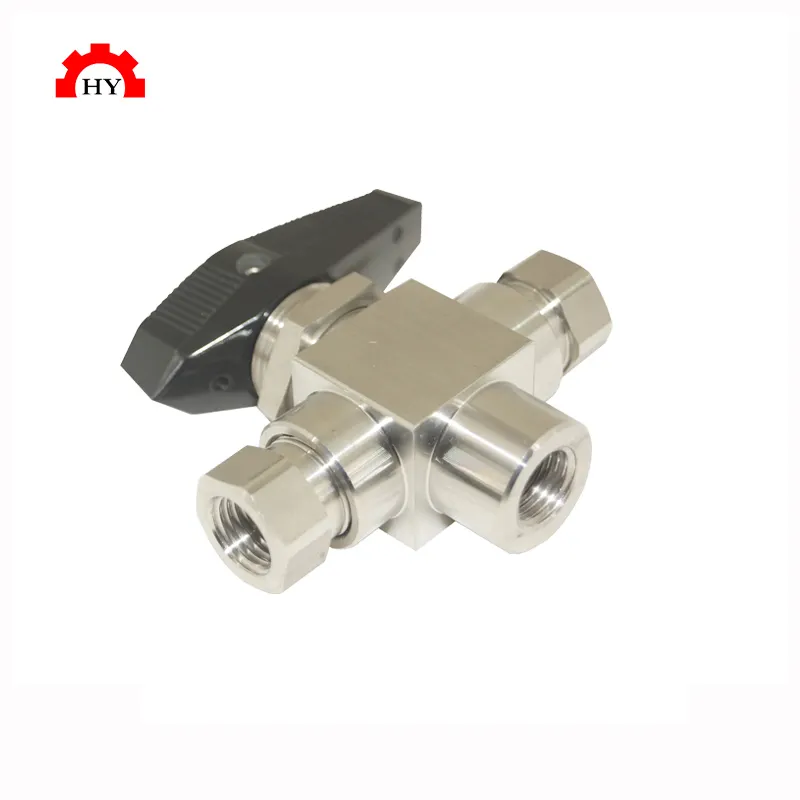

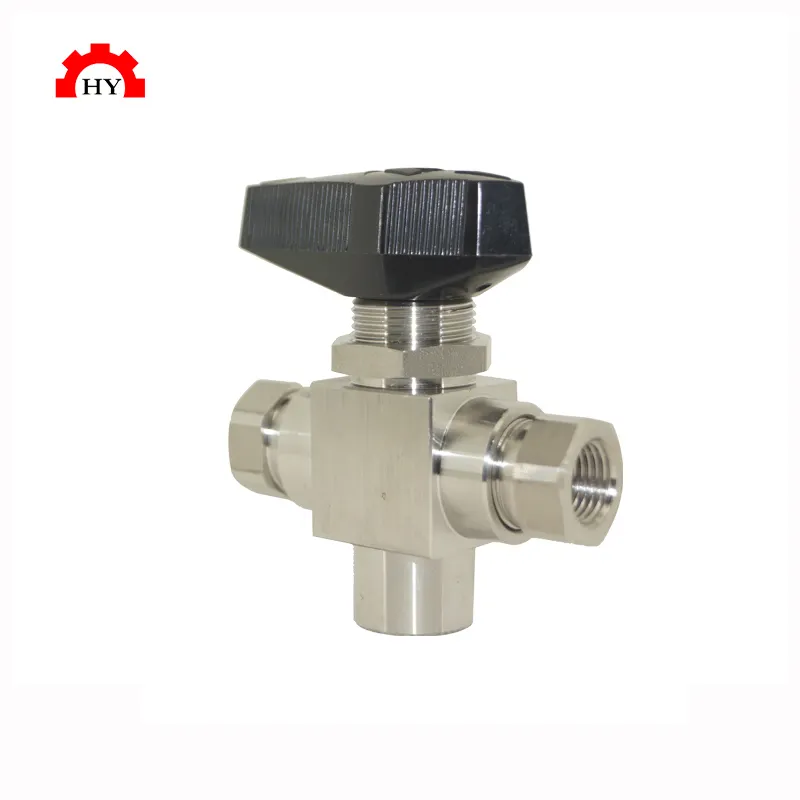

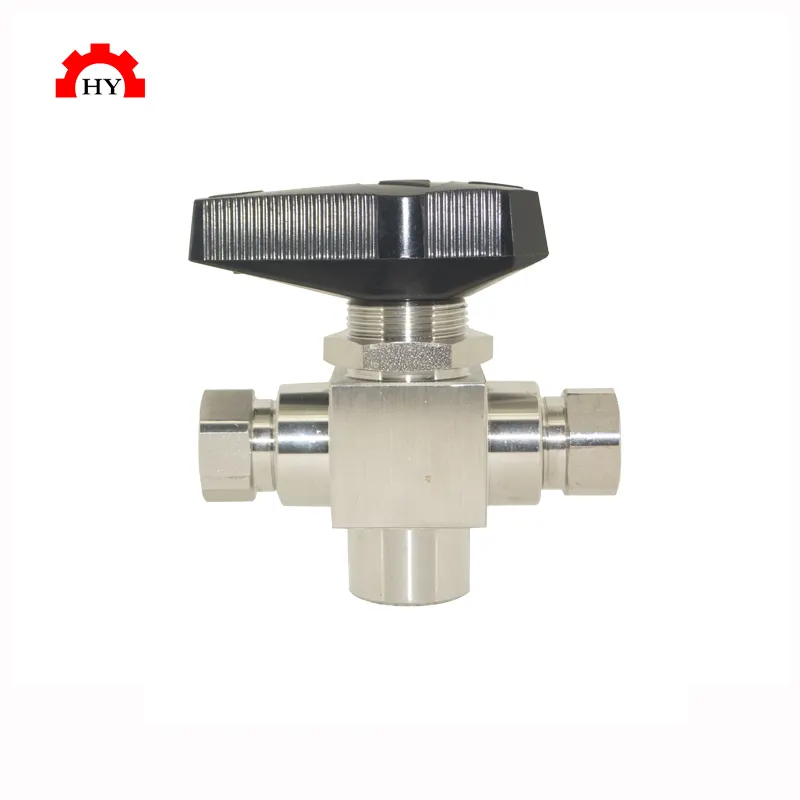

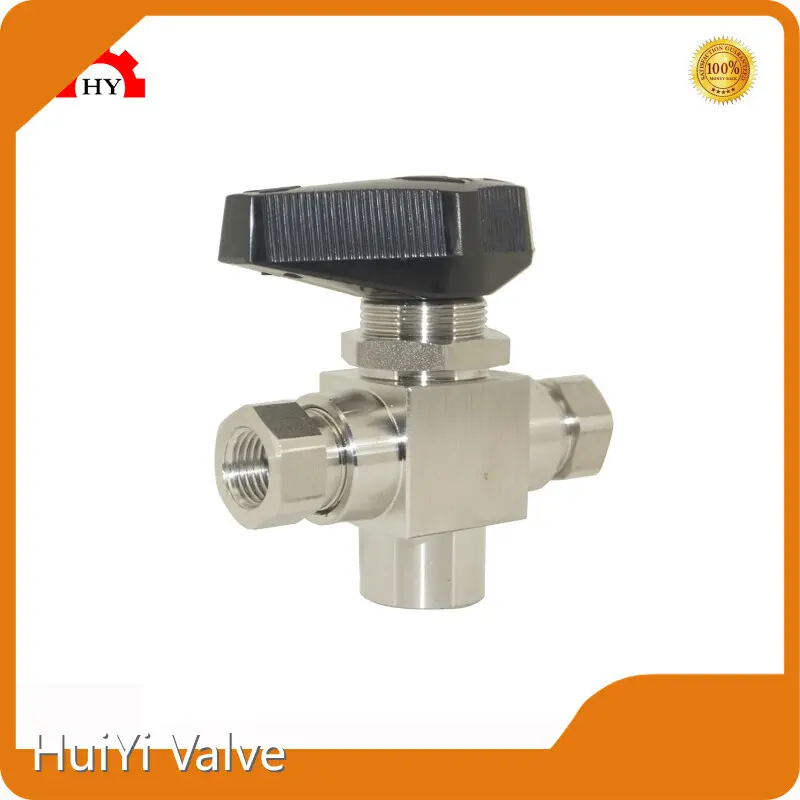

Discover the superior performance of the HY brand - 6000psi high-pressure stainless steel bearing ball valve, available with 1/2 NPT connection, suitable for two-way and three-way configurations. This industrial instrument ball valve is designed for the most demanding fluid control environments. Here are the main highlights of the product:
●Ultra-high strength: withstands pressures up to 6000psi, suitable for high-pressure industrial applications.
●Material guarantee: Made of high-quality stainless steel to ensure corrosion resistance and long-term durability.
●Precision connection: 1/2 NPT threaded connection, providing a tight and reliable installation.
●Versatile design: Provides two-way and three-way options, flexible to adapt to different piping systems.
●Bearing ball valve: The unique bearing design reduces ball friction and increases operating life.
HY stainless steel bearing ball valve is an ideal choice for industries such as oil, gas, chemicals, and pharmaceuticals, providing precise and efficient solutions for your fluid control needs. Choose HY to ensure your industrial processes are smooth and worry-free.
Dimension
| Connection | Ordering Number | Orifice (mm) | Cv | Size(mm) | ||||||||
| Inlet/outlet | Size | A | B | C | D | F | G | H | I | |||
| Female NPT | 1/8” | Q14SAF-1/8 | 2.6 | 0.15 | 20.6 | 41.2 | 37.3 | 30.0 | 8.6 | 4.4 | 15.1 | 19.9 |
| 1/4” | Q14SAF-1/4 | 4.2 | 0.75 | 24.5 | 49.0 | 41.6 | 40.0 | 11.2 | 4.8 | 19.8 | 22.2 | |
| Q14SAF1-1/4 | 7.0 | 1.7 | 31.8 | 63.6 | 52.6 | 50.8 | 14.2 | 9.7 | 28.6 | 31.8 | ||
| 3/8" | Q14SAF1-3/8 | 7.0 | 1.5 | 31.8 | 63.6 | 52.6 | 50.8 | 14.2 | 9.7 | 28.6 | 31.8 | |
| 1/2” | Q14SAF-1/2 | 10.0 | 3.5 | 39.6 | 79.2 | 61.7 | 76.2 | 17.5 | 9.7 | 38.1 | 39.6 | |
●Working Pressure:6000psi(413 bar)
●Working temperature:-53 degree C to 148 degree C(-65 degree F to 300 degree F)
●Material: stainless steel 316,brass and other specified material by customer
●Valve Seat: PTFE, RPTFE, UHMWPE
●Flow direction: straight type,3 way, 4 way,5 way,6 way and 7 way
●Connection Style: metric ferrules , inch metric , NPT thread, ISO/BSP thread
●Size: 1/8” to 1”
●Thread: NPT,BSPT,BSPP
Main Parts
| No. | Part Name | Material |
| 1 | Handle | Plastic |
| 2 | Stem Nut | 316/304 |
| 3 | Stem | 304 |
| 4 | Body | 316/304 |
| 5 | Ball | 316/304 |
| 6 | Ball Seat | PTFE |
| 7 | Stem Packing | PTFE |
