Company Advantages
· HuiYi Valve valves distributor is entirely made of well-selected materials and reliable components.
· With the quality certification, the product is of higher performance than other products.
· This product has outstanding characteristics and is consistently praised by the customers.
product description

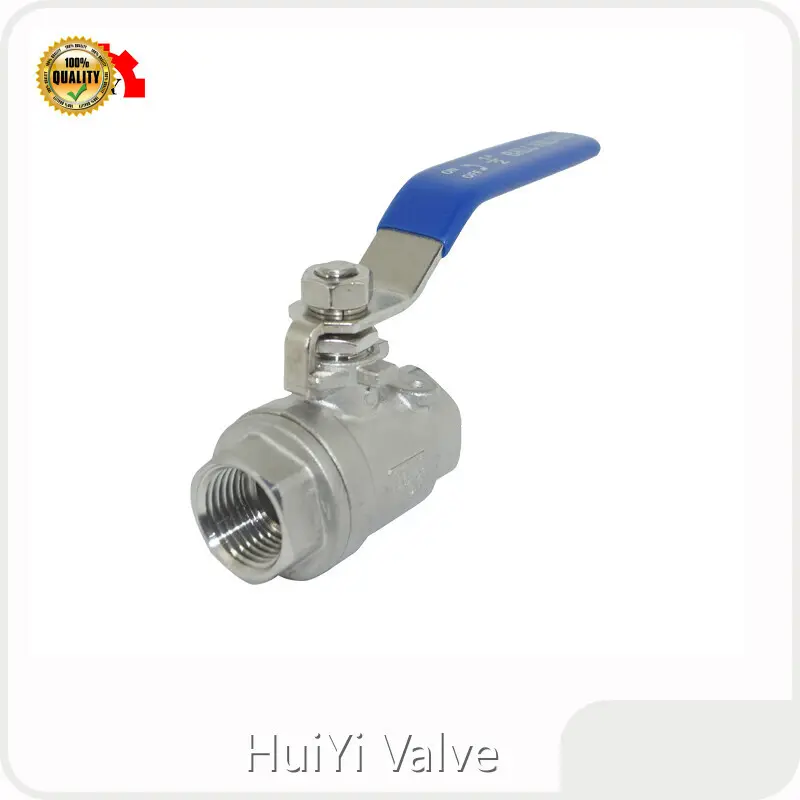

The 2-piece ball valve is composed of the main valve body and the auxiliary valve body, so it is called a 2-piece ball valve. It is a commonly used ball valve. After the ball core, valve seat and valve stem are installed into the main valve body, the auxiliary valve body is connected to the main valve body through threads or bolts. Its spherical core flow channel is full bore, with small flow resistance and large flow capacity.
The 2-piece ball valve has internal thread connection, external thread connection, and internal and external thread connection. Threads usually use 55° tapered pipe threads and 60° tapered pipe threads, which have good sealing properties.
Stainless steel Full Port Ball Valve, double sealing system, inline valve is used to connect two pipes in the same direction to control the flow of various types of fluids, such as air, water, steam, various corrosive media, mud, oil, liquid metals, noble gas applications and radioactive media.
Product parameters
|
Dimension |
||||
|
Size |
∅ d(mm) |
L(mm) |
H(mm) |
W(mm) |
|
1/4” |
9.2 |
54 |
54 |
110 |
|
3/8” |
12.8 |
54 |
55 |
110 |
|
1/2” |
15 |
57 |
58 |
115 |
|
3/4” |
20 |
68 |
61 |
115 |
|
1” |
25 |
80 |
77 |
128 |
|
1-1/4” |
32 |
91 |
81 |
128 |
|
1-1/2” |
38 |
103 |
90 |
155 |
|
2” |
50 |
124 |
108 |
155 |
|
2-1/2” |
65 |
160 |
132 |
230 |
|
3” |
80 |
185 |
145 |
230 |
|
4” |
100 |
224.5 |
185 |
335 |
|
Main Parts |
||
|
NO. |
Part Name |
Material |
|
1 |
Handle Cover |
Plastic |
|
2 |
Body |
CF8/CF8M |
|
3 |
Ball Seat |
PTFE |
|
4 |
Ball |
CF8/CF8M |
|
5 |
Cap |
CF8/CF8M |
|
6 |
Joint Gasket |
PTFE |
|
7 |
Thrust Washer |
PTFE |
|
8 |
Stem Packing |
PTFE |
|
9 |
Gland Nut |
304 |
|
10 |
Stem Washer |
304 |
|
11 |
Stem |
316/304 |
|
12 |
Stem Nut |
304 |
|
13 |
Locking Device |
304 |
|
14 |
Handle |
304 |
Product details
Company Features
· With rich factory experience, Wenzhou Huiyi Valve Technology Co.,Ltd keeps leader status in the industry of valves distributor.
· We have forged long-lasting relationships with organizations, corporations, and even individuals in China and around the world. Our business is thriving as a result of recommendations from these customers.
· Wenzhou Huiyi Valve Technology Co.,Ltd aims to lead valves distributor industry. Welcome to visit our factory!
Product Details
Our valves distributor are processed by the latest technology in the industry, and they perform better in the following details.
