Product details of the valves distributor
Product Description
Body frame optimum design and advanced technology application can be seen from our valves distributor. This product has long service life and stable performance. The obvious economic benefits of the product are well-received by customers.
Product Description

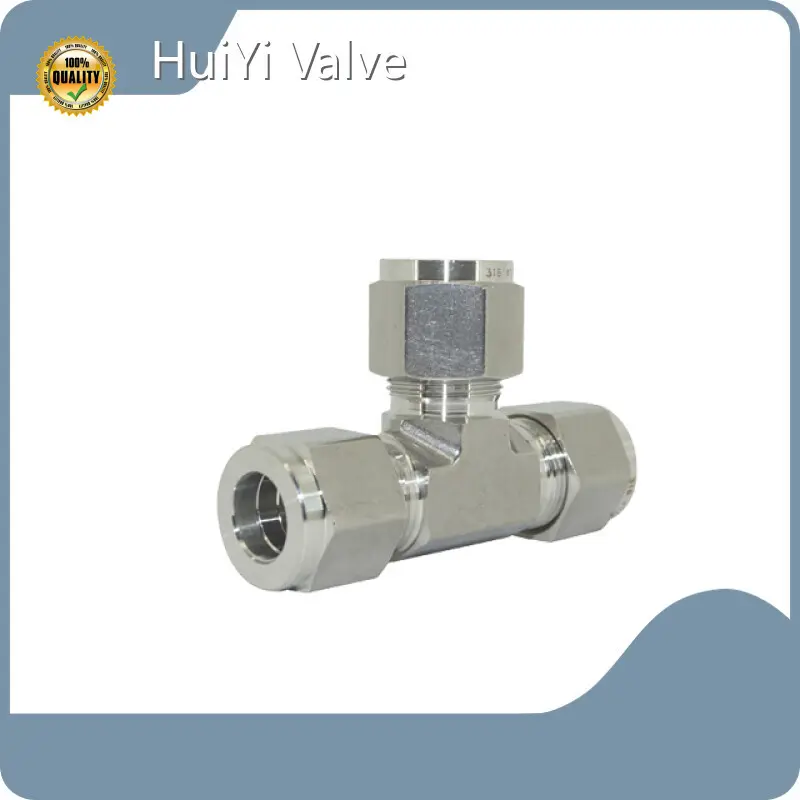

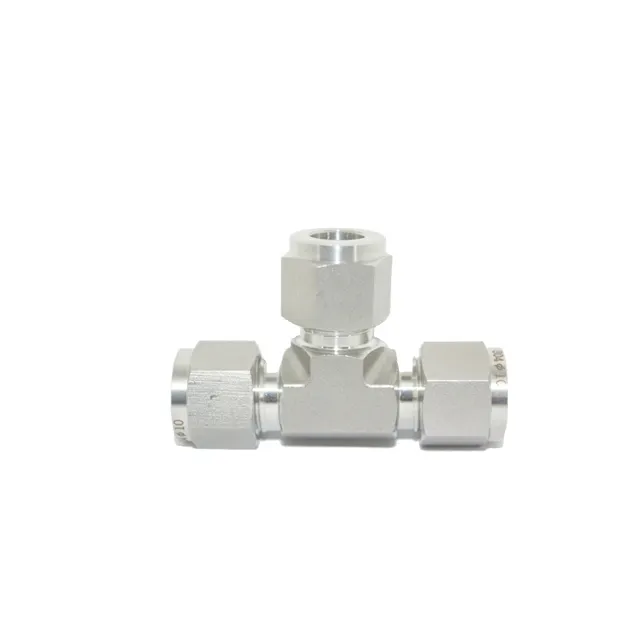

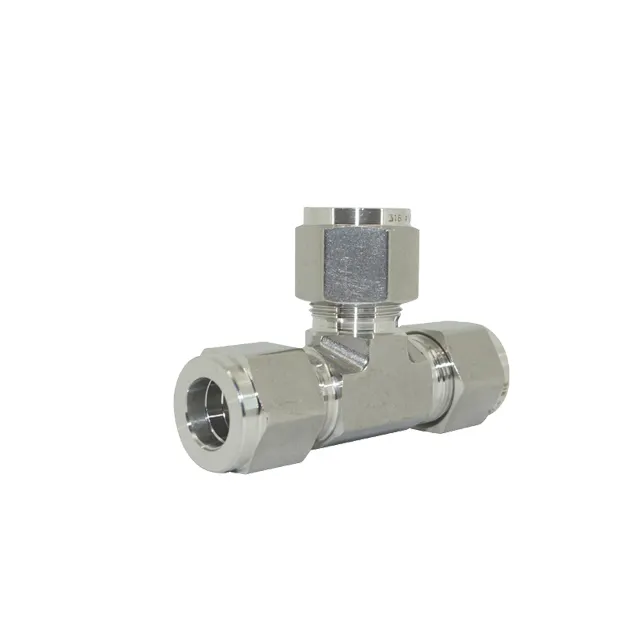

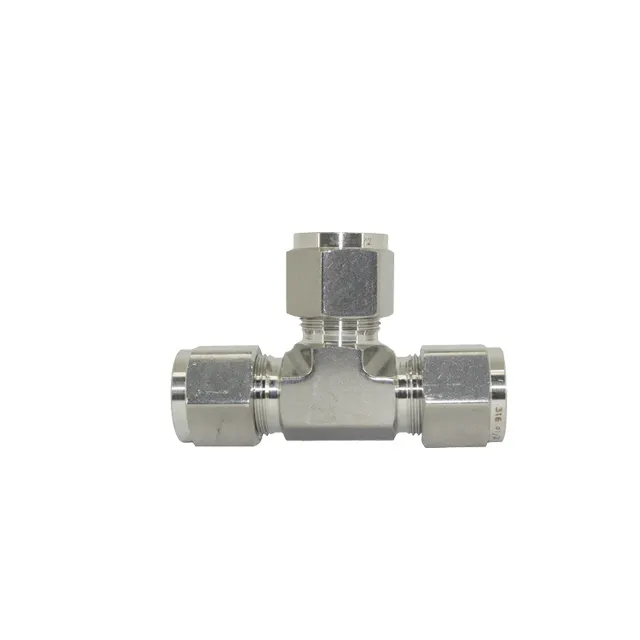

This fitting is made of 304 stainless steel for higher strength and great corrosion resistance. This fitting has hex nut construction for tighter, leak-free connections. It is compatible with stainless steel, copper, rigid and semi-rigid plastic tubing, but is not recommended for soft tubing. It is suitable for use in chemical, petroleum, power generation, laboratory, and medical device plants.

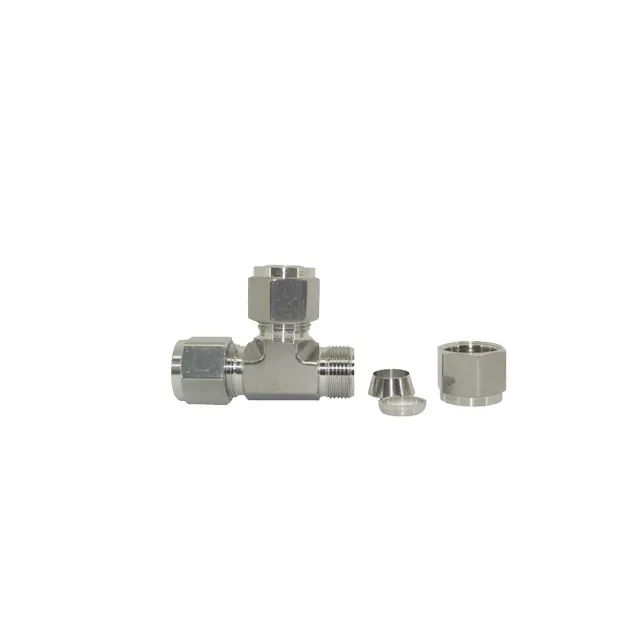

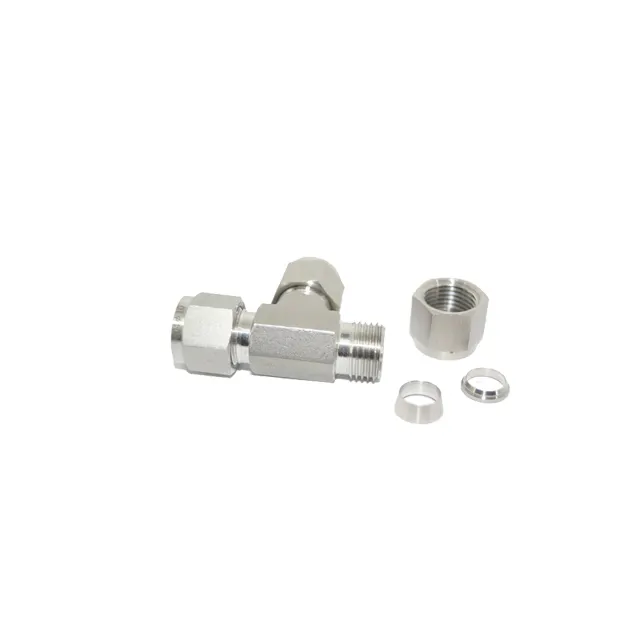

This coupling is for a fixed connection between tubing and pipe made of stainless steel. Twin ferrule compression fitting connects to tubing on end for a leak-resistant seal in high-pressure, high-vacuum, and high-vibration applications When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).
Dimension
MODEL NUMBER |
TUBE OD |
DIMENSIONSINCH |
||||
T,INCH |
A |
Ax |
D |
E |
F(INCH) |
|
HY-UT-1/16 |
1/16 |
1.40 |
0.70 |
0.34 |
0.05 |
3/8 |
HY-UT-1/8 |
1/8 |
1.76 |
0.88 |
0.50 |
0.09 |
3/8 |
HY-UT-3/16 |
3/16 |
1.92 |
0.96 |
0.54 |
0.12 |
7/16 |
HY-UT-1/4 |
1/4 |
2.12 |
1.06 |
0.60 |
0.19 |
1/2 |
HY-UT-5/16 |
5/16 |
2.34 |
1.17 |
0.64 |
0.25 |
5/8 |
HY-UT-3/8 |
3/8 |
2.40 |
1.20 |
0.66 |
0.28 |
5/8 |
HY-UT-1/2 |
1/2 |
2.84 |
1.42 |
0.90 |
0.41 |
13/16 |
HY-UT-5/8 |
5/8 |
3.06 |
1.53 |
0.96 |
0.50 |
1 |
HY-UT-3/4 |
3/4 |
3.14 |
1.57 |
0.96 |
0.62 |
11/16 |
HY-UT-7/8 |
7/8 |
3.52 |
1.76 |
1.02 |
0.72 |
13/8 |
HY-UT-1 |
1 |
3.86 |
1.93 |
1.23 |
0.88 |
13/8 |
Product details
Company Feature
• It has been years since our company was built in With the experience and knowledge accumulated in these years, we regard the problem from the perspective of development, seek opportunities through challenges, and turn the crisis into a turning point. Through constant struggle and breakthrough, we have won a number of honors and have been highly recognized and trusted by the industry, the market and consumers.
• HuiYi Valve's gain a relatively large market share in China. They are also exported to Africa, Southeast Asia, and other countries and regions.
• Our company always implements the concept of 'there is nothing trivial about the customer'. According to customers' feedback, we constantly improve our service system, and efficiently handle with their needs and complaints. Based on this, we can create a healthy and excellent service structure.
HuiYi Valve has a stock for with regular specifications. We produce other products in bulk according to customers' orders. If you have any special needs, please contact us. You can tell us your product information, so we are sure about the specification.
