product description

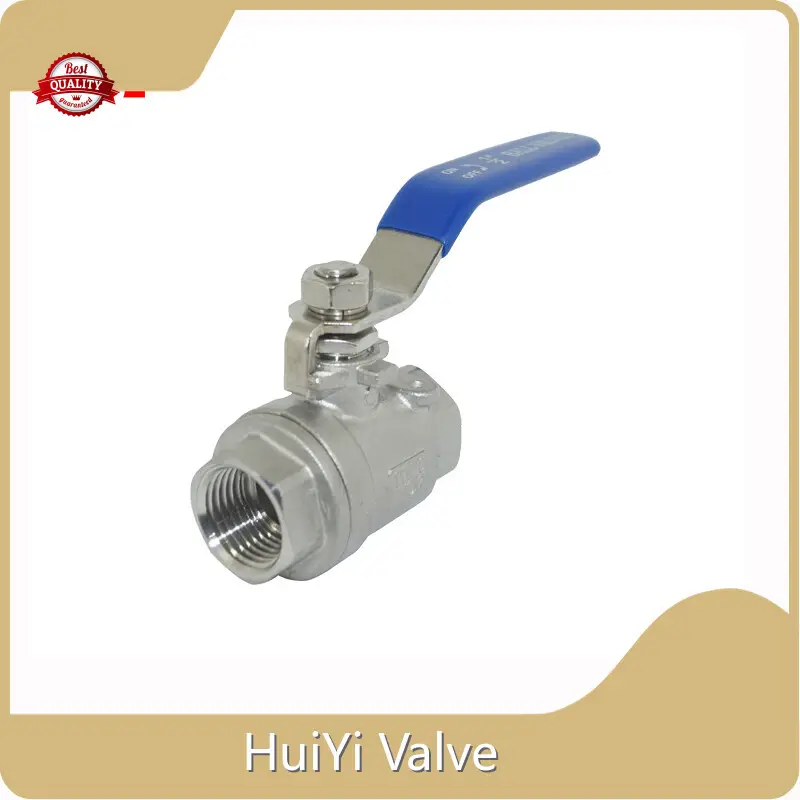

The 2-piece ball valve is composed of the main valve body and the auxiliary valve body, so it is called a 2-piece ball valve. It is a commonly used ball valve. After the ball core, valve seat and valve stem are installed into the main valve body, the auxiliary valve body is connected to the main valve body through threads or bolts. Its spherical core flow channel is full bore, with small flow resistance and large flow capacity.
The 2-piece ball valve has internal thread connection, external thread connection, and internal and external thread connection. Threads usually use 55° tapered pipe threads and 60° tapered pipe threads, which have good sealing properties.
Stainless steel Full Port Ball Valve, double sealing system, inline valve is used to connect two pipes in the same direction to control the flow of various types of fluids, such as air, water, steam, various corrosive media, mud, oil, liquid metals, noble gas applications and radioactive media.
Product parameters
Dimension |
||||
Size |
∅ d(mm) |
L(mm) |
H(mm) |
W(mm) |
1/4” |
9.2 |
54 |
54 |
110 |
3/8” |
12.8 |
54 |
55 |
110 |
1/2” |
15 |
57 |
58 |
115 |
3/4” |
20 |
68 |
61 |
115 |
1” |
25 |
80 |
77 |
128 |
1-1/4” |
32 |
91 |
81 |
128 |
1-1/2” |
38 |
103 |
90 |
155 |
2” |
50 |
124 |
108 |
155 |
2-1/2” |
65 |
160 |
132 |
230 |
3” |
80 |
185 |
145 |
230 |
4” |
100 |
224.5 |
185 |
335 |
Main Parts |
||
NO. |
Part Name |
Material |
1 |
Handle Cover |
Plastic |
2 |
Body |
CF8/CF8M |
3 |
Ball Seat |
PTFE |
4 |
Ball |
CF8/CF8M |
5 |
Cap |
CF8/CF8M |
6 |
Joint Gasket |
PTFE |
7 |
Thrust Washer |
PTFE |
8 |
Stem Packing |
PTFE |
9 |
Gland Nut |
304 |
10 |
Stem Washer |
304 |
11 |
Stem |
316/304 |
12 |
Stem Nut |
304 |
13 |
Locking Device |
304 |
14 |
Handle |
304 |
Product details
Company Advantages
· Every piece of HuiYi Valve valves distributor is born in a scientific and orderly production process.
· Our quality experts test this product for high performance.
· This product is at feasible market prices to meet the specific requirements of customers.
Company Features
· HuiYi Valve has been specializing in producing valves distributor for years of experience.
· Our company has a strong and experienced technical development team. The team is able to offer diverse product solutions on customization, development, and product upgrade.
· At Wenzhou Huiyi Valve Technology Co.,Ltd, our goal is to excel as a valves distributor provider. Contact!
Application of the Product
The valves distributor produced by HuiYi Valve can be used in many fields.
In the early stage, we conduct a communication survey to gain an in-depth understanding of the customer's problems. Therefore, we can develop solutions that best suit the customers based on the results of the communication survey.
