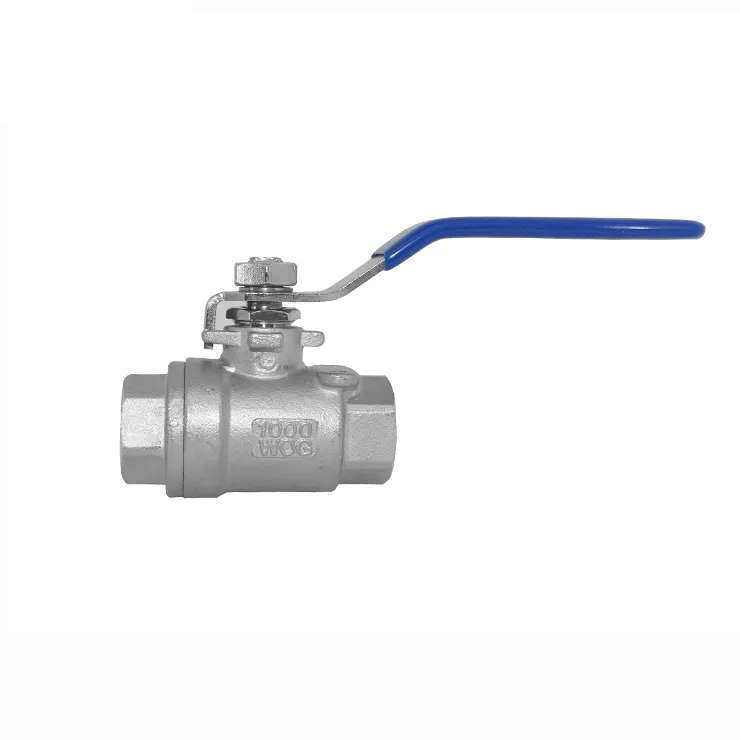

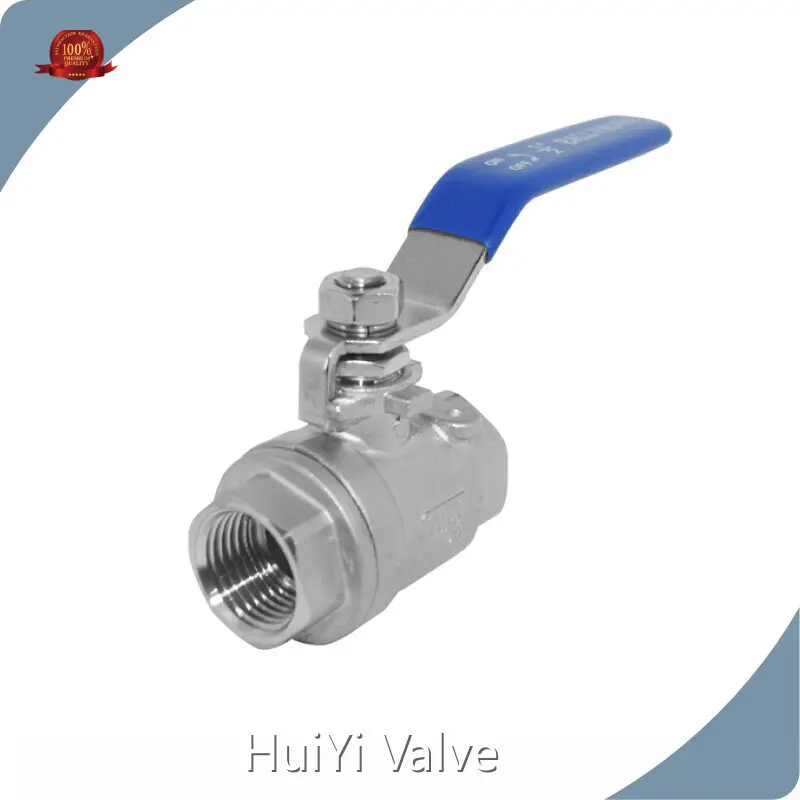

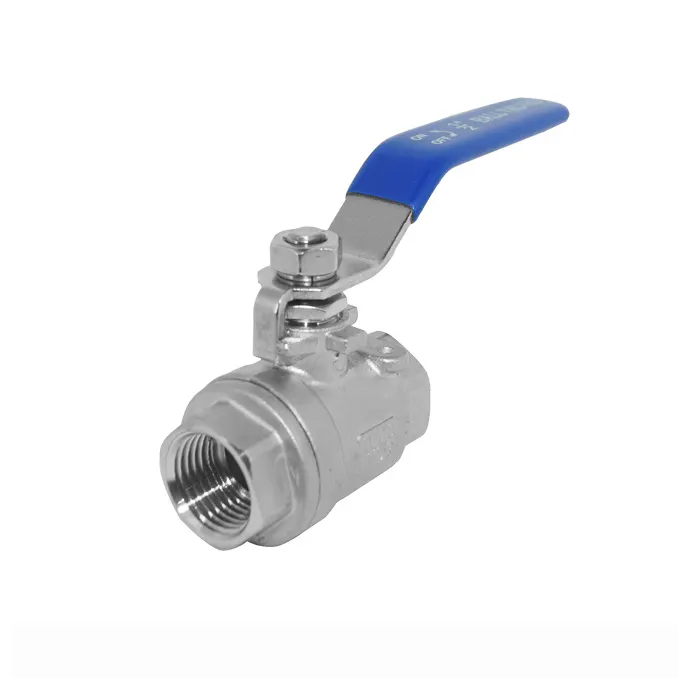

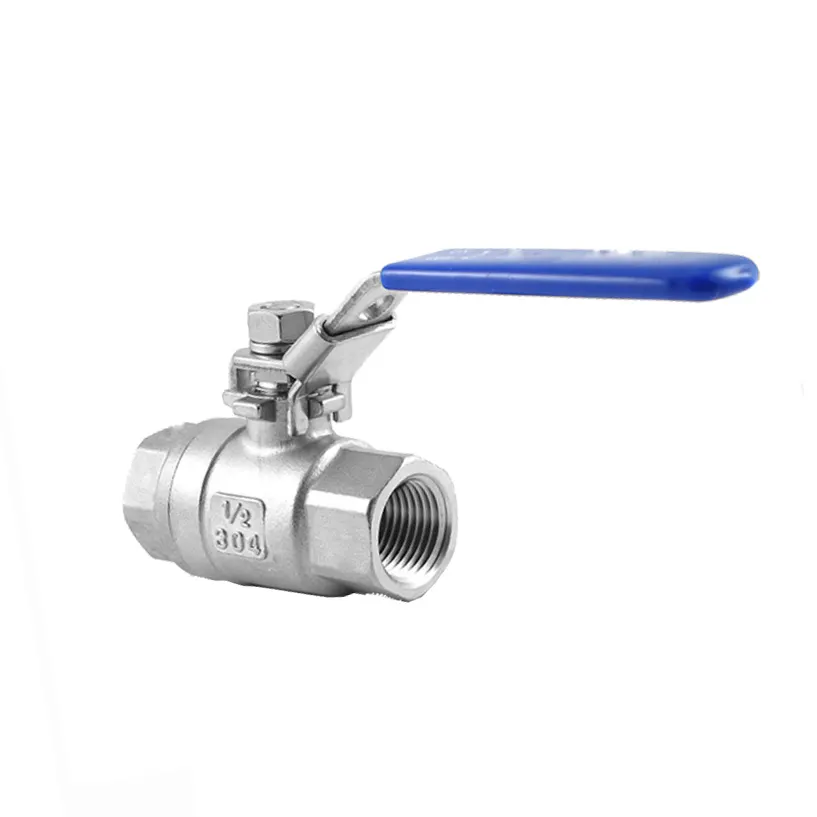

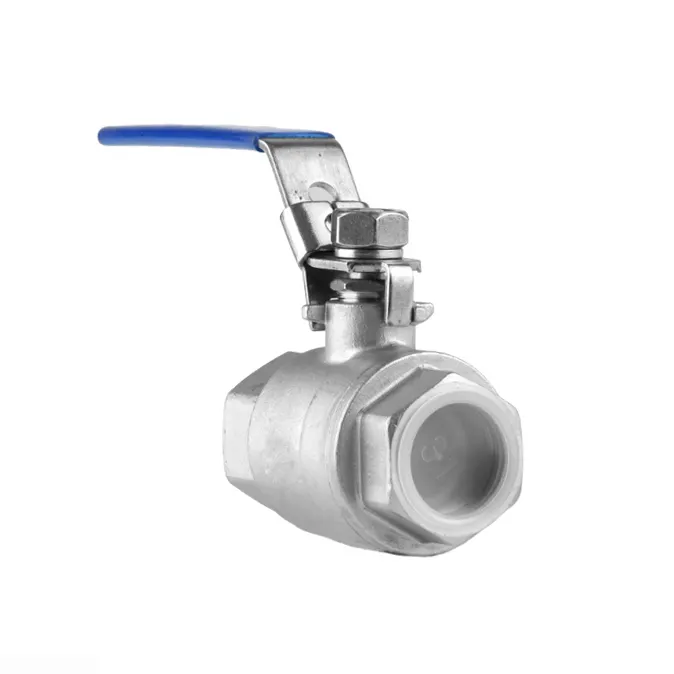

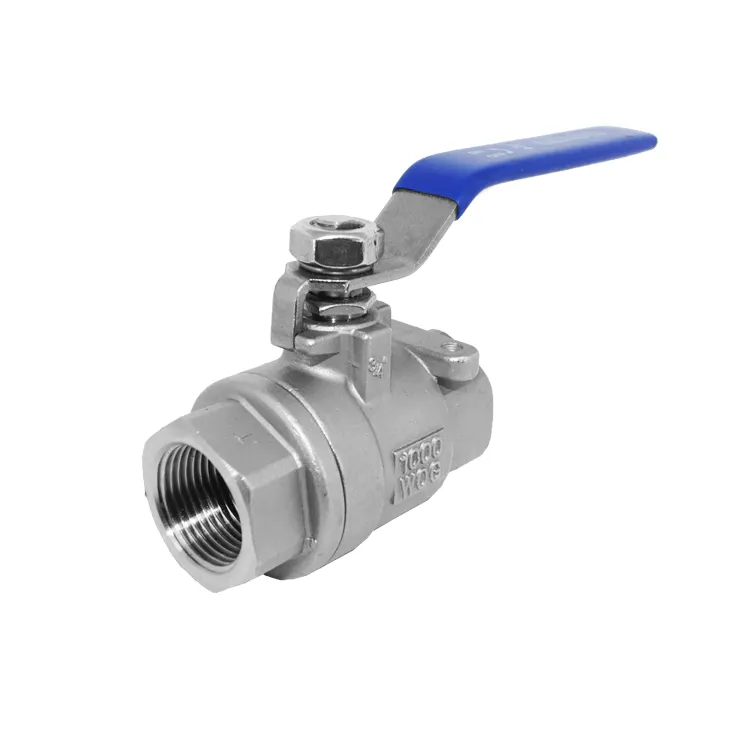

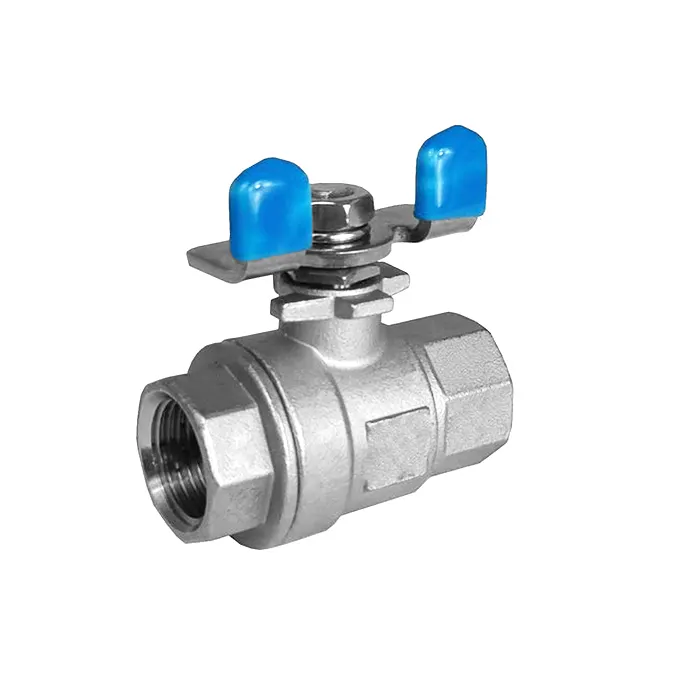

Product details of the valves and fittings
Product Overview
HuiYi Valve valves and fittings is fabricated with excellent production and perfect testing methods. As a result of the effort, this product meets the strictest performance criteria. Innovation gives an inexhaustible force to the development of valves and fittings.
Product Description
The following is the section for presenting details of the valves and fittings.
Dimension
Size |
∅ d(mm) |
L(mm) |
H(mm) |
W(mm) |
1/4” |
9.2 |
54 |
54 |
110 |
3/8” |
12.8 |
54 |
55 |
110 |
1/2” |
15 |
57 |
58 |
115 |
3/4” |
20 |
68 |
61 |
115 |
1” |
25 |
80 |
77 |
128 |
1-1/4” |
32 |
91 |
81 |
128 |
1-1/2” |
38 |
103 |
90 |
155 |
2” |
50 |
124 |
108 |
155 |
2-1/2” |
65 |
160 |
132 |
230 |
3” |
80 |
185 |
145 |
230 |
4” |
100 |
224.5 |
185 |
335 |
Product details
Main Parts
NO. |
Part Name |
Material |
1 |
Handle Cover |
Plastic |
2 |
Body |
CF8/CF8M |
3 |
Ball Seat |
PTFE |
4 |
Ball |
CF8/CF8M |
5 |
Cap |
CF8/CF8M |
6 |
Joint Gasket |
PTFE |
7 |
Thrust Washer |
PTFE |
8 |
Stem Packing |
PTFE |
9 |
Gland Nut |
304 |
10 |
Stem Washer |
304 |
11 |
Stem |
316/304 |
12 |
Stem Nut |
304 |
13 |
Locking Device |
304 |
14 |
Handle |
304 |
Company Information
We are a leader in the market of offering valves and fittings. Our company has seasoned management. They are less likely to get rattled and they can always deal with adverse circumstances and make the best possible decision for production. HuiYi Valve will continually create new standards with our innovative results. Get info!
Our products are of reliable quality, with great cost performance and you can purchase them with confidence. If you are in need, please contact us for business discussion.
