Focus on wholesale valves and pipe fittings, quality is our culture.

Valves and Fittings Normal Temperature by HuiYi Valve-1 1

Valves and Fittings Normal Temperature by HuiYi Valve-1 2

Valves and Fittings Normal Temperature by HuiYi Valve-1 3

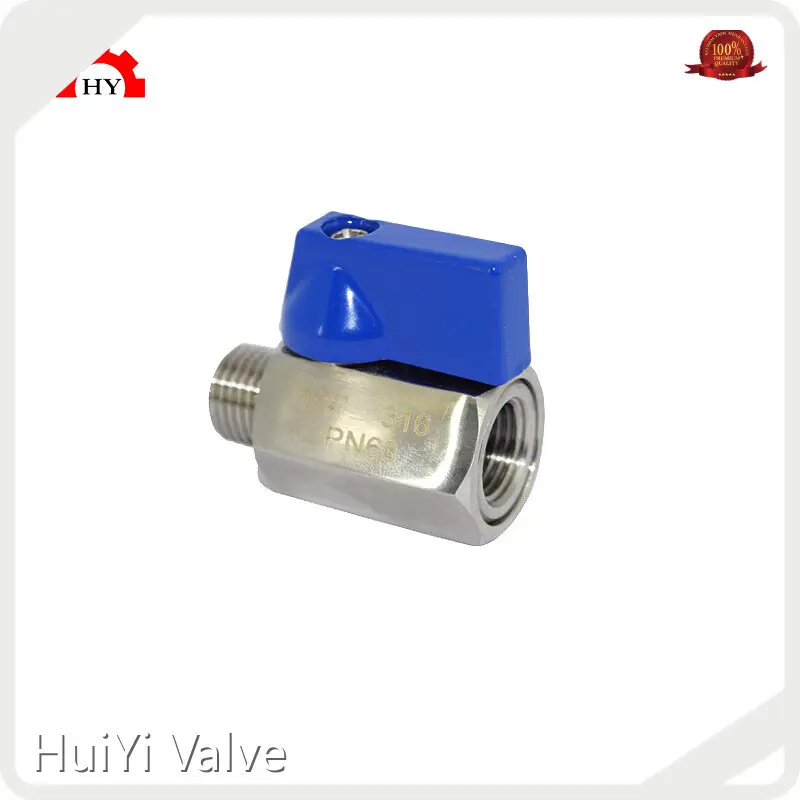

Valves and Fittings Normal Temperature by HuiYi Valve-1

Size:

1/8" to 1"

Working Pressure:

1000 PSI(PN63)

Working Temperature:

Normal temperature

Packing:

Inner case is carton, outside package is plywood case

Model:

HY-MNBVMF

Inquiry

Product Description

Durable: Made of high-quality stainless steel, durable construction, high strength, corrosion resistance and pressure resistance, temperature resistance, used for a long time.

Function: Used for connecting two pipes, which go in the same direction in the double-seal system.

Size: 1/4" NPT Thread Female and Male Valves. Quick 1/4 turn open or close operation.

Safety and Easy to Use: Standard port flow for smaller valve sizes, each valve tested individually to ensure maximum safety (no icing) for water, oil and gas.

Secure Connection: Its double seal system designed specifically for inline valves connecting two pipes in the same direction, ensures a secure and reliable connection that prevents leaks and maximizes efficiency.

Dimension

Size	D	H	W	L
1/4”	7.5	17	22	41
3/8”	7	17	22	41
1/2”	9.2	28	22	46
3/4”	12.5	32.5	22	54
1”	15	34	22	65

Main Parts

No.	Part Name	Material
1	Handle	316/304
2	Stem Nut	316/304
3	Stem	304
4	Body	316/304
5	Ball	316/304
6	Ball Seat	PTFE
7	Stem Packing	PTFE

Product details

图片1 (20)

图片2 (18)

Main Parts

No.	Part Name	Material
1	Handle	316/304
2	Stem Nut	316/304
3	Stem	304
4	Body	316/304
5	Ball	316/304
6	Ball Seat	PTFE
7	Stem Packing	PTFE
