Valves and Fittings Full Bore by HuiYi Valve
Product details of the valves and fittings
Product Overview
HuiYi Valve valves and fittings is made with premium materials which have the property of high quality. The strict quality system ensures the high performance of this product. The valves and fittings produced by our company is widely used in various industries and fields. This product is at feasible market prices to meet the specific requirements of customers.
Product Information
Supported by advanced technology, our valves and fittings has a greater breakthrough in the comprehensive competitiveness of the products, as shown in the following aspects.
product description

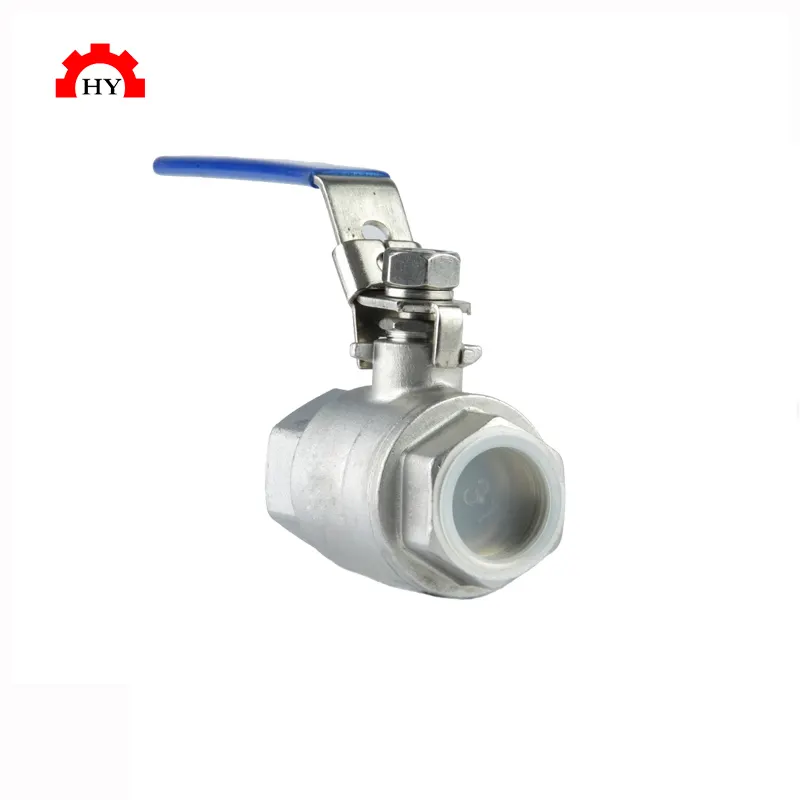

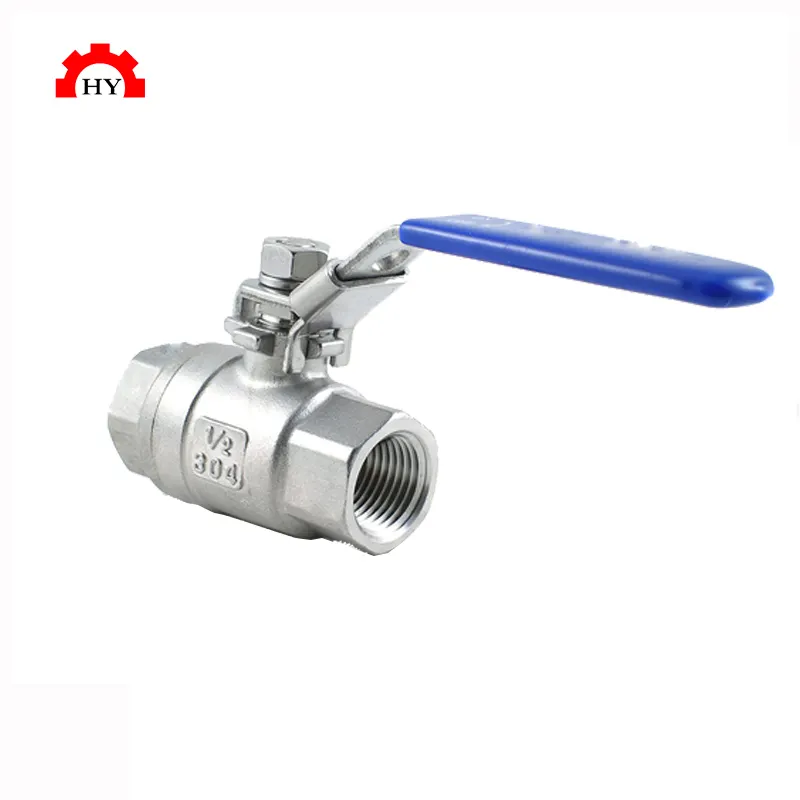

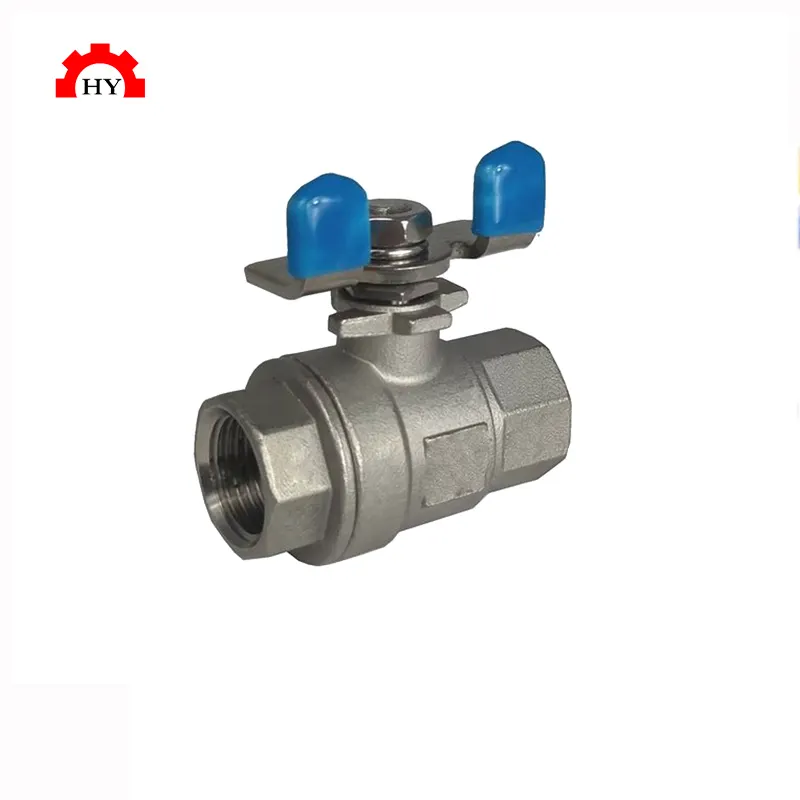

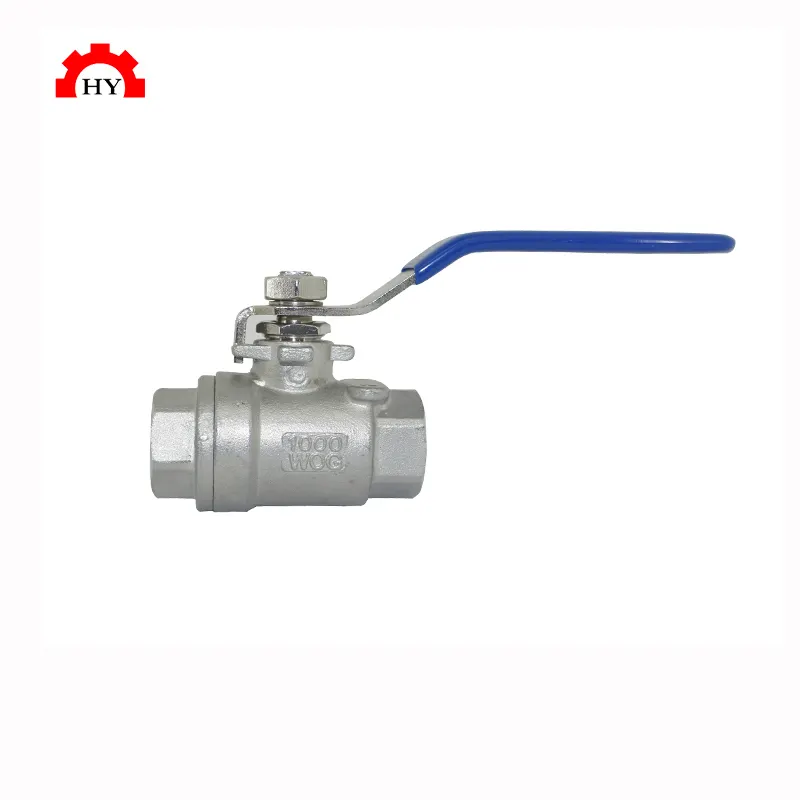

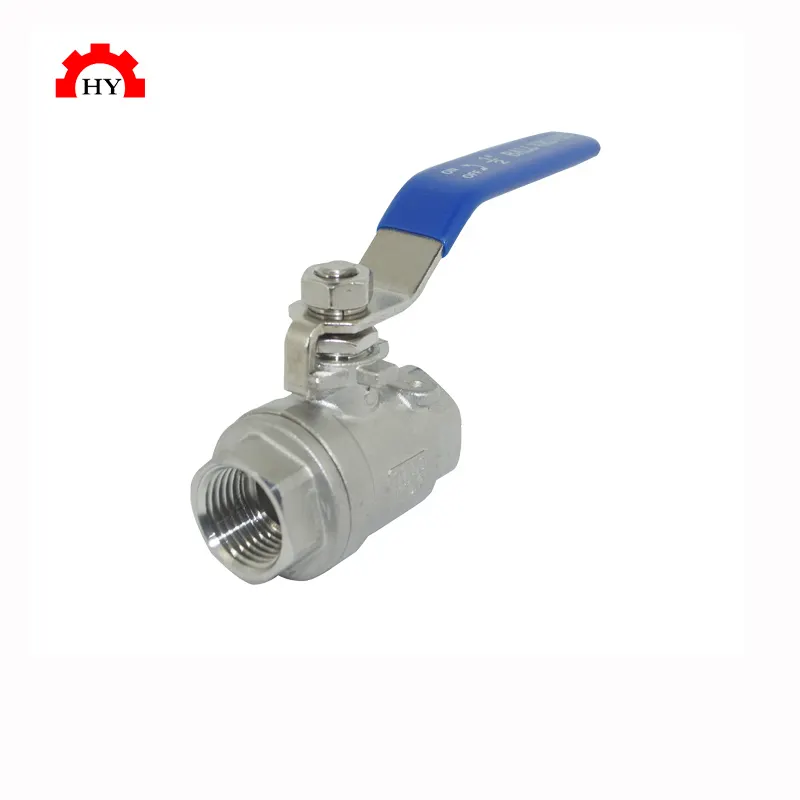

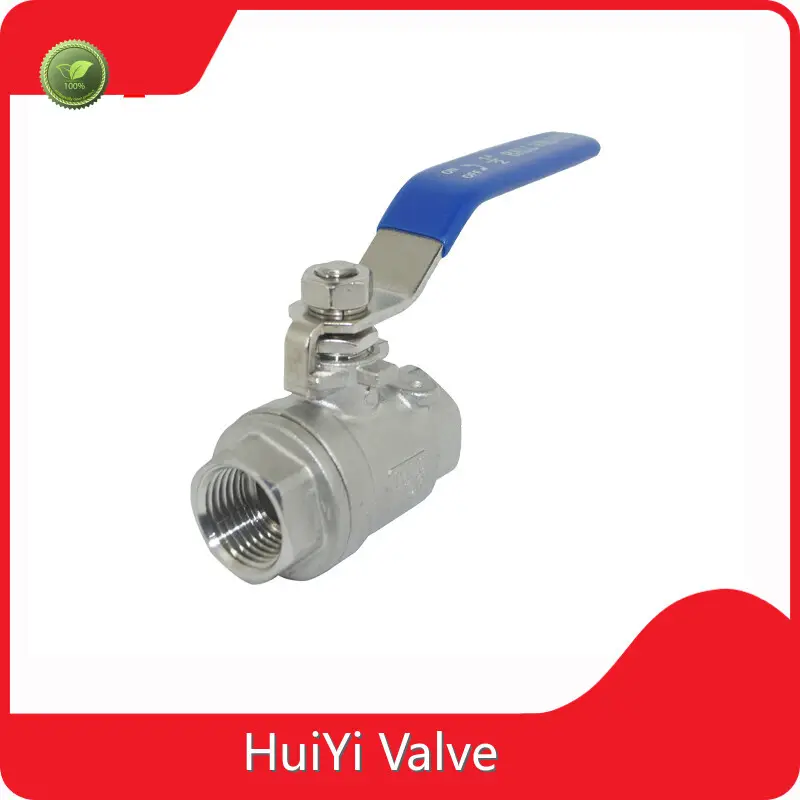

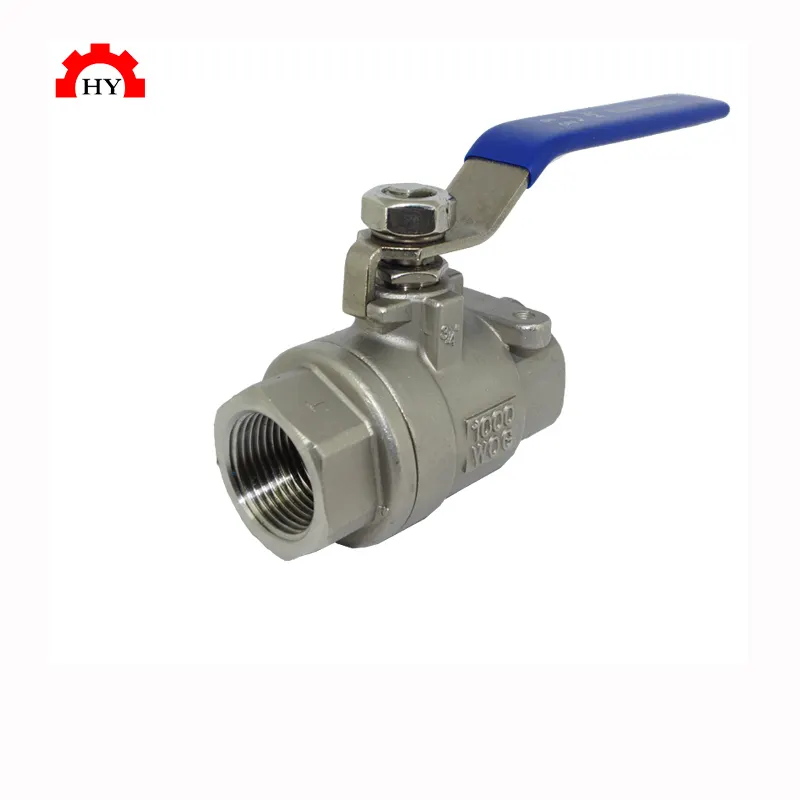

The 2-piece ball valve is composed of the main valve body and the auxiliary valve body, so it is called a 2-piece ball valve. It is a commonly used ball valve. After the ball core, valve seat and valve stem are installed into the main valve body, the auxiliary valve body is connected to the main valve body through threads or bolts. Its spherical core flow channel is full bore, with small flow resistance and large flow capacity.
The 2-piece ball valve has internal thread connection, external thread connection, and internal and external thread connection. Threads usually use 55° tapered pipe threads and 60° tapered pipe threads, which have good sealing properties.
Stainless steel Full Port Ball Valve, double sealing system, inline valve is used to connect two pipes in the same direction to control the flow of various types of fluids, such as air, water, steam, various corrosive media, mud, oil, liquid metals, noble gas applications and radioactive media.
Product parameters
|
Dimension |
||||
|
Size |
∅ d(mm) |
L(mm) |
H(mm) |
W(mm) |
|
1/4” |
9.2 |
54 |
54 |
110 |
|
3/8” |
12.8 |
54 |
55 |
110 |
|
1/2” |
15 |
57 |
58 |
115 |
|
3/4” |
20 |
68 |
61 |
115 |
|
1” |
25 |
80 |
77 |
128 |
|
1-1/4” |
32 |
91 |
81 |
128 |
|
1-1/2” |
38 |
103 |
90 |
155 |
|
2” |
50 |
124 |
108 |
155 |
|
2-1/2” |
65 |
160 |
132 |
230 |
|
3” |
80 |
185 |
145 |
230 |
|
4” |
100 |
224.5 |
185 |
335 |
|
Main Parts |
||
|
NO. |
Part Name |
Material |
|
1 |
Handle Cover |
Plastic |
|
2 |
Body |
CF8/CF8M |
|
3 |
Ball Seat |
PTFE |
|
4 |
Ball |
CF8/CF8M |
|
5 |
Cap |
CF8/CF8M |
|
6 |
Joint Gasket |
PTFE |
|
7 |
Thrust Washer |
PTFE |
|
8 |
Stem Packing |
PTFE |
|
9 |
Gland Nut |
304 |
|
10 |
Stem Washer |
304 |
|
11 |
Stem |
316/304 |
|
12 |
Stem Nut |
304 |
|
13 |
Locking Device |
304 |
|
14 |
Handle |
304 |
Product details
Company Introduction
Wenzhou Huiyi Valve Technology Co.,Ltd is a professional enterprise in industry. We are located in and our main product is Under the market guidance, HuiYi Valve greatly focuses on customers, which is of great importance to corporate benefits. We receive trust and support with sincerity and quality. Our final aim is to achieve a win-win situation. Our company has strong technical strength. We have many practical business experts, experienced technical experts and senior management experts. It provide technical support for our product development and innovation. HuiYi Valve insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
If you are in need for products of reliable quality and affordable price, please contact us at any time!
