Product details of the valves and fittings
Product Overview
The unique shape of valves and fittings shows our team's incentive mind on the development of fashion trend. The offered product is equipped with a long service life and has reliable functions. valves and fittings is sold at home and abroad and won the praise of users.
Product Introduction
HuiYi Valve's valves and fittings has superior quality. The specific details are presented in the following section.
Product Description
Durable: Made of high-quality stainless steel, durable construction, high strength, corrosion resistance and pressure resistance, temperature resistance, used for a long time.
Function: Used for connecting two pipes, which go in the same direction in the double-seal system.

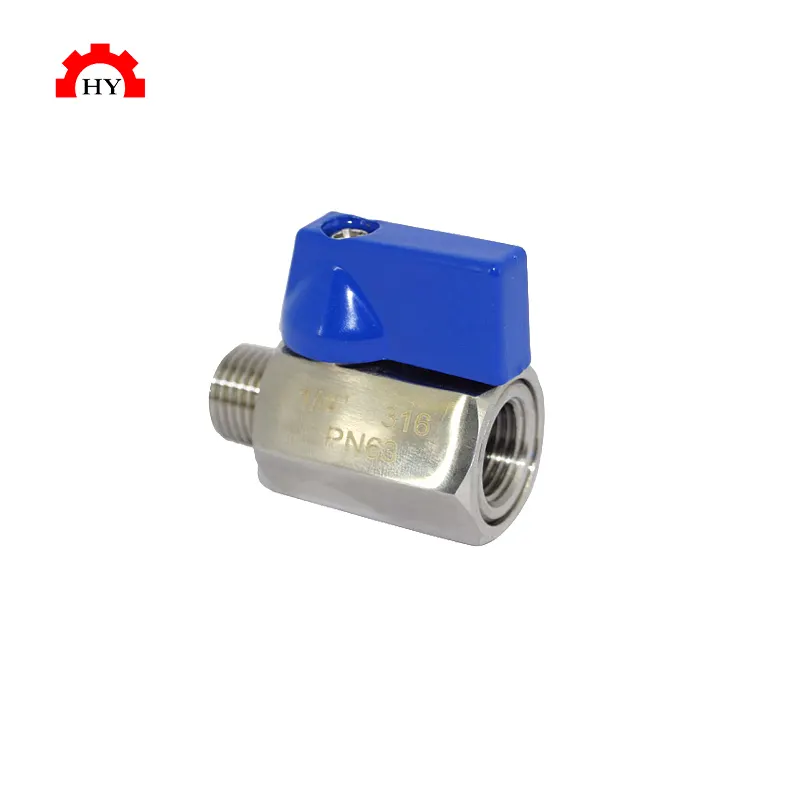

Size: 1/4" NPT Thread Female and Male Valves. Quick 1/4 turn open or close operation.
Safety and Easy to Use: Standard port flow for smaller valve sizes, each valve tested individually to ensure maximum safety (no icing) for water, oil and gas.
Secure Connection: Its double seal system designed specifically for inline valves connecting two pipes in the same direction, ensures a secure and reliable connection that prevents leaks and maximizes efficiency.
Dimension
|
Size |
D |
H |
W |
L |
|
1/4” |
7.5 |
17 |
22 |
41 |
|
3/8” |
7 |
17 |
22 |
41 |
|
1/2” |
9.2 |
28 |
22 |
46 |
|
3/4” |
12.5 |
32.5 |
22 |
54 |
|
1” |
15 |
34 |
22 |
65 |
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle |
316/304 |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Body |
316/304 |
|
5 |
Ball |
316/304 |
|
6 |
Ball Seat |
PTFE |
|
7 |
Stem Packing |
PTFE |
Product details
