Valves and Fittings 50 Pcs - - HuiYi Valve
Product Description

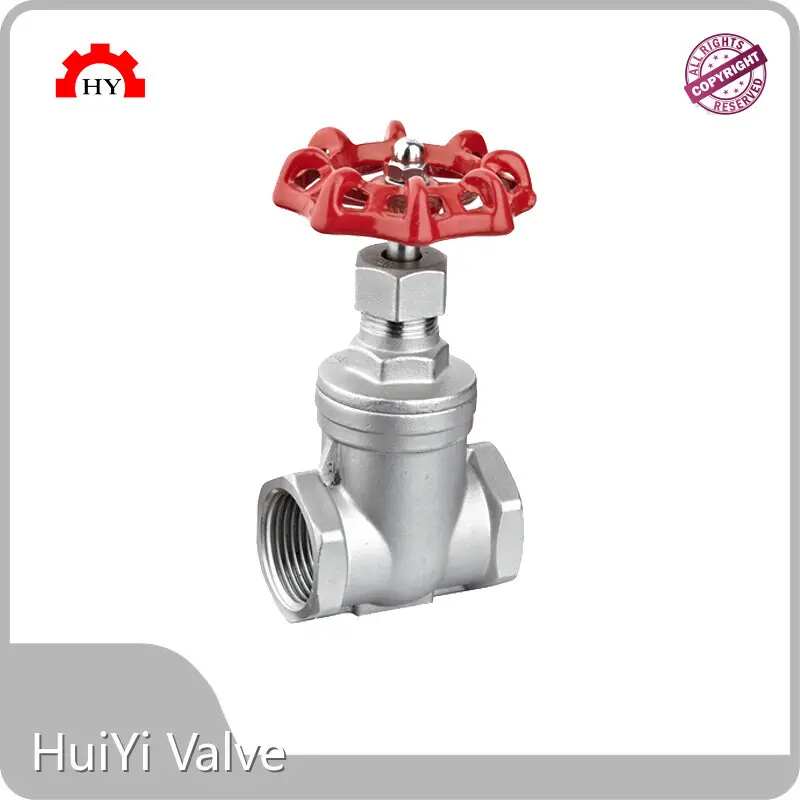

STAINLESS STEEL GATE VALVE: It is a stainless steel internal thread rotary gate valve, NPT BSPP BSPT stainless steel gate valve, which is used to control the water flow and control the pressure of the medium to produce an action that blocks the flow of the medium. When allowing or blocking the flow of media in one direction, it can be opened and closed by simply turning the wheeled handle.
EXPLOSION-PROOF, WEAR-RESISTANT: the full stainless steel valve body has the characteristics of high hardness, pressure-resistant, explosion-proof, high temperature resistance, good sealing, durability and good mechanical properties. Uniform wall thickness, high wear resistance and long service life.
NOT EASY TO SCALE: The inner wall of the 304 stainless steel gate valve is polished, the surface is smooth, no scaling, no blockage, practical and durable.
WIDE RANGE OF APPLICATION: A variety of specifications are available, suitable for most piping systems. It is widely used in chemical, petroleum, fire protection, electric power, light and heavy industry, construction, aerospace, shipbuilding and other industries.
Dimension
|
Size |
∅ D(mm) |
L(mm) |
H(mm) |
∅ D1(mm) |
|
1/2” |
15 |
55 |
92 |
70 |
|
3/4” |
20 |
60 |
99 |
70 |
|
1” |
25 |
66 |
113 |
80 |
|
1-1/4” |
32 |
76 |
128 |
80 |
|
1-1/2” |
40 |
88 |
147 |
90 |
|
2” |
50 |
96 |
168 |
100 |
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Body |
CF8/CF8M |
|
2 |
Bonnet |
CF8/CF8M |
|
3 |
Stop Ring |
304 |
|
4 |
Stem |
316 |
|
5 |
Packing |
PTFE |
|
6 |
Hand Wheel Nut |
304 |
|
7 |
Hand Wheel |
Aluminum |
|
8 |
Packing Nut |
316 |
|
9 |
Ring |
304 |
|
10 |
Lock Nut |
316 |
|
11 |
Gasket |
PTFE |
|
12 |
Disc |
CF8/CF8M |
Product details
Company Advantages
· HuiYi Valve valves and fittings is made of the finest raw materials that meet with the rigorous quality and safety standards.
· HuiYi Valve employs professional quality check team to test the quality of the product.
· This product caters to the market demands and customers' requirements.
Company Features
· Wenzhou Huiyi Valve Technology Co.,Ltd, a reliable and trustworthy provider, has been recognized as one of the most powerful ones for providing high-quality valves and fittings.
· All valves and fittings manufactured by Wenzhou Huiyi Valve Technology Co.,Ltd are of first-grade quality.
· We are committed to building a healthier and more productive world. In the future, we will maintain social and environmental awareness. Inquire online!
Application of the Product
Our valves and fittings can be used in multiple areas of multiple industries.
Since the establishment, HuiYi Valve has always been focusing on the R&D and production of With strong production strength, we can provide customers with personalized solutions according to customers' needs.
