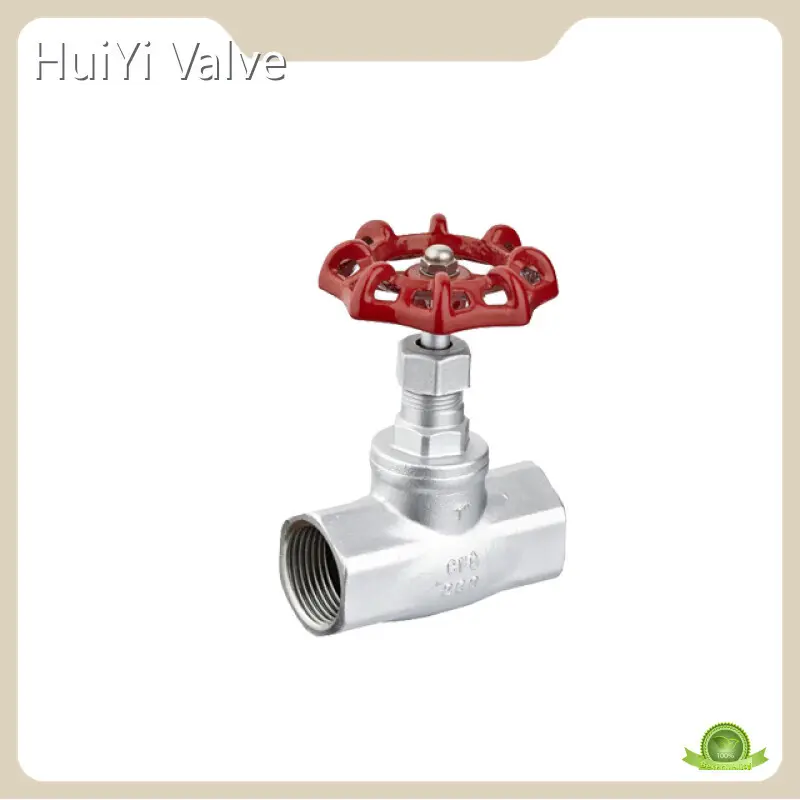

Product details of the threaded globe valve
Product Overview
HuiYi Valve threaded globe valve is offered using unmatched of innovative technologies. HuiYi Valve delivers high performance products that are cost-effective, customer-need specific. The threaded globe valve managed by HuiYi Valve is widely used in industry. Wenzhou Huiyi Valve Technology Co.,Ltd has maintained and strengthened business relationships with partners and clients over the years.
Product Description
Compared with other similar products in the market, HuiYi Valve's threaded globe valve is provided with the following outstanding advantages.
Product Features
Made of high quality stainless steel material, this globe valve is sturdy and durable.
The internal fluid of valve body is straight through which allows fluid to in a straight line and the resistance is small.
It's easier to open and close, because the movement direction of the disc is perpendicular to the direction, whether on or off.
It is suitable for water, oil, gas, etc.
Widely used in mechanical equipment, chemical equipment, industrial equipment, water supply and drainage equipment, pharmaceutical equipment, petrochemical equipment, etc.
Dimension
Size |
∅ D(mm) |
L(mm) |
H(mm) |
∅ D1(mm) |
1/2” |
15 |
66 |
100 |
70 |
3/4” |
20 |
80 |
106 |
70 |
1” |
25 |
90 |
118 |
80 |
1-1/4” |
32 |
105 |
134 |
80 |
1-1/2” |
40 |
120 |
152 |
100 |
2” |
50 |
141 |
172 |
100 |
Main Parts
No. |
Part Name |
Material |
1 |
Body |
CF8/CF8M |
2 |
Petal |
CF8/CF8M |
3 |
Stem |
316 |
4 |
Gasket |
PTFE |
5 |
Cap |
CF8/CF8M |
6 |
Washer |
316/304 |
7 |
Nut |
304 |
8 |
Ring |
304 |
9 |
Hand Wheel |
Aluminum |
10 |
Gland Ring |
CF8/CF8M |
11 |
Stem Packing |
PTFE |
Product details
Main Parts
No. |
Part Name |
Material |
1 |
Body |
CF8/CF8M |
2 |
Petal |
CF8/CF8M |
3 |
Stem |
316 |
4 |
Gasket |
PTFE |
5 |
Cap |
CF8/CF8M |
6 |
Washer |
316/304 |
7 |
Nut |
304 |
8 |
Ring |
304 |
9 |
Hand Wheel |
Aluminum |
10 |
Gland Ring |
CF8/CF8M |
11 |
Stem Packing |
PTFE |
Company Information
Wenzhou Huiyi Valve Technology Co.,Ltd, located in is a modern company. We are devoted to the business of We have a perfect and mature service team. Based on this, we can provide you with excellent services to seek mutual benefit and create a better future! Look forward to inquiries from customers in various industries
