Product details of the threaded ball valve
Product Information
HuiYi Valve threaded ball valve is carefully crafted by our skillful workers who utilize advanced production equipment. In order to ensure the quality of the product, our expert team will careful and strictly check the quality in every stage of production. One of the most obvious characteristics of this product is that it has attracted more and more customers.
Product Description

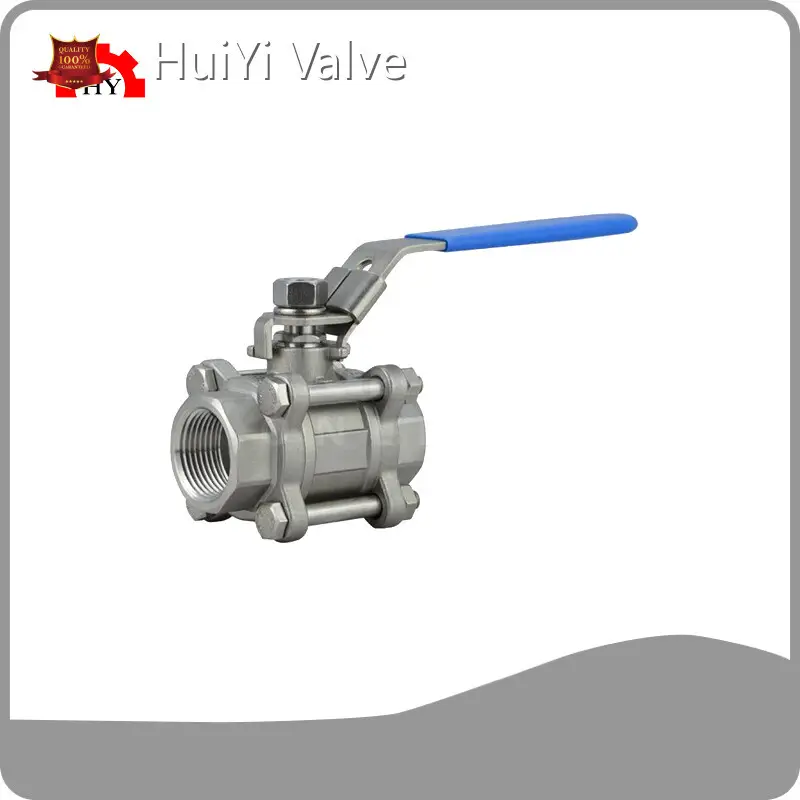

The 3-piece ball valve is composed of a main valve body and two auxiliary valve bodies, so it is called a 3-piece ball valve. After the ball core and valve stem are installed into the main valve body, the auxiliary valve body is installed into the valve seat, and the main and auxiliary valve bodies are connected as a whole through bolts. Its ball core flow channel is also full bore.
3-Piece Stainless Steel Ball Valves with PTFE Seals & Seats, Stainless Steel Ball Valves with PTFE (Teflon) Seats & Seals offer excellent corrosion resistance for most applications. Stainless Steel & PTFE work well in applications including but not limited to water, oil, gas/air, light alkali's and acids, biodiesel, fuels and alcohols. These ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent usage. Available in both WOG200 and WOG1000. WOG200 are considered ideal for most general applications. WOG1000 are for high pressure and industrial applications where durability and lifetime longevity of the valve are preferred.
Product Parameters
Size |
∅ D(mm) |
L(mm) |
H(mm) |
E(mm) |
1/4” |
9.2 |
59 |
52 |
108 |
3/8” |
12.8 |
60 |
52 |
108 |
1/2” |
15 |
65.5 |
63 |
113 |
3/4” |
20 |
76.5 |
68 |
113 |
1” |
25 |
86.2 |
79 |
135 |
1-1/4” |
32 |
103.1 |
88 |
135 |
1-1/2” |
38 |
118 |
97 |
160 |
2” |
50 |
131.5 |
108 |
160 |
2-1/2” |
65 |
164.5 |
128 |
230 |
3” |
80 |
182.7 |
140 |
230 |
4” |
100 |
229.6 |
172 |
335 |
Product details
Main Parts
No. |
Part Name |
Material |
1 |
Handle Cover |
Plastic |
2 |
Stem Nut |
316/304 |
3 |
Stem |
304 |
4 |
Stem Washer |
304 |
5 |
Gland Nut |
304 |
6 |
Thrust Washer |
PTFE |
7 |
End Seal |
PTFE |
8 |
Bolt |
304 |
9 |
Bolt Nut |
304 |
10 |
Bolt Washer |
304 |
11 |
End Cap |
CF8/CF8M |
12 |
Body |
CF8/CF8M |
13 |
Ball |
CF8/CF8M |
14 |
Ball Seat |
PTFE |
15 |
Stem Packing |
PTFE |
16 |
Locking Device |
304 |
17 |
Handle |
304 |
