Product details of the steel compression fittings
Quick Overview
By using quality-approved components, HuiYi Valve steel compression fittings is manufactured under the visionary guidance of our experts in accordance with global market standards with the aid of pioneering techniques. Our team adheres to a high standard of quality inspection policy to ensure its quality. Wenzhou Huiyi Valve Technology Co.,Ltd's sales performance has been steadily increasing these years.
Product Description
The steel compression fittings produced by HuiYi Valve has better quality, as shown below.
Product details

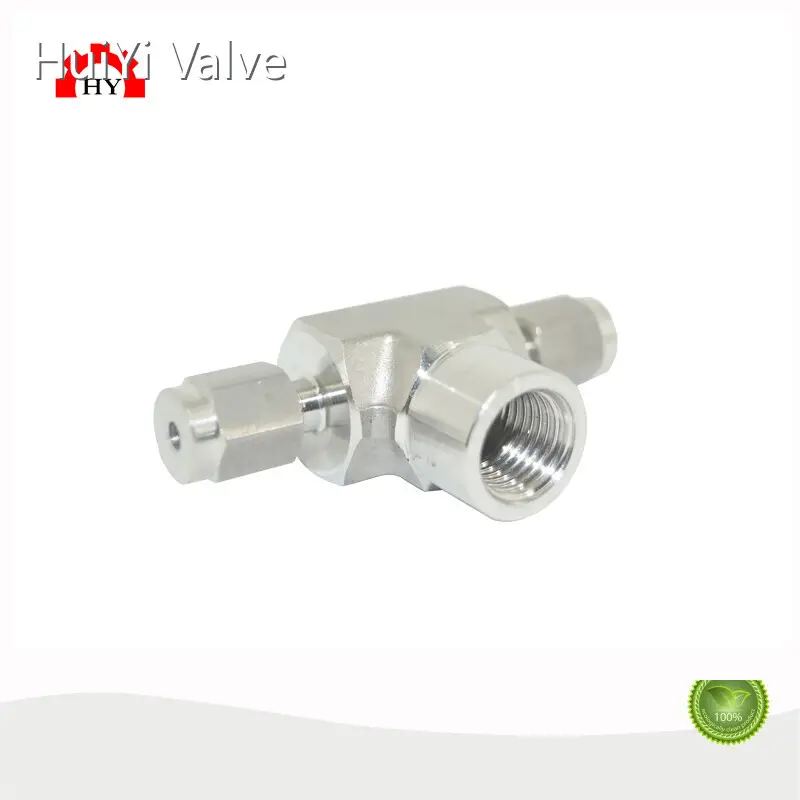

HY Stainless Steel 304 and 316 branch tee fittings have a pressure resistance of 3000PSI, suitable for NPT, BSP, BSPT thread specifications, and adopt double ferrule design female thread structure. It is suitable for all kinds of industrial piping systems, especially in the chemical, petroleum, food and beverage industries that require corrosion resistance of materials. It can operate stably under high pressure environment, effectively realize pipeline branching connection and ensure accurate diversion and transportation of fluids, and its high-quality stainless steel material and precise double ferrule and thread design guarantee the sealing, reliability and durability of the connection.
Product Overview
1. Excellent material:
● Adopt stainless steel 304 and 316 material, with excellent corrosion resistance, can resist the erosion of a variety of chemical substances, including common acids, alkalis, salt solutions, etc., in the harsh industrial environment (e.g., chemical workshop, seaside facilities, etc.) can maintain long-term stability, effectively extend the service life of the fittings, reduce maintenance costs.
● Stainless steel material has good strength and toughness, can withstand a certain degree of mechanical shock and vibration, in the complex pipeline installation and operating conditions, not easy to rupture or deformation, to ensure the safety and reliability of the piping system.
2. High pressure resistance:
●Can withstand pressures up to 3000PSI, suitable for high-pressure piping system connection needs. Whether it is high-pressure liquid or gas transportation, it can operate stably, effectively preventing leakage or damage to pipe fittings due to high pressure, and guaranteeing the continuity and safety of industrial production.
3. Double ferrule design advantage:
●The double ferrule structure provides excellent sealing performance. When the pipes are connected, the double ferrule fits tightly on the pipe and fitting body, forming a double sealing line of defense, effectively preventing fluid leakage, and even in the case of large pressure fluctuations or temperature changes, it still maintains a good sealing effect, ensuring the sealing and stability of the piping system.
This design also enhances the reliability of the connection, can firmly fix the pipeline, reduce the loosening of the connection due to pipeline vibration or external force, and improve the stability and durability of the whole pipeline network.
3. Multi-thread specification adaptation:
● Compatible with NPT, BSP, BSPT and other thread standards, with a wide range of universality. It can be easily connected with pipes, valves and other fittings of different regions, brands and standards, and can be easily applied in industrial piping projects worldwide, greatly improving the scope of application and flexibility of the product, and reducing installation troubles and extra costs caused by thread mismatch.
4.Branch tee functional characteristics:
● As branch tee fittings, they can accurately realize the branch connection of piping system, diverting the fluid from a single pipe to two branch pipes in different directions, to meet the needs of complex processes and piping layouts. Its precise internal structure design ensures the uniformity and stability of the fluid in the diversion process, reduces pressure loss and turbulence, and improves the fluid transmission efficiency.
Main Parts
MODEL NUMBER | TUBE OD (NCH) | NPT SIZE | DIMENSIONS(INCH) | ||||
T | A | D | E | F.in. | H | ||
HY-FBT-1/8-1/8 | 1/8 | 1/8 | 1.94 | 0.50 | 0.09 | 1/2 | 0.75 |
HY-FBT-1/4-1/8 | 1/4 | 1/8 | 2.12 | 0.60 | 0.19 | 1/2 | 0.75 |
HY-FBT-1/4-1/4 | 1/4 | 2.34 | 11/16 | 0.88 | |||
HY-FBT-3/8-1/4 | 3/8 | 1/4 | 2.46 | 0.66 | 0.28 | 11/16 | 0.88 |
HY-FBT-3/8-3/8 | 3/8 | 2.62 | 13/16 | 0.88 | |||
HY-FBT-3/8-1/2 | 1/2 | 2.84 | 1 | 1.12 | |||
HY-FBT-1/2-1/4 | 1/2 | 1/4 | 2.84 | 0.90 | 0.41 | 13/16 | 0.88 |
HY-FBT-1/2-3/8 | 3/8 | 2.84 | 13/16 | 0.88 | |||
HY-FBT-1/2-1/2 | 1/2 | 3.06 | 1 | 1.12 | |||
HY-FBT-5/8-1/2 | 5/8 | 1/2 | 3.06 | 0.96 | 0.50 | 1 | 1.12 |
HY-FBT-3/4-3/4 | 3/4 | 3/4 | 3.52 | 0.96 | 0.62 | 13/8 | 1.25 |
HY-FBT-1-3/4 | 1 | 3/4 | 3.86 | 1.23 | 0.88 | 13/8 | 1.25 |
HY-FBT-1-1 | 1 | 4.22 | 1-11/16 | 1.50 | |||
MM | |||||||
HY-FBT-6M-1/8 | 6 | 1/8 | 53.9 | 15.3 | 4.8 | 1/2 | 19.00 |
HY-FBT-6M-1/4 | 1/4 | 59.5 | 11/16 | 22.40 | |||
HY-FBT-8M-1/8 | 8 | 1/8 | 59.7 | 16.2 | 6.4 | 5/8 | 19.00 |
HY-FBT-8M-1/4 | 1/4 | 61.2 | 11/16 | 22.40 | |||
HY-FBT-10M-1/4 | 10 | 1/4 | 67 | 17.2 | 7.9 | 13/16 | 22.40 |
HY-FBT-12M-1/4 | 12 | 1/4 | 72 | 22.8 | 9.5 | 13/16 | 22.40 |
HY-FBT-12M-3/8 | 3/8 | 72 | 13/16 | 22.40 | |||
HY-FBT-12M-1/2 | 1/2 | 77.7 | 1 | 28.40 | |||
HY-FBT-16M-1/2 | 16 | 1/2 | 77.6 | 24.4 | 12.7 | 1 | 28.40 |
