Stainless Steel Socket Weld Fittings Thread by HuiYi Valve
Company Advantages
· This versatile HuiYi Valve stainless steel socket weld fittings is made from environmentally friendly materials.
· By improving production plan and adjusting crafts installation, HuiYi Valve has been always producing stainless steel socket weld fittings with high performance.
· HuiYi Valve has professional team to help to strictly test the quality of stainless steel socket weld fittings.
Product Description

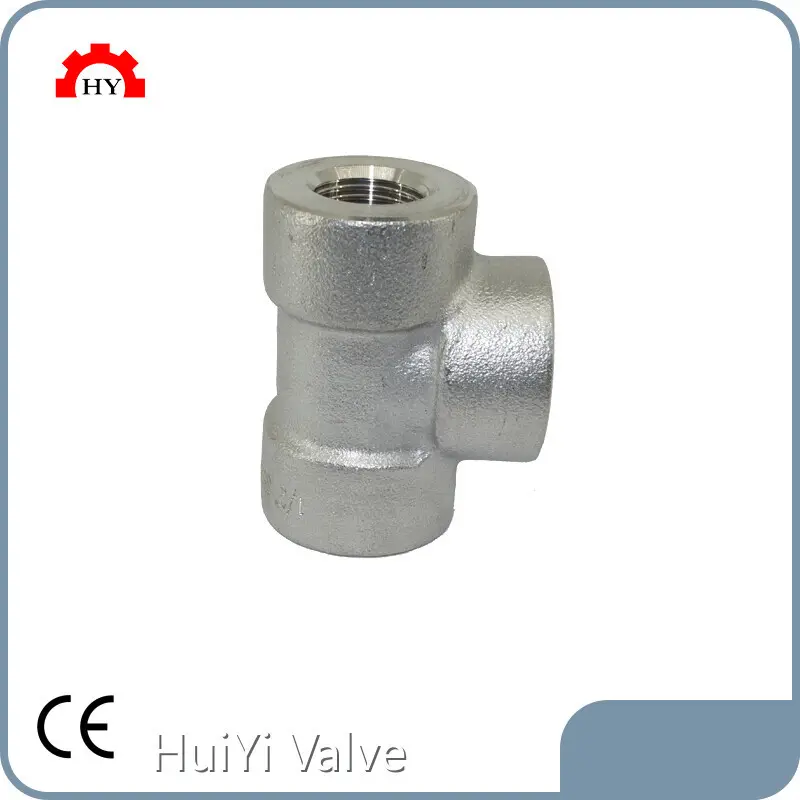

T-shaped pipe fitting for connecting and branching pipes
Female National Pipe Taper (NPT) threads on run and branches
Made from stainless steel 316 for strength, higher corrosion resistance than stainless steel 304
Max Pressure: 16MPa/2320psi; Working Temperature Range: -50℃~+200℃/-58℉~+392℉
Forged for durability, all material is stainless steel. Not include lead, can be used for potable water.
Dimension
|
Nominal Piple Size （NPS） |
Center to End elbow,tee,cross |
Center to End 45 degree elbow |
Outside Diameter of |
Minimum wall thickness |
Minimum Length of Thread |
|||||||||
| 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | |
| 1/8" | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 |
6.7 |
| 1/4" | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 |
10.2 |
| 3/8" | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 |
10.4 |
| 1/2" | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 |
13.6 |
| 3/4" | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 |
13.9 |
| 1" | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 |
17.3 |
| 1-1/4" | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 |
18.0 |
| 1-1/2" | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 |
18.4 |
| 2" | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 84 | 102 | 4.27 | 7.14 | 12.09 | 19.0 |
19.2 |
| 2-1/2" | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 |
28.9 |
| 3" | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 |
30.5 |
| 4" | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 |
33.0 |
Product details
Company Features
· Wenzhou Huiyi Valve Technology Co.,Ltd supplies high quality stainless steel socket weld fittings with innovative technology.
· stainless steel socket weld fittings is made by our best technology. HuiYi Valve provides the highest quality stainless steel socket weld fittings with high quality production technology. The application of high technology is conducive to the production of stainless steel socket weld fittings.
· As a fast-growing company, we work to develop and maintain sustainable relationships with all stakeholders. We demonstrate this commitment by acting imaginatively and consistently in the communities where our employees, business partners, and customers live and work.
Product Comparison
Compared with similar products on the market, the stainless steel socket weld fittings of HuiYi Valve has the following advantages.
