Product details of the stainless steel compression fittings
Product Description
In order to follow the trends, Wenzhou Huiyi Valve Technology Co.,Ltd adopts the novel design for stainless steel compression fittings. Its reliability is backed by our expert and experienced professionals. Product R&D center is equipped in HuiYi Valve to develop more and better stainless steel compression fittings.
Product details

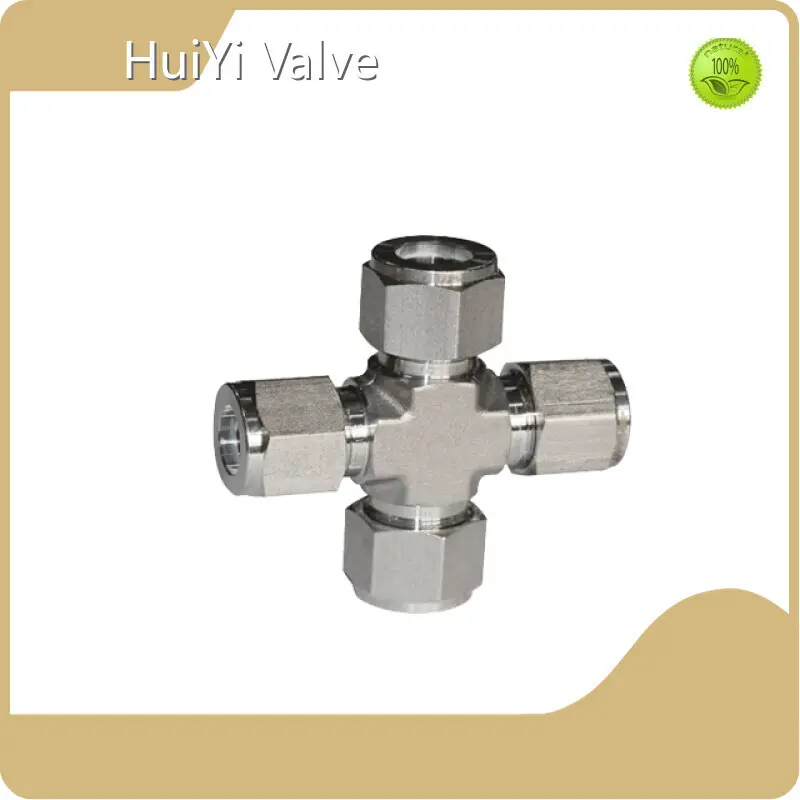

HY stainless steel 304 and 316 double ferrule cross-way pipe fittings have excellent pressure resistance and can withstand pressures from 3000PSI to 6000PSI. They are suitable for various industrial pipeline systems that have high requirements on material corrosion resistance and connection stability, such as chemical, petroleum, pharmaceutical and other industries. They can ensure efficient, safe transmission and precise distribution of pipeline fluids. The precise double ferrule design effectively enhances the sealing and reliability of the connection, providing key connection solutions for the construction of complex pipeline networks.
Product Features
1. Material: Made of stainless steel 304 and 316, it has excellent corrosion resistance and can be used for a long time in harsh chemical environments, humid environments and high salinity environments. It effectively resists oxidation, rust and various chemical erosions, greatly Extends the service life of the product and reduces maintenance costs and replacement frequency.
2. Pressure resistance: It can withstand pressures up to 3000PSI to 6000PSI and performs well in high-pressure pipeline systems. This high pressure resistance ensures the safety and stability of pipelines when transporting liquids or gases, reducing the risk of leakage or rupture due to excessive pressure. It is suitable for a variety of high-pressure industrial application scenarios, such as petrochemical high-pressure fluids Transportation, high-pressure gas distribution, etc.
3. Connection reliability: The double card sleeve design is one of its significant advantages. The double ferrule can provide double sealing guarantee and be tightly fixed on the pipeline to effectively prevent fluid leakage. Even when the pipeline is subject to vibration, temperature changes or pressure fluctuations, it can still maintain a stable and reliable connection, improving the operational reliability of the entire pipeline system and reducing downtime caused by loose connections.
4. Versatility and adaptability: Its standard size specifications and design make it widely adaptable to various types of pipeline systems, whether it is the connection of pipelines of different diameters or the combination with other pipe fittings, valves and other equipment are more convenient. This enables high flexibility in the design and installation process of industrial pipeline projects, can meet diverse engineering needs, and improves product versatility and compatibility.
5. Precision manufacturing: After precise processing and manufacturing technology, the products have high-precision dimensional tolerances and good surface finish. High precision ensures the tightness of
Main Parts
MODEL NUMBER | TUBE OD (INCH) | DIMENSIONS(INCH) | |||
T | A | D | E | F.in. | |
HY-UC-1/8 | 1/8 | 1.76 | 0.50 | 0.09 | 3/8 |
HY-UC-1/4 | 1/4 | 2.12 | 0.60 | 0.19 | 1/2 |
HY-UC-5/16 | 5/16 | 2.34 | 0.64 | 0.25 | 5/8 |
HY-UC-3/8 | 3/8 | 2.40 | 0.66 | 0.28 | 5/8 |
HY-UC-1/2 | 1/2 | 2.84 | 0.9 | 0.41 | 13/16 |
HY-UC-3/4 | 3/4 | 3.14 | 0.96 | 0.62 | 11/16 |
HY-UC-1 | 1 | 3.86 | 1.23 | 0.88 | 13/8 |
MM | |||||
HY-UC-3M | 3 | 44.7 | 12.9 | 2.4 | 3/8 |
HY-UC-6M | 6 | 53.9 | 15.3 | 4.8 | 1/2 |
HY-UC-8M | 8 | 59.7 | 16.2 | 6.4 | 5/8 |
HY-UC-10M | 10 | 67.0 | 17.2 | 7.9 | 13/16 |
HY-UC-12M | 12 | 72.0 | 22.8 | 9.5 | 13/16 |
HY-UC-16M | 16 | 74.0 | 24.4 | 12.7 | 15/16 |
HY-UC-18M | 18 | 76.6 | 24.4 | 15.1 | 11/16 |
HY-UC-20M | 20 | 89.3 | 26 | 15.9 | 13/8 |
HY-UC-22M | 22 | 89.4 | 26 | 18.3 | 5/8 |
HY-UC-25M | 25 | 98.3 | 31.3 | 21.8 | 13/8 |
FAQ
Company Advantage
• Our company is located in a position with pleasant surroundings and convenient traffic. And the outward transportation of products is convenient based on that.
• HuiYi Valve's are of good quality and reasonable price. The sales volume is increasing year by year.
• Our company has a well-trained and experienced production team that has excellent technology and produces according to national standards. It provides a strong guarantee for our product quality.
HuiYi Valve is always here. If you have any questions about the products we display, feel free to contact us at any time!
