Product details of the stainless steel compression fittings
Product Introduction
The distinguished design of HuiYi Valve stainless steel compression fittings makes it look more attractive. Our professional technicians have a clear understanding of the quality standards of the industry, and they test the products under their vigilance. Wenzhou Huiyi Valve Technology Co.,Ltd uses modern management tools to continuously innovate, improve product quality and technology.

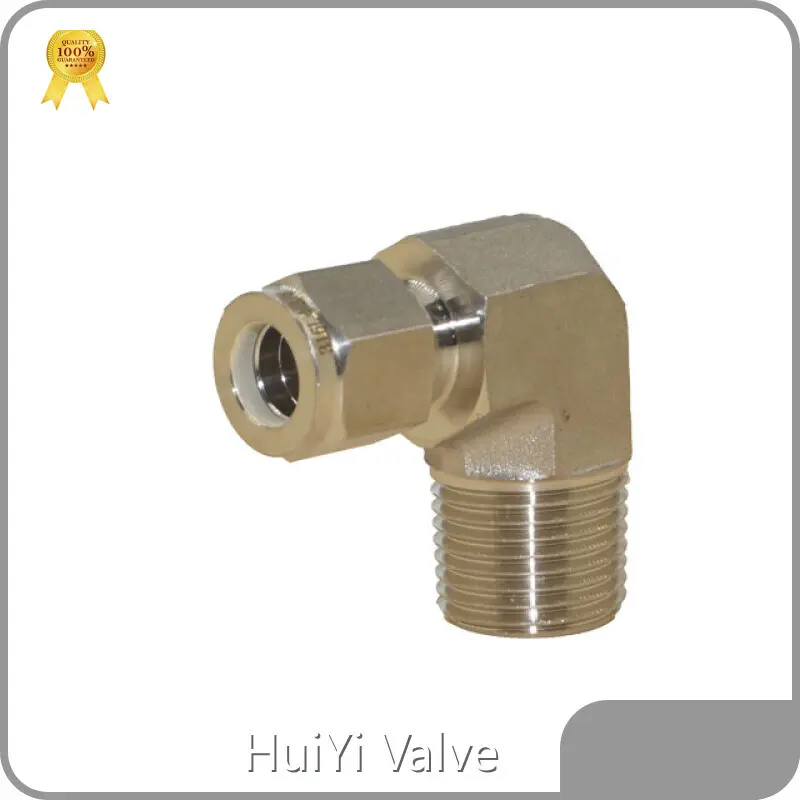

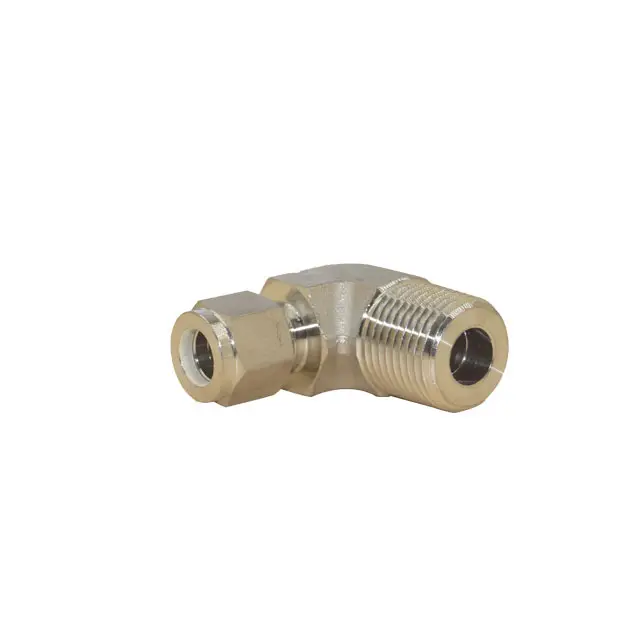

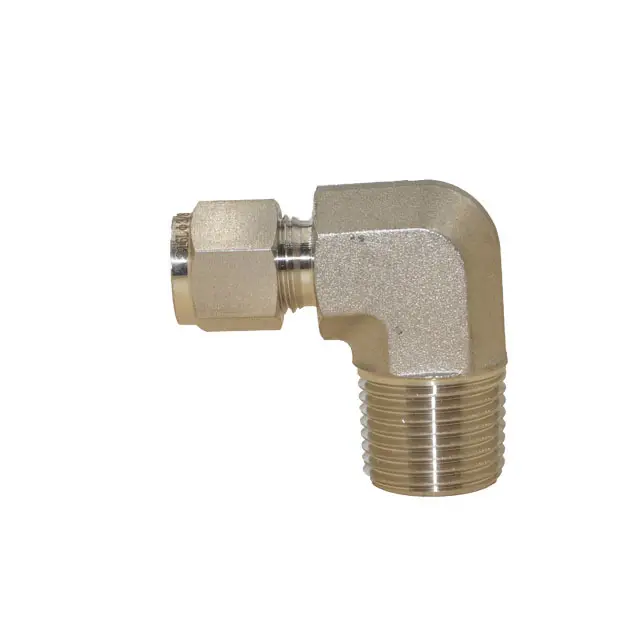

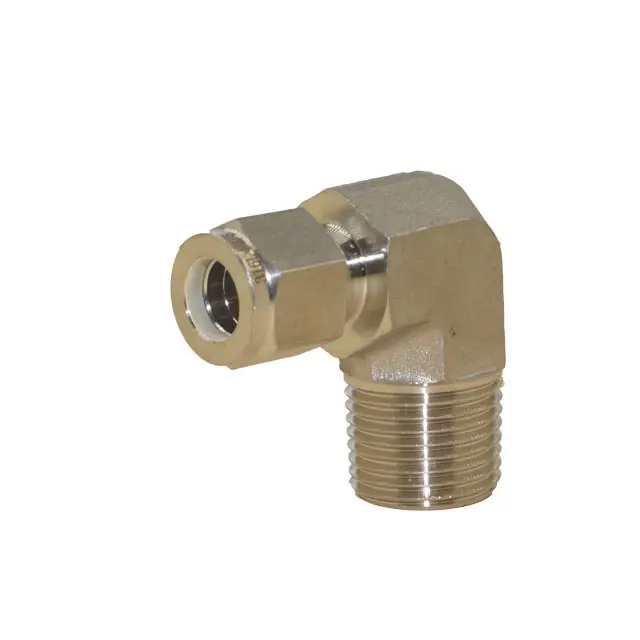

90-degree elbow for connecting tubing to threaded pipe at an angle

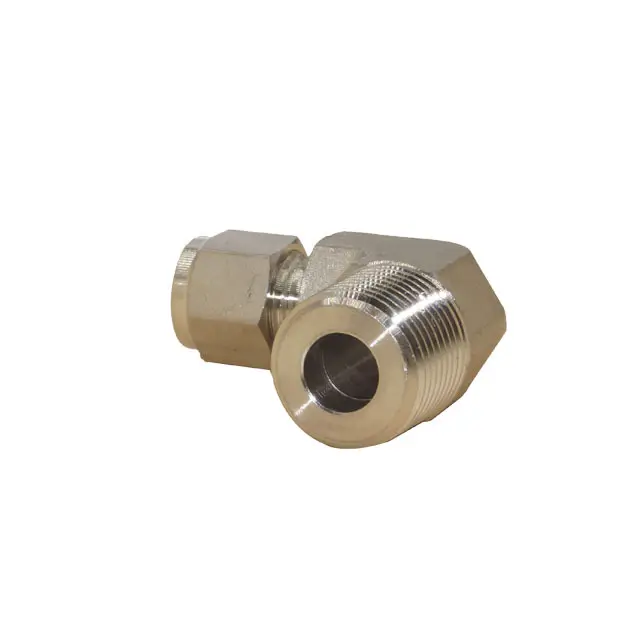

Fitting connects to tubing on one end and has an NPT male connector on the other
Chemically hardened type 316 304 stainless steel for higher strength and greater corrosion resistance than untreated stainless steel

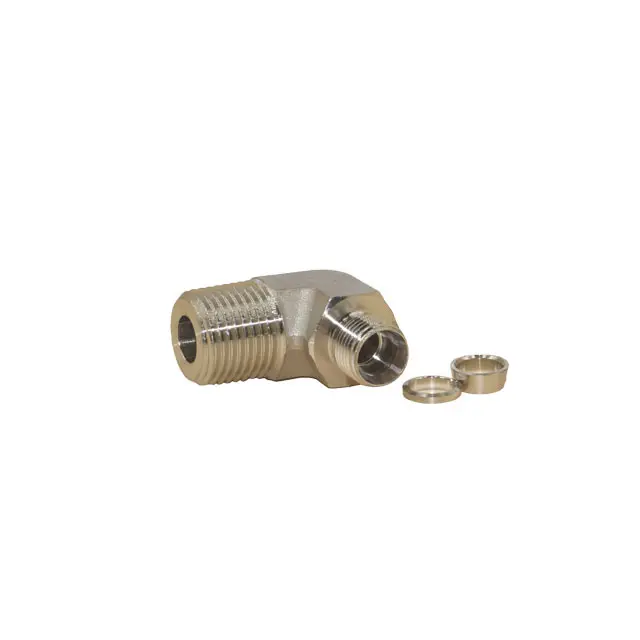

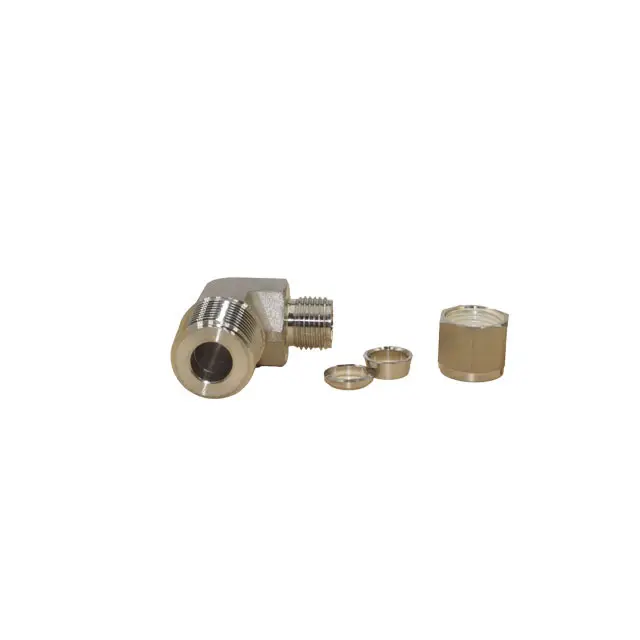

Twin ferrule compression fitting for a leak-resistant seal in high-pressure applications
For use with stainless steel pipe and tubing
Dimension
MODEL NUMBER |
TUBE OD |
|
DIMENSIONS(INCH) |
|||
T,INCH |
NPT SIZE |
A |
D |
E |
F |
|
HY-ME-1/16-1/16 |
1/16 |
1/16 |
0.75 |
0.34 |
0.05 |
7/16 |
HY-ME-1/16-1/8 |
1/8 |
|||||
HY-ME-1/8-1/16 |
1/8 |
1/16 |
0.93 |
0.50 |
0.09 |
7/16 |
HY-ME-1/8-1/8 |
1/8 |
0.93 |
7/16 |
|||
HY-ME-1/8-1/4 |
1/4 |
0.97 |
1/2 |
|||
HY-ME-3/16-1/8 |
3/16 |
1/8 |
1.00 |
0.54 |
0.12 |
1/2 |
HY-ME-3/16-1/4 |
1/4 |
|||||
HY-ME-1/4-1/16 |
1/4 |
1/16 |
1.06 |
0.60 |
0.12 |
1/2 |
HY-ME-1/4-1/8 |
1/8 |
1.06 |
0.19 |
1/2 |
||
HY-ME-1/4-1/4 |
1/4 |
1.06 |
0.19 |
1/2 |
||
HY-ME-1/4-3/8 |
3/8 |
117 |
0.19 |
11/16 |
||
HY-ME-1/4-1/2 |
1/2 |
1.25 |
0.19 |
13/16 |
||
HY-ME-5/16-1/8 |
5/16 |
1/8 |
1.13 |
0.64 |
0.19 |
9/16 |
HY-ME-5/16-1/4 |
1/4 |
1.13 |
0.25 |
9/16 |
||
HY-ME-5/16-3/8 |
3/8 |
1.2 |
0.25 |
11/16 |
||
HY-ME-3/8-1/8 |
3/8 |
1/8 |
1.2 |
0.66 |
0.19 |
5/8 |
HY-MME-3/8-1/4 |
1/4 |
1.2 |
0.28 |
5/8 |
||
HY-ME-3/8-3/8 |
3/8 |
1.23 |
0.28 |
11/16 |
||
HY-ME-3/8-1/2 |
1/2 |
1.31 |
0.28 |
13/16 |
||
HY-ME-3/8-3/4 |
3/4 |
1.46 |
0.28 |
1-1/16 |
||
HY-ME-1/2-1/4 |
1/2 |
1/4 |
1.42 |
0.9 |
0.28 |
13/16 |
HY-ME-1/2-3/8 |
3/8 |
1.42 |
0.38 |
13/16 |
||
HY-MME-1/2-1/2 |
1/2 |
1.42 |
0.41 |
13/16 |
||
HY-ME-1/2-3/4 |
3/4 |
1.57 |
0.41 |
1-1/16 |
||
HY-ME-5/8-3/8 |
5/8 |
3/8 |
1.5 |
0.96 |
0.38 |
15/16 |
HY-ME-5/8-1/2 |
1/2 |
1.5 |
0.47 |
15/16 |
||
HY-ME-5/8-3/4 |
3/4 |
1.57 |
0.5 |
1-1/16 |
||
HY-ME-3/4-1/2 |
3/4 |
1/2 |
1.57 |
0.96 |
0.47 |
1-1/16 |
HY-ME-3/4-3/4 |
3/4 |
0.62 |
||||
HY-ME-7/8-3/4 |
7/8 |
3/4 |
1.76 |
1.02 |
0.62 |
1-3/8 |
HY-ME-1-3/4 |
1 |
3/4 |
1.93 |
1.23 |
0.62 |
1-3/8 |
HY-ME-1-1 |
1 |
0.88 |
Company Feature
• We have a professional technical team and a group of technicians with extensive production experience to ensure our products are of good quality.
• Established in HuiYi Valve has been developing in the for years. We have mastered the advanced technology and have accumulated rich experience.
• HuiYi Valve's products are sold in major domestic markets. Besides, they are exported to overseas markets including br /> If you have any need to purchase in bulk, please contact HuiYi Valve to enjoy discounts and better value-added services.
