Stainless Steel Ball Valve Normal Temperature by HuiYi Valve
Company Advantages
· HuiYi Valve stainless steel ball valve is made of high quality and durable raw materials which have been well selected before entering into the factory.
· The product performance meets the most demanding requirements.
· Wenzhou Huiyi Valve Technology Co.,Ltd pays high attention to quality problem to seek for long-term development.
Product Description

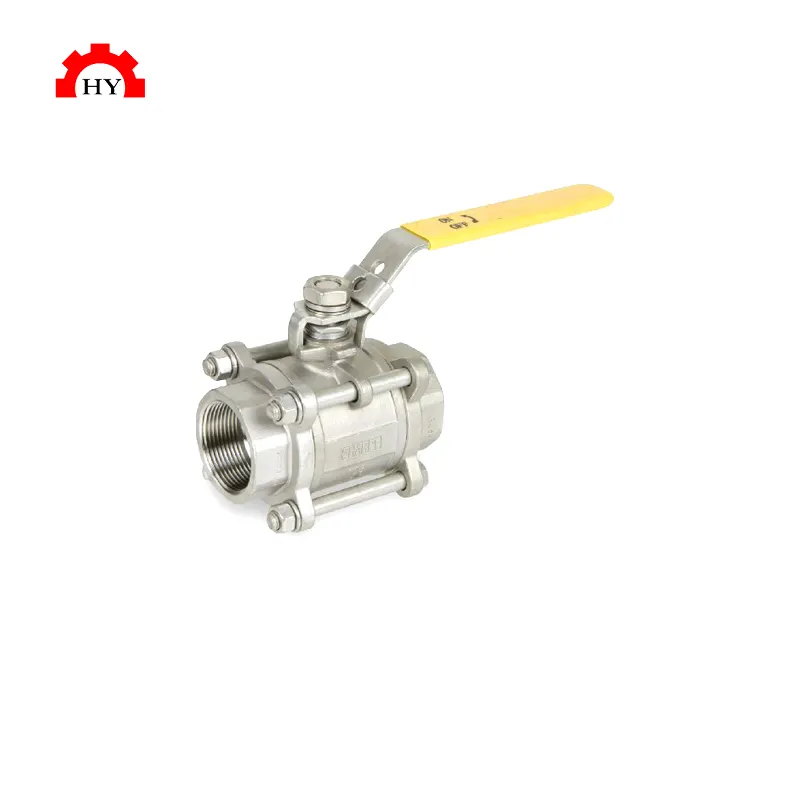

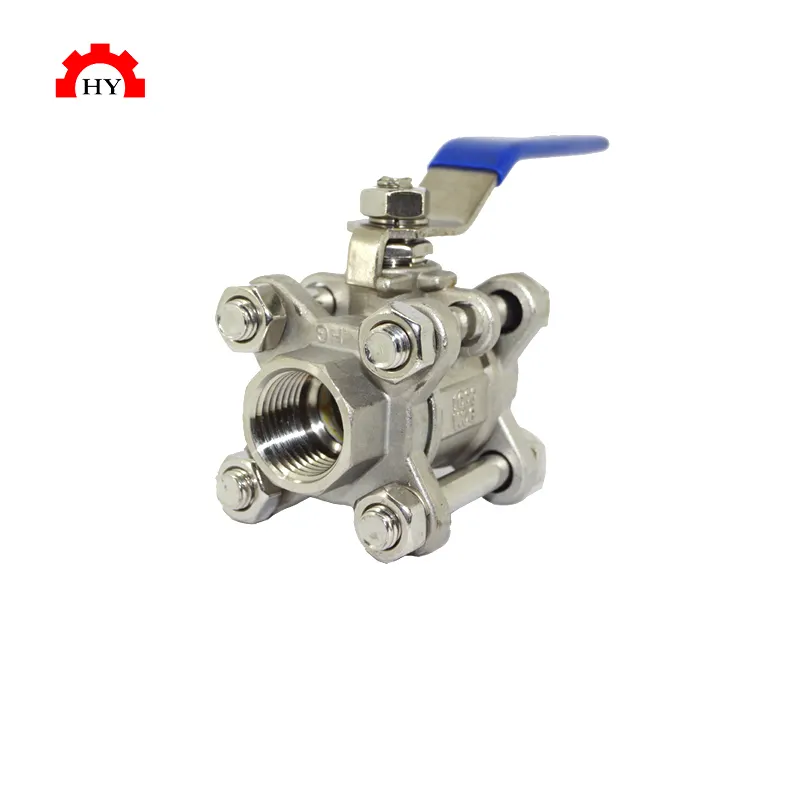

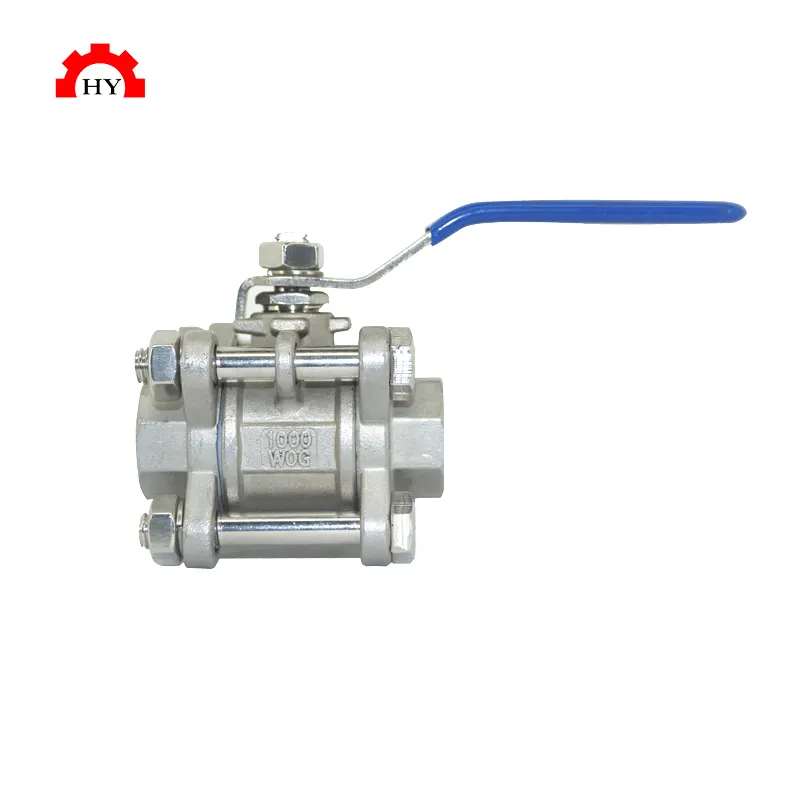

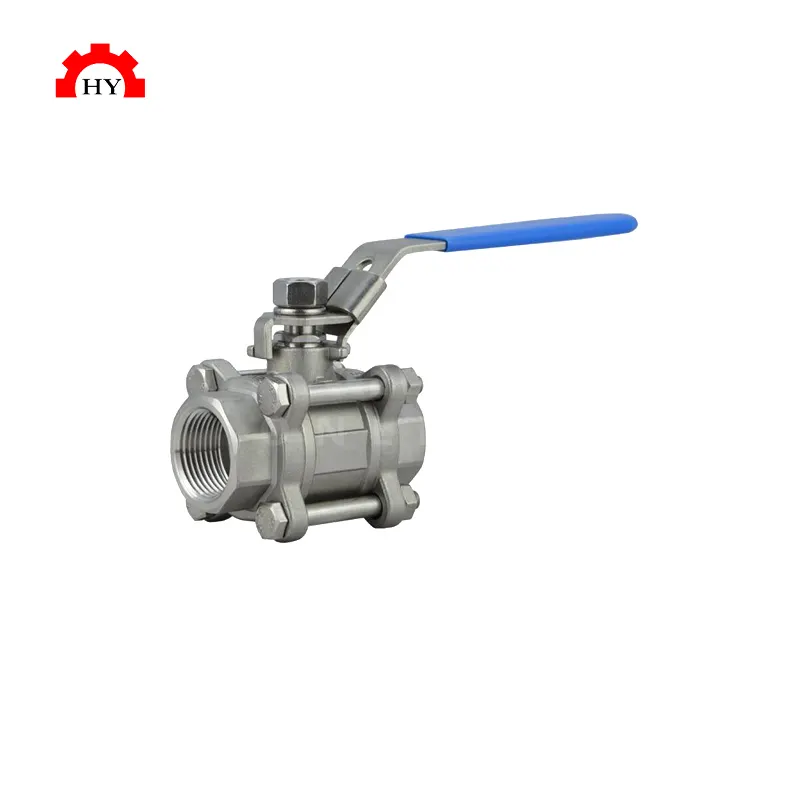

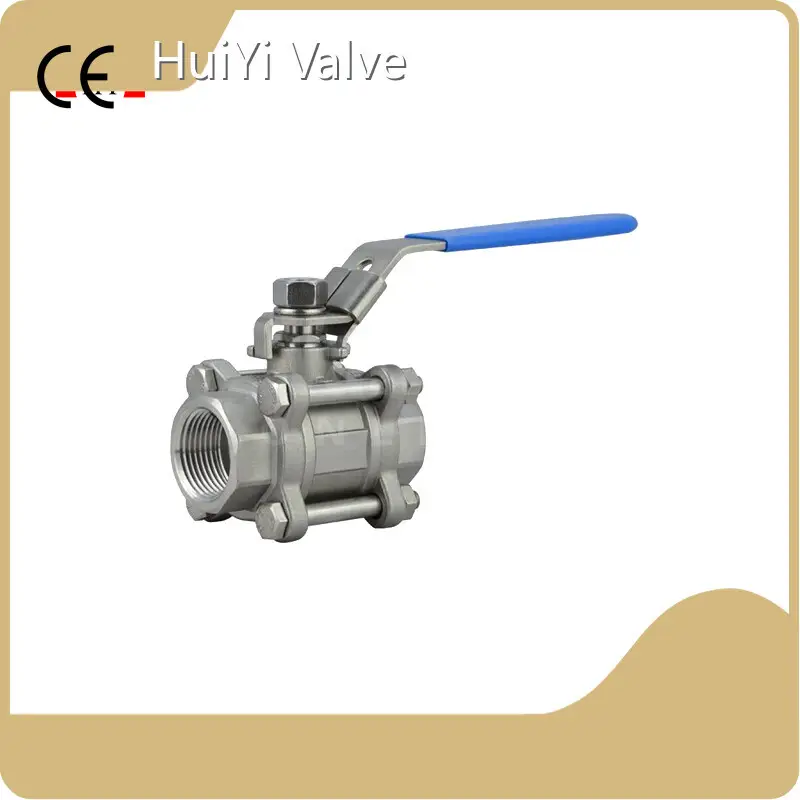

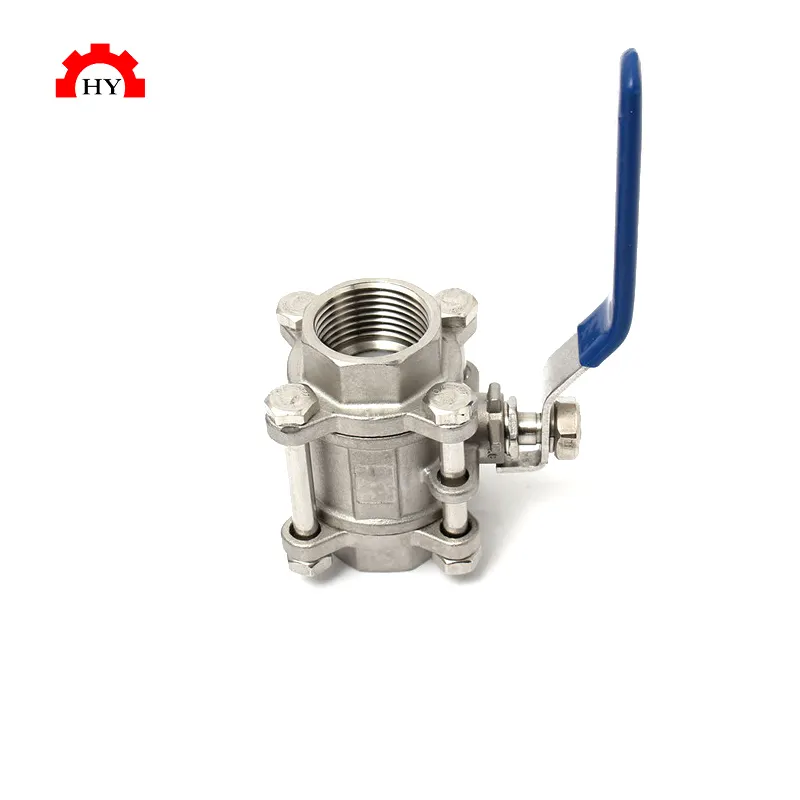

The 3-piece ball valve is composed of a main valve body and two auxiliary valve bodies, so it is called a 3-piece ball valve. After the ball core and valve stem are installed into the main valve body, the auxiliary valve body is installed into the valve seat, and the main and auxiliary valve bodies are connected as a whole through bolts. Its ball core flow channel is also full bore.
3-Piece Stainless Steel Ball Valves with PTFE Seals & Seats, Stainless Steel Ball Valves with PTFE (Teflon) Seats & Seals offer excellent corrosion resistance for most applications. Stainless Steel & PTFE work well in applications including but not limited to water, oil, gas/air, light alkali's and acids, biodiesel, fuels and alcohols. These ball valves are fitted with tight seals to ensure no leakage and a long lasting seal after many years of frequent usage. Available in both WOG200 and WOG1000. WOG200 are considered ideal for most general applications. WOG1000 are for high pressure and industrial applications where durability and lifetime longevity of the valve are preferred.
Product Parameters
|
Size |
∅ D(mm) |
L(mm) |
H(mm) |
E(mm) |
|
1/4” |
9.2 |
59 |
52 |
108 |
|
3/8” |
12.8 |
60 |
52 |
108 |
|
1/2” |
15 |
65.5 |
63 |
113 |
|
3/4” |
20 |
76.5 |
68 |
113 |
|
1” |
25 |
86.2 |
79 |
135 |
|
1-1/4” |
32 |
103.1 |
88 |
135 |
|
1-1/2” |
38 |
118 |
97 |
160 |
|
2” |
50 |
131.5 |
108 |
160 |
|
2-1/2” |
65 |
164.5 |
128 |
230 |
|
3” |
80 |
182.7 |
140 |
230 |
|
4” |
100 |
229.6 |
172 |
335 |
Product details
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle Cover |
Plastic |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Stem Washer |
304 |
|
5 |
Gland Nut |
304 |
|
6 |
Thrust Washer |
PTFE |
|
7 |
End Seal |
PTFE |
|
8 |
Bolt |
304 |
|
9 |
Bolt Nut |
304 |
|
10 |
Bolt Washer |
304 |
|
11 |
End Cap |
CF8/CF8M |
|
12 |
Body |
CF8/CF8M |
|
13 |
Ball |
CF8/CF8M |
|
14 |
Ball Seat |
PTFE |
|
15 |
Stem Packing |
PTFE |
|
16 |
Locking Device |
304 |
|
17 |
Handle |
304 |
Company Features
· Serving as a large scaled manufacturer for stainless steel ball valve, Wenzhou Huiyi Valve Technology Co.,Ltd ranks top in China.
· We have a long-term and stable stainless steel ball valve market in countries like the United States and Japan. By ceaselessly improving our product quality, types, and expanding application fields, we have established strategic cooperation with many well-known enterprises. We have export rights for our brand products. This license significantly eliminates the barrier to international trade. This license enables us to closely cooperate with overseas enterprises and expand our stainless steel ball valve markets. Our research and development team has been working for years in the stainless steel ball valve industry. They possess deep and insightful knowledge of the product market trends and a unique understanding of product development. We believe these characteristics help us achieve the broadening the product range and achieve excellence.
· HuiYi Valve now always holds the firm idea that customer satisfaction is in the first place. Please contact us!
Product Details
We value the quality of our products. And we strive for perfection in every detail of products. In this way, we guarantee the fine quality of our products.
Application of the Product
HuiYi Valve's stainless steel ball valve can be applied to different fields and scenes, which enables us to meet different requirements.
HuiYi Valve insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
