Pipe Fittings Manufacturer Inner Case Is Carton by HuiYi Valve

Working Temperature:
normal temperature, high temperature
Material:
Stainless Steel
Packing:
inner case is carton, outside package is plywood case
Transaction mode:
By sea, By air, By truck , By international express
Medium:
Oil, Gas, Water
Inquiry

Product details of the pipe fittings manufacturer


Quick Detail

HuiYi Valve pipe fittings manufacturer is constructed from well-chosen raw materials. HuiYi Valve conducts strict quality management system and the quality of this product is assured. pipe fittings manufacturer can be applied to different industries, fields and scenarios. Owing to the years of production experience, the product is guaranteed to be of superior quality.


Product Information

Compared with similar products, the pipe fittings manufacturer of HuiYi Valve is more strict in the selection of raw materials. The specific aspects are as follows.

Product details

图片2 (74)

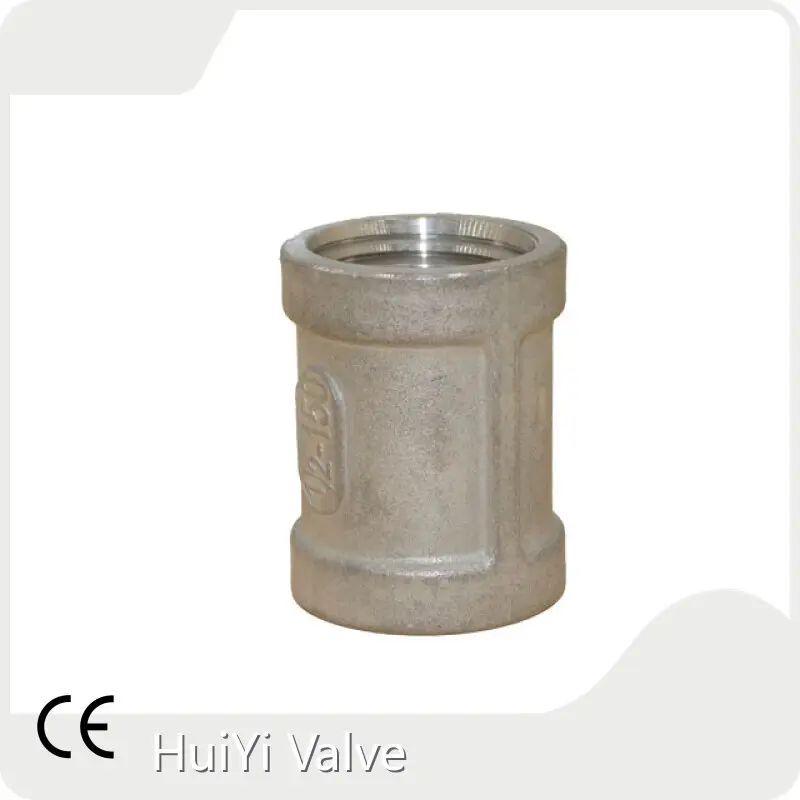

HY 150LB water ASME B16.11 standard NPT female couplings are a key component for water piping systems. Manufactured in accordance with ASME B16.11 standard, it ensures high quality and versatility, and can be accurately adapted to various types of fittings and valves in accordance with this standard. Its 150LB pressure rating can meet the pressure requirements of general water systems, whether it is municipal water supply pipelines or industrial water reuse systems in the low-pressure part of the system, can operate reliably.NPT female thread design provides good sealing performance, effectively preventing leakage of water in the process of water transmission, to protect the stability and safety of the entire water piping system, is to build an efficient and stable water transportation network indispensable components of quality. It is an indispensable component for building an efficient and stable water transportation network.

Product Overview

1. Standard compliance advantage:

● The products are manufactured in strict compliance with ASME B16.11 standard, which is widely recognized and adopted in the international industrial field. This means that the products comply with industry standards in terms of dimensional accuracy, material requirements, performance indicators, etc., and can be seamlessly connected with a large number of equipment and fittings that follow the same standard, which guarantees the compatibility and coordination of the entire piping system, and can be easily incorporated into both the integration and installation of newly built projects and the maintenance and replacement of existing systems, thus reducing the adaptation problems and potential risks due to the differences in standards.


2. Pressure adaptation advantage:

● 150LB pressure carrying capacity, accurately positioned in the water system common pressure range. For municipal water supply, general industrial water circulation and other common water transmission scenarios, it can stably withstand the working pressure, and will not cause structural damage or risk of leakage due to high pressure, nor will it cause unnecessary cost increase due to high pressure level. While ensuring safe and reliable operation, it achieves an optimal balance between performance and cost, providing an economical and practical connection solution for all types of water projects.


3. Thread sealing advantage:

● NPT female thread design has excellent self-sealing characteristics. Its tapered thread structure gradually squeezes the sealing surface during tightening, forming a tight fit and effectively preventing water leakage. Compared to some other thread forms, NPT threads exhibit excellent sealing reliability in water transfer, reducing the need for additional sealing materials (such as sealant tape or sealant), simplifying the installation process, and reducing the likelihood of leakage due to deterioration of sealing materials or improper installation, resulting in lower long-term maintenance costs and increased system stability.


4. Material and durability advantages:

● Built with high-quality materials with good water corrosion resistance and mechanical strength. In long-term contact with water, it can effectively resist the erosion caused by impurities, microorganisms and trace chemicals that may exist in the water, preventing the joints from rust, corrosion caused by structural deterioration and performance degradation. The sturdy material structure ensures that the joints can maintain stable connection performance under various working conditions, such as temperature changes, water impact, etc., which prolongs the service life of the product, reduces the frequency of replacement, and provides a strong support for the long-term stable operation of the water pipeline system.

Dimension

SIZE(INCH) D(MM) D(MM) B(MM) e(MM) A(MM)
1/8” 13.9 12.2 5.5 2.5 25
1/4” 16.9 14.9 6 2.5 25
3/8” 20.2 18.4 6 2.5 30
1/2” 26.9 24.9 6 3 35
3/4” 31.9 29.9 7 3 39
1" 39.9 37.9 8 3 44
1-1/4” 48.9 46.4 9 3.5 50
1-1/2” 55.4 52.9 10 3.5 54
2" 67.4 64.9 11 4 63
2-1/2” 84.5 82 14 4 71.5
3" 98.5 95.5 15 4.5 77
4" 124 121 17 5 86

FAQ

1
How many is the MOQ ?
50 pcs
2
How long is the delivery time ?
It depends on the quantity Small quantity order , 7-15 days Mass quantity order , 20-30 days
3
What is the payment term ?
30% T/T before production, the balance before shipment 50% T/T before production , the balance is paid after customers see the copy of sea B/L 100% L/C at sight For other payment terms , we can discuss
4
What payment method you have ?
We can accept payment via paypal , western union , T/T , L/C
5
How long is the guarantee period ?
The guarantee period is 12 months after the goods arrive in customers’ company , or 18 months after the goods are shipped from our company
6
If there is quality problem , then how can you solve it ?
During the guarantee period , if there are quality problems , please contact us , we will take positive action , the solution is that , if we can repair , then we repair , if we can not repair , then we will send new items to customers to replace unqualified items , customers do not need to send us the unqualified items .
7
Do you have OEM/ODM service ?
Yes, we have OEM/ODM service , we can put your logo on our products by laser marking .
8
How can we know your product quality ?
At first , we can send you free samples , you check our quality , then you can place small order to check the quality again , if the quality is ok , then you place bulk order .
9
For the customized products , how can you make sure the quality ?
We will make samples as per your drawing or sample first , after get your approval , then we start to arrange mass production .
10
What is the shipping method ?
Small quantity products usually are shipped by international express or air logistic , if large quantity , we will ship them by sea .
