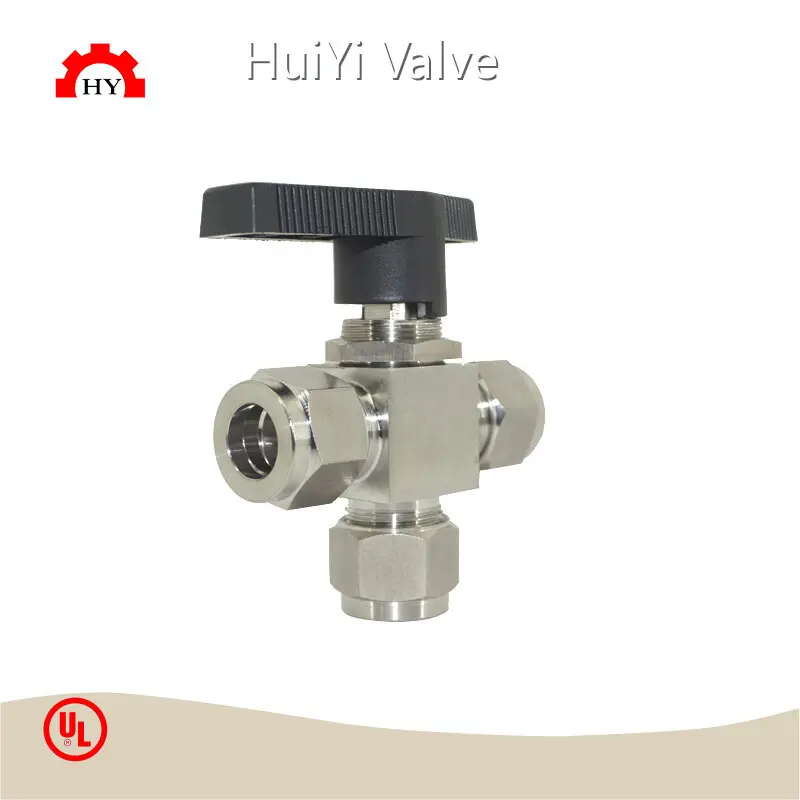

Instrumentation Ball Valves Stainless Steel - - HuiYi Valve
Product details of the instrumentation ball valves
Quick Overview
This kind of instrumentation ball valves is designed by our professional team who have been specialized in this field for years. The product has an internationally-certified quality and has a longer service life compared with others. Wenzhou Huiyi Valve Technology Co.,Ltd has advanced production equipment and process production lines.
Product Introduction
Compared with the instrumentation ball valves of our peers, the instrumentation ball valves we produce is provided with the following advantages.
Structural features
1. The fluid resistance is small, and its resistance coefficient is equal to that of the pipe section of the same length.
2. Simple structure, small size and light weight.
3. It is tight and reliable. At present, the sealing surface material of ball valve is widely used plastic, which has good sealing performance, and has also been widely used in vacuum system.
4. Easy to operate, quick to open and close, just rotate 90° from fully open to fully closed
5. The maintenance is convenient, the ball valve has a simple structure, the sealing ring is generally movable, and it is more convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surfaces of the ball and the valve seat are isolated from the medium, and when the medium passes through, the valve sealing surface will not be eroded.
7. It has a wide range of applications, with diameters ranging from small to several millimeters to several meters, and can be applied from high vacuum to high pressure.
Dimension
|
Connection |
Ordering Number |
Orifice (mm) |
Cv |
Size (mm) |
||||||||
|
Inlet/Outlet |
Size |
|
A |
B |
C |
D |
F |
G |
H |
I |
||
|
Inch tube |
1/16” |
Q94SAF-1/16 |
1.3 |
0.08 |
20.8 |
41.6 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
20.0 |
|
1/8” |
Q94SAF-1/8 |
2.6 |
0.2 |
25.7 |
51.4 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
24.8 |
|
|
1/4” |
Q94SAF-1/4 |
2.6 |
0.2 |
28.1 |
56.2 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
27.3 |
|
|
Q94SAF1-1/4 |
4.2 |
0.9 |
30.5 |
61.0 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
27.6 |
||
|
3/8” |
Q94SAF-3/8 |
4.2 |
0.9 |
32.0 |
64.0 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
29.1 |
|
|
1/2” |
Q94SAF-1/2 |
10.0 |
4.6 |
44.2 |
88.4 |
61.7 |
76.2 |
17.5 |
9.7 |
38.1 |
44.2 |
|
|
3/4” |
Q94SAF-3/4 |
10.0 |
3.8 |
44.2 |
88.4 |
61.7 |
76.2 |
17.5 |
9.7 |
38.1 |
44.2 |
|
|
Metric tube |
3mm |
Q94SAF-3M |
2.6 |
0.2 |
25.7 |
51.4 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
24.7 |
|
6mm |
Q94SAF-6M |
2.6 |
0.2 |
27.9 |
55.8 |
37.3 |
30.0 |
8.6 |
4.4 |
15.1 |
27.2 |
|
|
Q94SAF1-6M |
4.2 |
0.9 |
30.5 |
61.0 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
27.5 |
||
|
8mm |
Q94SAF-8M |
4.2 |
0.9 |
31.2 |
62.4 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
28.4 |
|
|
10mm |
Q94SAF-10M |
4.2 |
0.9 |
32.2 |
64.4 |
41.6 |
40.0 |
11.2 |
4.8 |
19.8 |
29.4 |
|
|
12mm |
Q94SAF-12M |
10.0 |
4.6 |
42.2 |
88.4 |
61.7 |
76.2 |
17.5 |
9.7 |
38.1 |
44.2 |
|
Product details
Main Parts
| No. | Part Name | Material |
| 1 | Handle | Plastic |
| 2 | Stem Nut | 316/304 |
| 3 | Stem | 304 |
| 4 | Body | 316/304 |
| 5 | Ball | 316/304 |
| 6 | Ball Seat | PTFE |
| 7 | Stem Packing | PTFE |
Company Information
Wenzhou Huiyi Valve Technology Co.,Ltd has supplied a range of customers for many years. We are specialized in the production of instrumentation ball valves. Our stringent quality control protocols guarantee that our instrumentation ball valves fit and perform flawlessly, piece after piece. HuiYi Valve is committed to the support of sustainable business practices. Ask online!
We value honesty greatly and always keep the promise. And our products are complete in kinds and reliable in quality. If you have any needs, feel free to contact us at any time.
