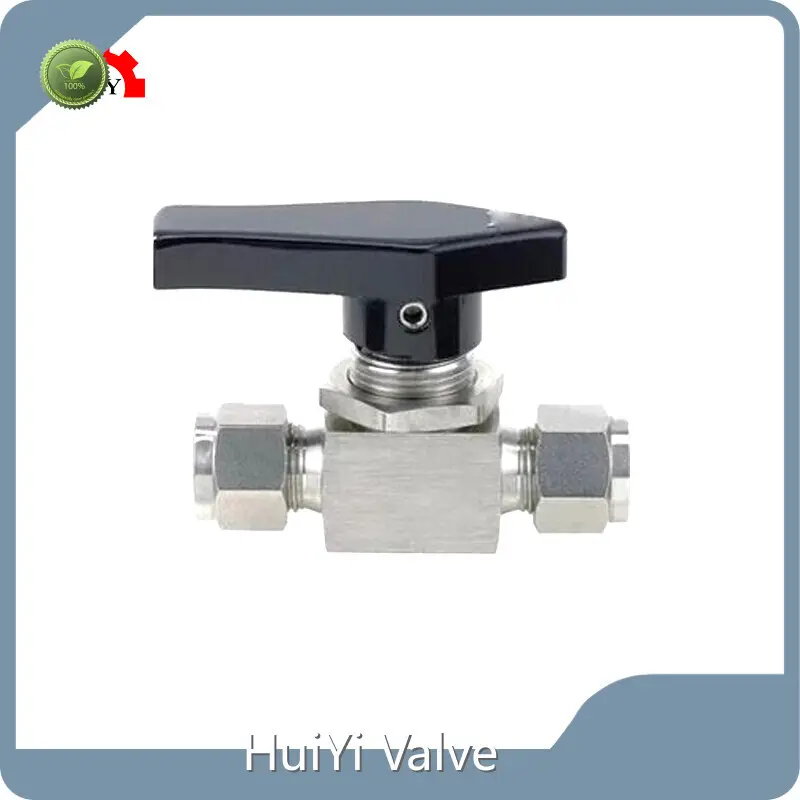

Instrumentation Ball Valves Q91SAF by HuiYi Valve 1
Instrumentation Ball Valves Q91SAF by HuiYi Valve 2
Instrumentation Ball Valves Q91SAF by HuiYi Valve 3
Instrumentation Ball Valves Q91SAF by HuiYi Valve 4
Instrumentation Ball Valves Q91SAF by HuiYi Valve 5
Instrumentation Ball Valves Q91SAF by HuiYi Valve 6
Instrumentation Ball Valves Q91SAF by HuiYi Valve 1
Instrumentation Ball Valves Q91SAF by HuiYi Valve 2
Instrumentation Ball Valves Q91SAF by HuiYi Valve 3
Instrumentation Ball Valves Q91SAF by HuiYi Valve 4
Instrumentation Ball Valves Q91SAF by HuiYi Valve 5
Instrumentation Ball Valves Q91SAF by HuiYi Valve 6

Instrumentation Ball Valves Q91SAF by HuiYi Valve

Size:
1/8" to 1"
Working Pressure:
1000 PSI to 6000 PSI
Working Temperature:
Normal temperature
Model:
Q91SAF
Ball:
F304 F316 F304L F316L
Inquiry

Product details of the instrumentation ball valves


Product Description

Quality materials, skilled distillers and great attention to detail are the essential elements of instrumentation ball valves. A series of quality tests are conducted on the entire range to seek out any possible defect. This product has received the trust and praise of the majority of users in the industry.

Product Description

Ball valves are suitable for controlling the opening and closing devices of medium and small diameter pipelines under various pressures, temperatures, and media to connect or cut off pipeline media; By relying on the medium pressure to press the ball onto the outlet valve seat, its usage pressure and diameter are limited to a certain extent. It adopts a 90 degree drive, making it convenient and fast to switch, and can be quickly opened and closed.

The working principle of the ferrule joint is to insert the steel pipe into the ferrule, lock it with the ferrule nut, resist the ferrule, and cut into the pipe to seal.

It does not need to be welded when it is connected with steel pipes, which is beneficial to fireproof, explosion-proof and high-altitude operations, and can eliminate the disadvantages caused by inadvertent welding.

Therefore, it is a relatively advanced connecting piece in the pipeline of automatic control systems such as refining, chemical, petroleum, natural gas, food, pharmaceutical, instrumentation and the like.

Suitable for pipeline connection of oil, gas and water.

Dimension

Connection

Ordering Number

Orifice (mm)

Cv

Size (mm)

Inlet/Outlet

Size

Straight

Angle

A

B

C

D

E

F

G

H

I

Inch tube

1/16”

Q91SAF-1/16

1.3

0.1

0.08

20.8

41.6

37.3

30.0

7.5

8.6

4.4

15.1

20.0

1/8”

Q91SAF-1/8

2.6

0.3

0.2

25.7

51.4

37.3

30.0

7.5

8.6

4.4

15.1

24.8

1/4”

Q91SAF-1/4

2.6

0.3

0.2

28.1

56.2

37.3

30.0

7.5

8.6

4.4

15.1

27.3

Q91SAF1-1/4

4.2

1.4

0.9

30.5

61.0

41.6

40.0

9.7

11.2

4.8

19.8

27.6

3/8”

Q91SAF-3/8

4.2

1.5

0.9

32.0

64.0

41.6

40.0

9.7

11.2

4.8

19.8

29.1

Q91SAF1-3/8

7.0

6.0

2.0

38.6

77.2

52.6

50.8

14.2

14.2

9.7

28.6

36.3

1/2”

Q91SAF-1/2

10.0

12.0

4.6

49.8

99.6

61.7

76.2

17.5

17.5

9.7

38.1

44.2

3/4”

Q91SAF-3/4

10.0

6.4

3.8

49.8

99.6

61.7

76.2

17.5

17.5

9.7

38.1

44.2

Metric tube

3mm

Q91SAF-3M

2.6

0.3

0.2

25.5

51.0

37.3

30.0

7.5

8.6

4.4

15.1

24.7

6mm

Q91SAF-6M

2.6

0.3

0.2

28.0

56.0

37.3

30.0

7.5

8.6

4.4

15.1

27.2

Q91SAF1-6M

4.2

1.4

0.9

30.5

61.0

41.6

40.0

9.7

11.2

4.8

19.8

27.5

8mm

Q91SAF-8M

4.2

1.5

0.9

31.2

62.4

41.6

40.0

9.7

11.2

4.8

19.8

28.4

10mm

Q91SAF-10M

4.2

1.6

0.9

32.2

64.4

41.6

40.0

9.7

11.2

4.8

19.8

29.4

Q91SAF1-10M

7.0

6.0

2.0

38.9

77.8

52.6

50.8

14.2

14.2

9.7

28.6

36.3

12mm

Q91SAF-12M

10.0

12.0

4.6

49.8

99.6

61.7

76.2

17.5

17.5

9.7

38.1

44.2

Product details

图片1 (10)
图片1 (10)
图片2 (9)
图片2 (9)
图片3 (10)
图片3 (10)

Main Parts

No.

Part Name

Material

1

Handle

Plastic

2

Stem Nut

316/304

3

Stem

304

4

Body

316/304

5

Ball

316/304

6

Ball Seat

PTFE

7

Stem Packing

PTFE
