Hygienic Pipe Fittings HY-SSWT by HuiYi Valve
Product details of the hygienic pipe fittings
Product Introduction
Wenzhou Huiyi Valve Technology Co.,Ltd's R&D engineers use their professional technical knowledge to design high quality, high performance, high stability hygienic pipe fittings. The product is made through a process that involves rigorous quality testing, such as inspection of raw materials and finished products. Customers are rather positive to the market application of the product.
Product Description

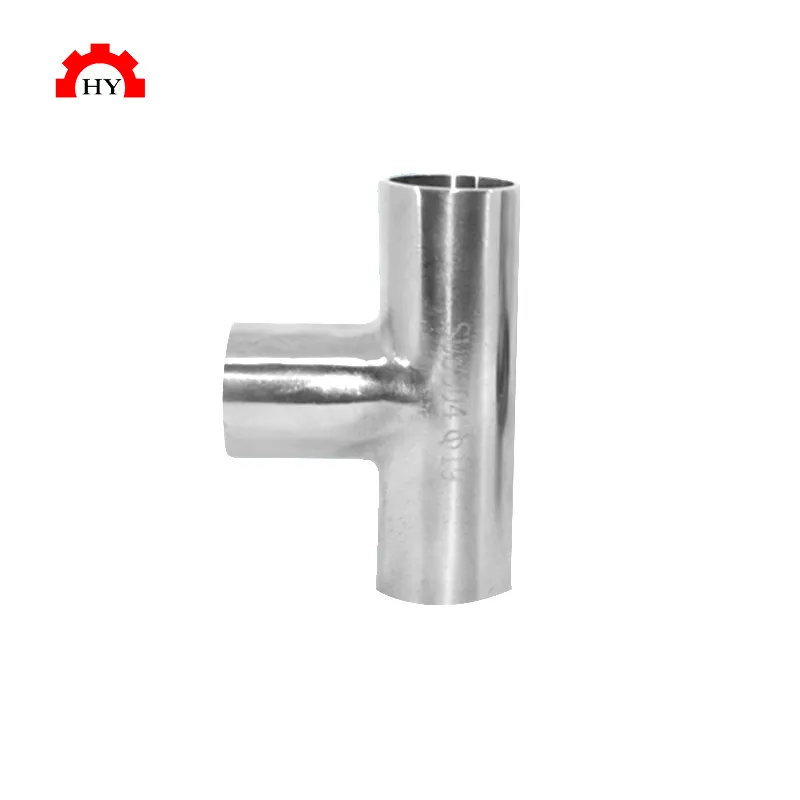

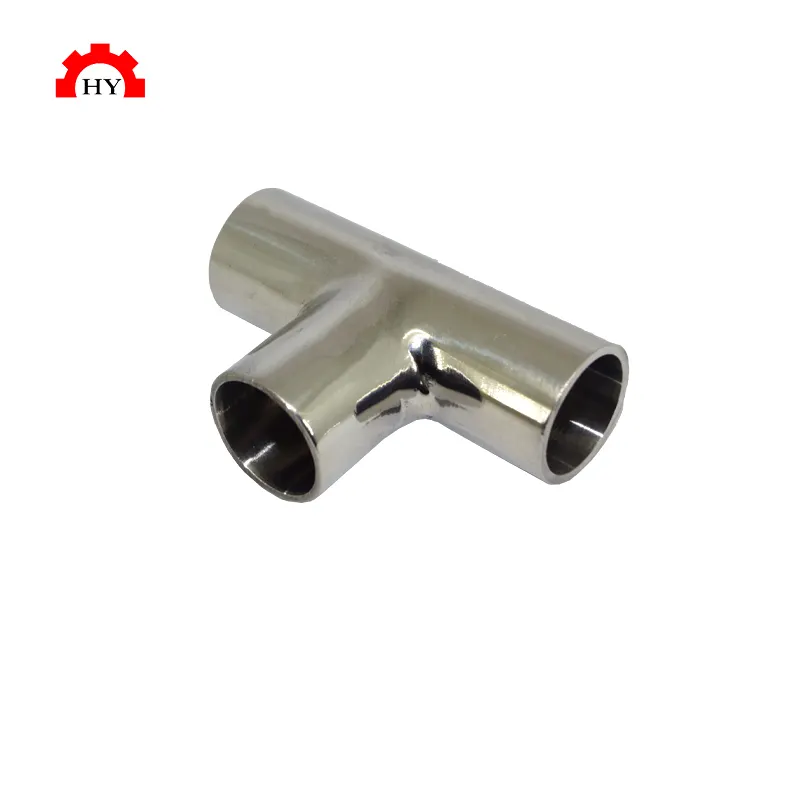

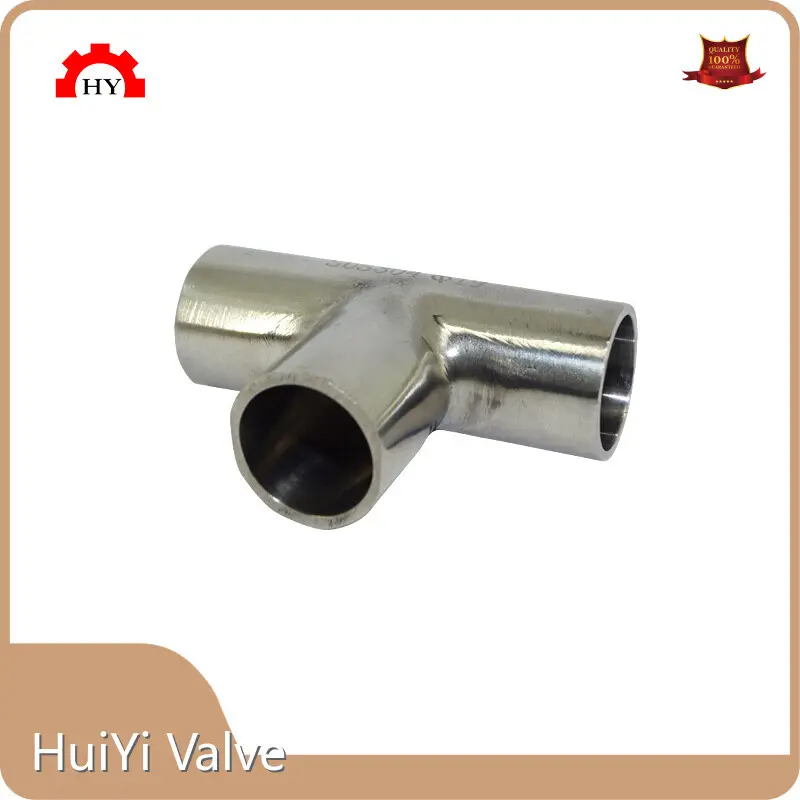

3 Way Sanitary Equal Short Tee Stainless Steel Weld Fitting
Stainless Steel 304/316L, Polished ID & OD, Ra - 0.8 um
Certified by 3-A Sanitary 63-03 standards for sanitary fitting
Material fully complies with 3-A standard, low carbon content, Material Test Certificate available with Heat number upon request
Dimension
|
SIZE(MM) |
D(MM) |
L1(MM) |
L2(MM) |
THICKNESS(MM) |
|
19 |
19 |
29.5 |
57 |
1.5 |
|
25 |
25 |
33.5 |
67 |
1.5 |
|
32 |
32 |
38 |
76 |
1.5 |
|
38 |
38 |
49 |
97 |
1.5 |
|
45 |
45 |
57.5 |
116 |
1.5 |
|
51 |
51 |
60.5 |
121 |
1.5 |
|
57 |
57 |
64.5 |
128 |
2 |
|
63 |
63 |
65 |
130 |
2 |
|
76 |
76 |
75 |
150 |
2 |
|
89 |
89 |
85.5 |
170 |
2 |
|
102 |
102 |
94 |
188 |
2 |
|
108 |
108 |
99 |
200 |
2 |
|
114 |
114 |
103 |
205 |
2 |
|
133 |
133 |
123.5 |
245 |
2 |
|
159 |
159 |
147.5 |
298 |
3 |
|
219 |
219 |
178.5 |
357 |
3 |
Product details
