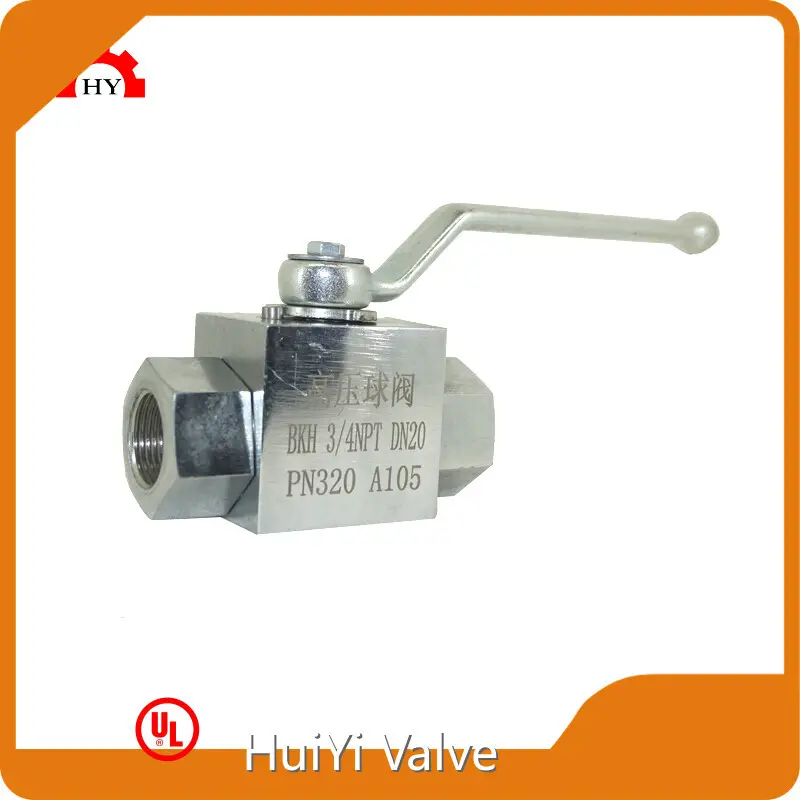

Hydro Valve Ball Valve HY-HP2BVFT by HuiYi Valve
Product details of the hydro valve ball valve
Product Description
The design of hydro valve ball valve has something of significance for the further development of HuiYi Valve. Its quality is effectively controlled with the help of our advanced production equipment. It has accumulated a large number of consumer groups, domestic and foreign brand resources.
Product Description
Non Rust Corrosion Resistance: The ball valve features a high-standard galvanized surface treatment and has passed a rigorous 144-hour salt spray test, ensuring that it remains rust-free for at least six years under normal working conditions.
Durable and Sturdy: Made of high-quality carbon steel, the product is subjected to strict manufacturing processes and 100% testing before leaving the factory, ensuring a long service life.
Widely Used: Hydraulic valves are applicable in a variety of industries including press machines, CNC lathes, automotive works, car repairs, hydraulic equipment, and petrochemical sectors. They are suitable for both residential and commercial uses, enhancing work efficiency.
Easy to Operate:The handle offers a straightforward and efficient flow control mechanism, allowing for easy operation even by users without technical expertise.
Exceptional Detail Quality:The valve features NPT (National Pipe Thread) threading, widely used and ensuring easy installation on a variety of equipment. Two additional are included to prevent leaks and keep clean when not in use.
Dimension
|
Connection |
Ordering number |
Orifice (mm) |
Cv |
Size(mm) |
|||||
|
Inlet/outlet |
Size |
A |
B |
C |
D |
E |
|||
|
Metric tube |
6mm |
HY-HP2BVFT-6M |
10 |
1.2 |
45.5 |
90.4 |
44 |
130 |
32 |
|
8mm |
HY-HP2BVFT-8M |
|
2.7 |
46.1 |
92.2 |
44 |
130 |
32 |
|
|
10mm |
HY-HP2BVFT-10M |
|
4.8 |
47.1 |
94.2 |
44 |
130 |
32 |
|
|
12mm |
HY-HP2BVFT-12M |
|
7.5 |
49.5 |
99 |
44 |
130 |
32 |
|
|
14mm |
HY-HP2BVFT-14M |
|
7.5 |
49.5 |
99 |
44 |
130 |
32 |
|
|
16mm |
HY-HP2BVFT-16M |
14 |
10 |
54 |
108 |
48 |
145 |
41 |
|
|
18mm |
HY-HP2BVFT-18M |
|
10 |
54.1 |
108.2 |
48 |
145 |
41 |
|
|
20mm |
HY-HP2BVFT-20M |
19 |
19 |
59.5 |
119 |
53 |
160 |
50 |
|
|
22mm |
HY-HP2BVFT-22M |
|
19 |
59.5 |
119 |
53 |
160 |
50 |
|
|
25mm |
HY-HP2BVFT-25M |
|
30 |
64 |
128 |
53 |
160 |
50 |
|
|
Inch tube |
1/4” |
HY-HP2BVFT-1/4 |
10 |
1.2 |
45.3 |
90.6 |
44 |
130 |
32 |
|
3/8” |
HY-HP2BVFT-3/8 |
10 |
3.7 |
46.8 |
93.6 |
44 |
130 |
32 |
|
|
1/2” |
HY-HP2BVFT-1/2 |
10 |
7.5 |
49.4 |
98.8 |
44 |
130 |
32 |
|
|
5/8” |
HY-HP2BVFT-5/8 |
14 |
10 |
53.8 |
107.6 |
48 |
145 |
41 |
|
|
3/4” |
HY-HP2BVFT-3/4 |
14 |
10 |
53.8 |
107.6 |
48 |
145 |
41 |
|
|
3/4” |
HY-HP2BVFT-3/4 |
19 |
19 |
59.4 |
118.8 |
53 |
160 |
50 |
|
|
1” |
HY-HP2BVFT-1 |
19 |
30 |
63.9 |
127.8 |
53 |
160 |
50 |
|
|
Female NPT |
1/4” |
HY-HP2BV-1/4 |
10 |
7.5 |
36 |
72 |
44 |
130 |
32 |
|
3/8” |
HY-HP2BV-3/8 |
10 |
7.5 |
36.7 |
73.4 |
44 |
130 |
32 |
|
|
1/2” |
HY-HP2BV-1/2 |
10 |
7.5 |
41.5 |
83 |
44 |
130 |
32 |
|
|
1/2 |
HY-HP2BV1-1/2 |
14 |
10 |
47.5 |
95 |
48 |
145 |
41 |
|
|
3/4” |
HY-HP2BV-3/4 |
14 |
10 |
47.5 |
95 |
48 |
145 |
41 |
|
|
3/4 |
HY-HP2BV1-3/4 |
19 |
30 |
48.1 |
96.2 |
53 |
160 |
50 |
|
|
1” |
HY-HP2BV-1 |
19 |
30 |
52.9 |
105.8 |
53 |
160 |
50 |
|
|
Male NPT |
1/4” |
10 |
3.7 |
41.7 |
83.4 |
44 |
130 |
32 |
|
|
3/8” |
HY-MHP2BV-3/8 |
10 |
7.2 |
41.7 |
83.4 |
44 |
130 |
32 |
|
|
1/2” |
HY-MHP2BV-1/2 |
10 |
7.5 |
46.5 |
93 |
44 |
130 |
32 |
|
|
1/2” |
HY-MHP2BV1-1/2 |
14 |
10 |
51 |
102 |
48 |
145 |
41 |
|
|
3/4” |
HY-MHP2BV-3/4 |
14 |
10 |
51 |
102 |
48 |
145 |
41 |
|
|
3/4” |
HY-MHP2BV1-3/4 |
19 |
19 |
56.5 |
113 |
53 |
160 |
50 |
|
|
1” |
HY-MHP2BV-1 |
19 |
30 |
61.4 |
122.8 |
53 |
160 |
50 |
|
Product details
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle |
316/304 |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Body |
316/304 |
|
5 |
Ball |
316/304 |
|
6 |
Ball Seat |
PTFE |
|
7 |
Stem Packing |
PTFE |
Company Advantage
• HuiYi Valve's are popular in the domestic market. They also enjoy a relatively high reputation in Southeast Asia, Europe, America, and other countries and regions.
• With a focus on talents cultivation, HuiYi Valve has an elite team equipped with abilities to create, learn and execute.
• HuiYi Valve enjoys an excellent geographical location with traffic convenience. They are a good foundation for our own development.
HuiYi Valve specializes in R&D and production of For more information, please feel free to contact us.
