Hydraulic Operated Ball Valve According to ANSI B16.34 by HuiYi Valve

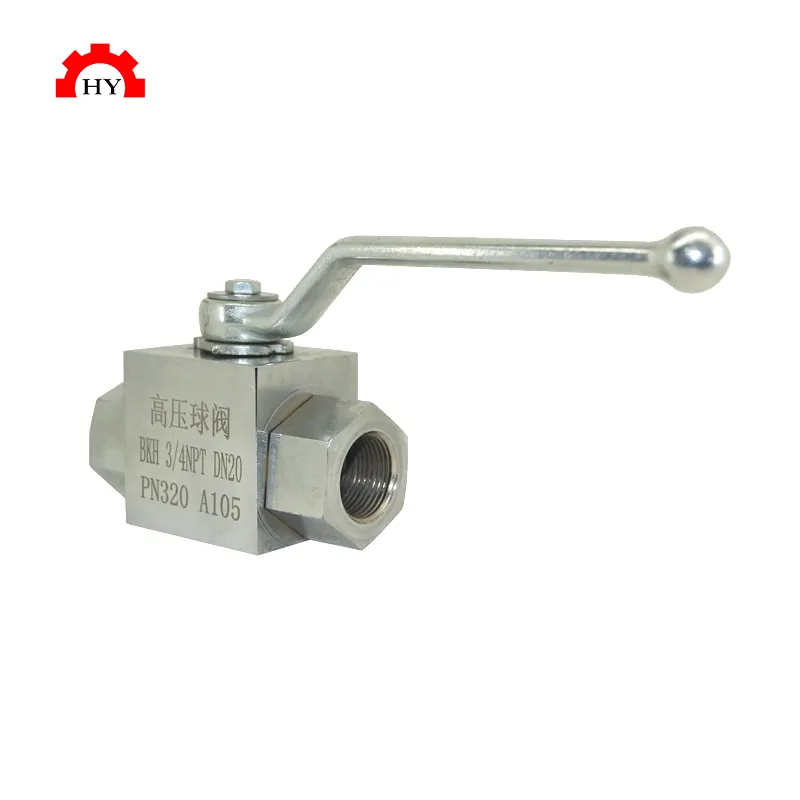

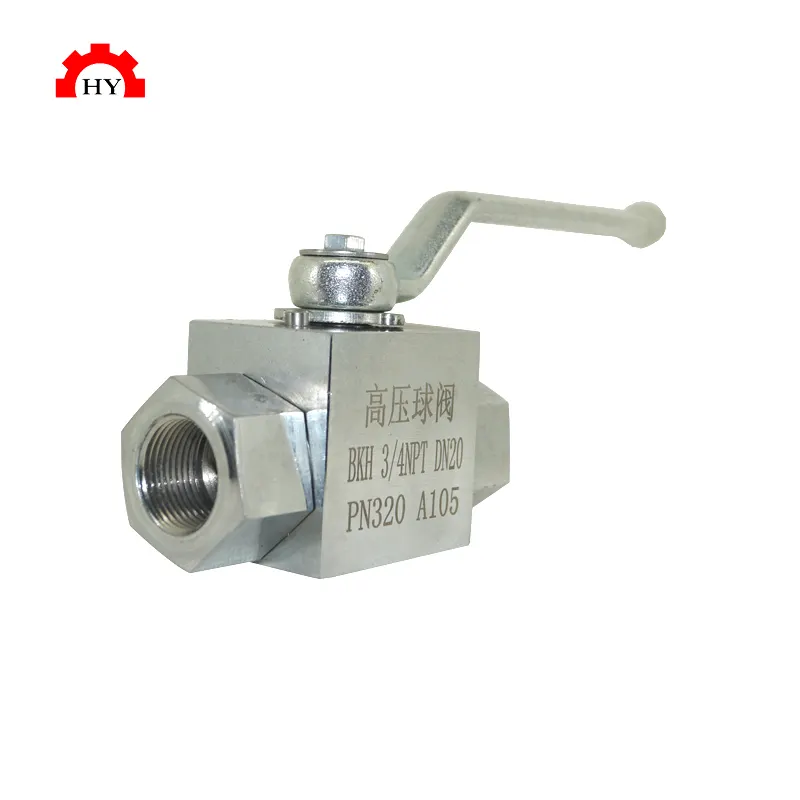

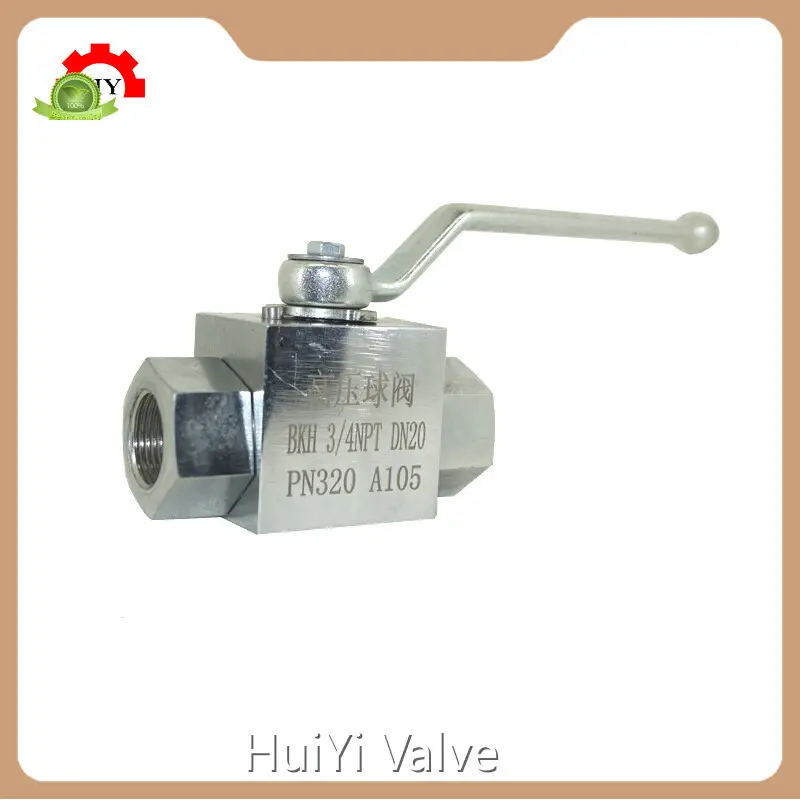

Product details of the hydraulic operated ball valve
Product Information
The design of HuiYi Valve hydraulic operated ball valve has been further strengthened. This product tends to have more superiorities in performance. Due to these features, it is extensively popular in the industry.
Product Description
Non Rust Corrosion Resistance: The ball valve features a high-standard galvanized surface treatment and has passed a rigorous 144-hour salt spray test, ensuring that it remains rust-free for at least six years under normal working conditions.
Durable and Sturdy: Made of high-quality carbon steel, the product is subjected to strict manufacturing processes and 100% testing before leaving the factory, ensuring a long service life.
Widely Used: Hydraulic valves are applicable in a variety of industries including press machines, CNC lathes, automotive works, car repairs, hydraulic equipment, and petrochemical sectors. They are suitable for both residential and commercial uses, enhancing work efficiency.
Easy to Operate:The handle offers a straightforward and efficient flow control mechanism, allowing for easy operation even by users without technical expertise.
Exceptional Detail Quality:The valve features NPT (National Pipe Thread) threading, widely used and ensuring easy installation on a variety of equipment. Two additional are included to prevent leaks and keep clean when not in use.
Dimension
|
Connection |
Ordering number |
Orifice (mm) |
Cv |
Size(mm) |
|||||
|
Inlet/outlet |
Size |
A |
B |
C |
D |
E |
|||
|
Metric tube |
6mm |
HY-HP2BVFT-6M |
10 |
1.2 |
45.5 |
90.4 |
44 |
130 |
32 |
|
8mm |
HY-HP2BVFT-8M |
|
2.7 |
46.1 |
92.2 |
44 |
130 |
32 |
|
|
10mm |
HY-HP2BVFT-10M |
|
4.8 |
47.1 |
94.2 |
44 |
130 |
32 |
|
|
12mm |
HY-HP2BVFT-12M |
|
7.5 |
49.5 |
99 |
44 |
130 |
32 |
|
|
14mm |
HY-HP2BVFT-14M |
|
7.5 |
49.5 |
99 |
44 |
130 |
32 |
|
|
16mm |
HY-HP2BVFT-16M |
14 |
10 |
54 |
108 |
48 |
145 |
41 |
|
|
18mm |
HY-HP2BVFT-18M |
|
10 |
54.1 |
108.2 |
48 |
145 |
41 |
|
|
20mm |
HY-HP2BVFT-20M |
19 |
19 |
59.5 |
119 |
53 |
160 |
50 |
|
|
22mm |
HY-HP2BVFT-22M |
|
19 |
59.5 |
119 |
53 |
160 |
50 |
|
|
25mm |
HY-HP2BVFT-25M |
|
30 |
64 |
128 |
53 |
160 |
50 |
|
|
Inch tube |
1/4” |
HY-HP2BVFT-1/4 |
10 |
1.2 |
45.3 |
90.6 |
44 |
130 |
32 |
|
3/8” |
HY-HP2BVFT-3/8 |
10 |
3.7 |
46.8 |
93.6 |
44 |
130 |
32 |
|
|
1/2” |
HY-HP2BVFT-1/2 |
10 |
7.5 |
49.4 |
98.8 |
44 |
130 |
32 |
|
|
5/8” |
HY-HP2BVFT-5/8 |
14 |
10 |
53.8 |
107.6 |
48 |
145 |
41 |
|
|
3/4” |
HY-HP2BVFT-3/4 |
14 |
10 |
53.8 |
107.6 |
48 |
145 |
41 |
|
|
3/4” |
HY-HP2BVFT-3/4 |
19 |
19 |
59.4 |
118.8 |
53 |
160 |
50 |
|
|
1” |
HY-HP2BVFT-1 |
19 |
30 |
63.9 |
127.8 |
53 |
160 |
50 |
|
|
Female NPT |
1/4” |
HY-HP2BV-1/4 |
10 |
7.5 |
36 |
72 |
44 |
130 |
32 |
|
3/8” |
HY-HP2BV-3/8 |
10 |
7.5 |
36.7 |
73.4 |
44 |
130 |
32 |
|
|
1/2” |
HY-HP2BV-1/2 |
10 |
7.5 |
41.5 |
83 |
44 |
130 |
32 |
|
|
1/2 |
HY-HP2BV1-1/2 |
14 |
10 |
47.5 |
95 |
48 |
145 |
41 |
|
|
3/4” |
HY-HP2BV-3/4 |
14 |
10 |
47.5 |
95 |
48 |
145 |
41 |
|
|
3/4 |
HY-HP2BV1-3/4 |
19 |
30 |
48.1 |
96.2 |
53 |
160 |
50 |
|
|
1” |
HY-HP2BV-1 |
19 |
30 |
52.9 |
105.8 |
53 |
160 |
50 |
|
|
Male NPT |
1/4” |
10 |
3.7 |
41.7 |
83.4 |
44 |
130 |
32 |
|
|
3/8” |
HY-MHP2BV-3/8 |
10 |
7.2 |
41.7 |
83.4 |
44 |
130 |
32 |
|
|
1/2” |
HY-MHP2BV-1/2 |
10 |
7.5 |
46.5 |
93 |
44 |
130 |
32 |
|
|
1/2” |
HY-MHP2BV1-1/2 |
14 |
10 |
51 |
102 |
48 |
145 |
41 |
|
|
3/4” |
HY-MHP2BV-3/4 |
14 |
10 |
51 |
102 |
48 |
145 |
41 |
|
|
3/4” |
HY-MHP2BV1-3/4 |
19 |
19 |
56.5 |
113 |
53 |
160 |
50 |
|
|
1” |
HY-MHP2BV-1 |
19 |
30 |
61.4 |
122.8 |
53 |
160 |
50 |
|
Product details
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle |
316/304 |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Body |
316/304 |
|
5 |
Ball |
316/304 |
|
6 |
Ball Seat |
PTFE |
|
7 |
Stem Packing |
PTFE |
