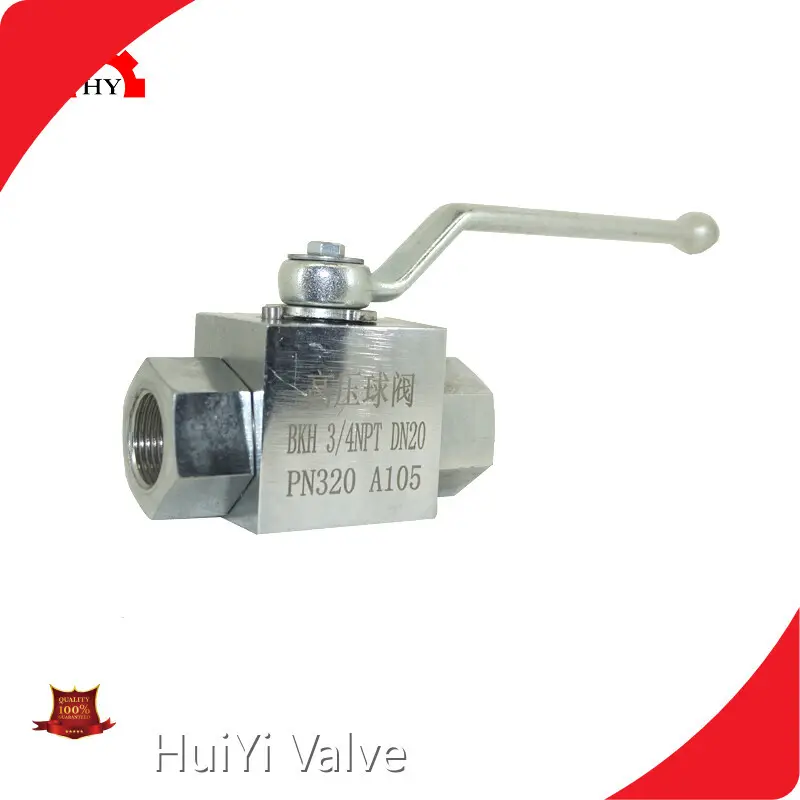

Product details of the hydraulic ball valves manufacturers
Quick Detail
The application of innovative technology gives HuiYi Valve hydraulic ball valves manufacturers an innovative design. Our professional team adopts a perfect quality testing system to guarantee the quality of this product. HuiYi Valve's hydraulic ball valves manufacturers is widely used in many industries. This product has been highly recommended with unparalleled economic benefits.
Product Information
HuiYi Valve's high-quality hydraulic ball valves manufacturers is produced according to the national standards. The specific details are as follows.
Product Description
Non Rust Corrosion Resistance: The ball valve features a high-standard galvanized surface treatment and has passed a rigorous 144-hour salt spray test, ensuring that it remains rust-free for at least six years under normal working conditions.
Durable and Sturdy: Made of high-quality carbon steel, the product is subjected to strict manufacturing processes and 100% testing before leaving the factory, ensuring a long service life.
Widely Used: Hydraulic valves are applicable in a variety of industries including press machines, CNC lathes, automotive works, car repairs, hydraulic equipment, and petrochemical sectors. They are suitable for both residential and commercial uses, enhancing work efficiency.
Easy to Operate:The handle offers a straightforward and efficient flow control mechanism, allowing for easy operation even by users without technical expertise.
Exceptional Detail Quality:The valve features NPT (National Pipe Thread) threading, widely used and ensuring easy installation on a variety of equipment. Two additional are included to prevent leaks and keep clean when not in use.
Dimension
Connection |
Ordering number |
Orifice (mm) |
Cv |
Size(mm) |
|||||
Inlet/outlet |
Size |
A |
B |
C |
D |
E |
|||
Metric tube |
6mm |
HY-HP2BVFT-6M |
10 |
1.2 |
45.5 |
90.4 |
44 |
130 |
32 |
8mm |
HY-HP2BVFT-8M |
|
2.7 |
46.1 |
92.2 |
44 |
130 |
32 |
|
10mm |
HY-HP2BVFT-10M |
|
4.8 |
47.1 |
94.2 |
44 |
130 |
32 |
|
12mm |
HY-HP2BVFT-12M |
|
7.5 |
49.5 |
99 |
44 |
130 |
32 |
|
14mm |
HY-HP2BVFT-14M |
|
7.5 |
49.5 |
99 |
44 |
130 |
32 |
|
16mm |
HY-HP2BVFT-16M |
14 |
10 |
54 |
108 |
48 |
145 |
41 |
|
18mm |
HY-HP2BVFT-18M |
|
10 |
54.1 |
108.2 |
48 |
145 |
41 |
|
20mm |
HY-HP2BVFT-20M |
19 |
19 |
59.5 |
119 |
53 |
160 |
50 |
|
22mm |
HY-HP2BVFT-22M |
|
19 |
59.5 |
119 |
53 |
160 |
50 |
|
25mm |
HY-HP2BVFT-25M |
|
30 |
64 |
128 |
53 |
160 |
50 |
|
Inch tube |
1/4” |
HY-HP2BVFT-1/4 |
10 |
1.2 |
45.3 |
90.6 |
44 |
130 |
32 |
3/8” |
HY-HP2BVFT-3/8 |
10 |
3.7 |
46.8 |
93.6 |
44 |
130 |
32 |
|
1/2” |
HY-HP2BVFT-1/2 |
10 |
7.5 |
49.4 |
98.8 |
44 |
130 |
32 |
|
5/8” |
HY-HP2BVFT-5/8 |
14 |
10 |
53.8 |
107.6 |
48 |
145 |
41 |
|
3/4” |
HY-HP2BVFT-3/4 |
14 |
10 |
53.8 |
107.6 |
48 |
145 |
41 |
|
3/4” |
HY-HP2BVFT-3/4 |
19 |
19 |
59.4 |
118.8 |
53 |
160 |
50 |
|
1” |
HY-HP2BVFT-1 |
19 |
30 |
63.9 |
127.8 |
53 |
160 |
50 |
|
Female NPT |
1/4” |
HY-HP2BV-1/4 |
10 |
7.5 |
36 |
72 |
44 |
130 |
32 |
3/8” |
HY-HP2BV-3/8 |
10 |
7.5 |
36.7 |
73.4 |
44 |
130 |
32 |
|
1/2” |
HY-HP2BV-1/2 |
10 |
7.5 |
41.5 |
83 |
44 |
130 |
32 |
|
1/2 |
HY-HP2BV1-1/2 |
14 |
10 |
47.5 |
95 |
48 |
145 |
41 |
|
3/4” |
HY-HP2BV-3/4 |
14 |
10 |
47.5 |
95 |
48 |
145 |
41 |
|
3/4 |
HY-HP2BV1-3/4 |
19 |
30 |
48.1 |
96.2 |
53 |
160 |
50 |
|
1” |
HY-HP2BV-1 |
19 |
30 |
52.9 |
105.8 |
53 |
160 |
50 |
|
Male NPT |
1/4” |
10 |
3.7 |
41.7 |
83.4 |
44 |
130 |
32 |
|
3/8” |
HY-MHP2BV-3/8 |
10 |
7.2 |
41.7 |
83.4 |
44 |
130 |
32 |
|
1/2” |
HY-MHP2BV-1/2 |
10 |
7.5 |
46.5 |
93 |
44 |
130 |
32 |
|
1/2” |
HY-MHP2BV1-1/2 |
14 |
10 |
51 |
102 |
48 |
145 |
41 |
|
3/4” |
HY-MHP2BV-3/4 |
14 |
10 |
51 |
102 |
48 |
145 |
41 |
|
3/4” |
HY-MHP2BV1-3/4 |
19 |
19 |
56.5 |
113 |
53 |
160 |
50 |
|
1” |
HY-MHP2BV-1 |
19 |
30 |
61.4 |
122.8 |
53 |
160 |
50 |
Product details
Main Parts
No. |
Part Name |
Material |
1 |
Handle |
316/304 |
2 |
Stem Nut |
316/304 |
3 |
Stem |
304 |
4 |
Body |
316/304 |
5 |
Ball |
316/304 |
6 |
Ball Seat |
PTFE |
7 |
Stem Packing |
PTFE |
Company Information
Wenzhou Huiyi Valve Technology Co.,Ltd is a company that focuses on the business of Taking 'science and technology innovation' as the driving force of development, Wenzhou Huiyi Valve Technology Co.,Ltd provides better products and more satisfactory services for customers, with the help of efficient team, strict quality management system and years of in-depth understanding of the industry. Our team is composed of a group of senior staff in the industry. Each technician has a spirit of profession and dedication. In the early stage, we conduct a communication survey to gain an in-depth understanding of the customer's problems. Therefore, we can develop solutions that best suit the customers based on the results of the communication survey.
Welcome all customers in need to purchase our products.
