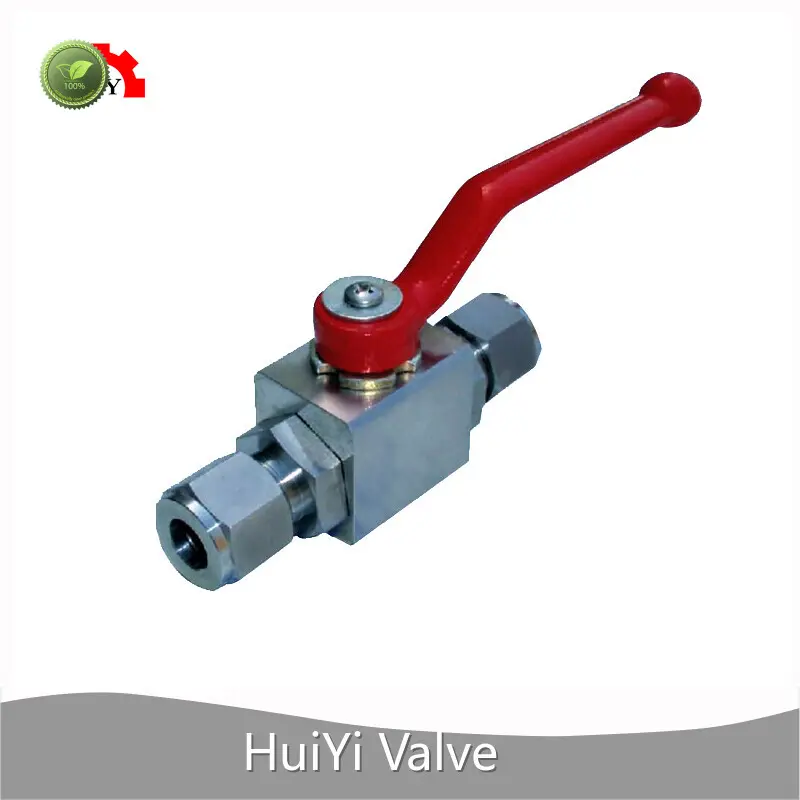

Hydraulic Ball Valves High Pressure PEEK by HuiYi Valve 1

Hydraulic Ball Valves High Pressure PEEK by HuiYi Valve 2

Hydraulic Ball Valves High Pressure PEEK by HuiYi Valve

Working Pressure:

1000 PSI to 10000 PSI

Delivery time:

7-20 days

Transaction mode:

By sea, By air, By truck , By international express

Seat:

PTFE,PEEK

Medium:

Oil, Gas, Water

Inquiry

more products

Valve

Pipe Fittings

Send your inquiry

Product details of the hydraulic ball valves high pressure

Product Description

HuiYi Valve hydraulic ball valves high pressure is fabricated using premium quality raw material and latest technology accordance to the various needs of the clients. The quality of the product is reliable as it is in compliance with industry standards. Without consideration of the HuiYi Valve staff, hydraulic ball valves high pressure can not be produced to be so excellent.

Product details

“HY 2-Way Double Ferrules Hydraulic Ball Valve 1/8”-1

“High Pressure Gas and Liquid Ball Valve with Double Ferrules”

Product Overview

HY brand 2-Way 1/8"-1" 3000 PSI 6000 PSI double joint hydraulic ball valve is designed for high-pressure gas and liquid pipelines, providing precise flow control and reliable sealing performance. This ball valve adopts a double joint design to ensure safety and durability in extreme high-pressure environments.

Advantages and features

● Size Diversity: Provide a variety of size options from 1/8" to 1", suitable for different pipe diameters.

● High Pressure Capacity: Able to withstand working pressures up to 3000 PSI to 6000 PSI, suitable for high-pressure gas and liquid media.

● Double Joint Design: Unique double joint structure to enhance the stability and safety of the connection.

● Material: High-strength, corrosion-resistant materials are selected for various harsh environments.

● Wide application: Suitable for high-pressure fluid control occasions such as petroleum, chemical, natural gas, hydraulic systems, etc.

● Safe and reliable: The double joint design reduces the risk of leakage and ensures safe operation.

● Easy to install: Quick connection and disassembly, simplifying the installation and maintenance process.

● Strong durability: high-quality materials ensure long-term stable operation under high-pressure environment.

● Fluid compatibility: suitable for a variety of gas and liquid media.

Dimension

Connection		Ordering number	Orifice (mm)	Cv	Size(mm)
Inlet/outlet	Size	Ordering number	Orifice (mm)	Cv	A	B	C	D	E
Metric tube	6mm	HY-HP2BVFT-6M	10	1.2	45.5	90.4	44	130	32
	8mm	HY-HP2BVFT-8M		2.7	46.1	92.2	44	130	32
	10mm	HY-HP2BVFT-10M		4.8	47.1	94.2	44	130	32
	12mm	HY-HP2BVFT-12M		7.5	49.5	99	44	130	32
	14mm	HY-HP2BVFT-14M		7.5	49.5	99	44	130	32
	16mm	HY-HP2BVFT-16M	14	10	54	108	48	145	41
	18mm	HY-HP2BVFT-18M	14	10	54.1	108.2	48	145	41
	20mm	HY-HP2BVFT-20M	19	19	59.5	119	53	160	50
	22mm	HY-HP2BVFT-22M		19	59.5	119	53	160	50
	25mm	HY-HP2BVFT-25M		30	64	128	53	160	50
Inch tube	1/4”	HY-HP2BVFT-1/4	10	1.2	45.3	90.6	44	130	32
	3/8”	HY-HP2BVFT-3/8	10	3.7	46.8	93.6	44	130	32
	1/2”	HY-HP2BVFT-1/2	10	7.5	49.4	98.8	44	130	32
	5/8”	HY-HP2BVFT-5/8	14	10	53.8	107.6	48	145	41
	3/4”	HY-HP2BVFT-3/4	14	10	53.8	107.6	48	145	41
	3/4”	HY-HP2BVFT-3/4	19	19	59.4	118.8	53	160	50
	1”	HY-HP2BVFT-1	19	30	63.9	127.8	53	160	50
Female NPT	1/4”	HY-HP2BV-1/4	10	7.5	36	72	44	130	32
	3/8"	HY-HP2BV-3/8	10	7.5	36.7	73.4	44	130	32
	1/2”	HY-HP2BV-1/2	10	7.5	41.5	83	44	130	32
	1/2”	HY-HP2BV1-1/2	14	10	47.5	95	48	145	41
	3/4"	HY-HP2BV-3/4	14	10	47.5	95	48	145	41
	3/4"	HY-HP2BV1-3/4	19	30	48.1	96.2	53	160	50
	1”	HY-HP2BV-1	19	30	52.9	105.8	53	160	50
Male NPT	1/4"	HY-MHP2BV-1/4	10	3.7	41.7	83.4	44	130	32
	3/8"	HY-MHP2BV-3/8	10	7.2	41.7	83.4	44	130	32
	1/2”	HY-MHP2BV-1/2	10	7.5	46.5	93	44	130	32
	1/2”	HY-MHP2BV1-1/2	14	10	51	102	48	145	41
	3/4"	HY-MHP2BV-3/4	14	10	51	102	48	145	41
	3/4"	HY-MHP2BV1-3/4	19	19	56.5	113	53	160	50
	1”	HY-MHP2BV-1	19	30	61.4	122.8	53	160	50

Main Parts

No.	Part Name	Material
1	Handle	Plastic
2	Stem Nut	316/304
3	Stem	304
4	Body	316/304
5	Ball	316/304
6	Ball Seat	PTFE
7	Stem Packing	PTFE

FAQ

How many is the MOQ ?

10 pcs

How long is the delivery time ?

It depends on the quantity Small quantity order , 7-15 days Mass quantity order , 20-30 days

What is the payment term ?

30% T/T before production, the balance before shipment 50% T/T before production , the balance is paid after customers see the copy of sea B/L 100% L/C at sight For other payment terms , we can discuss

What payment method you have ?

We can accept payment via paypal , western union , T/T , L/C

How long is the guarantee period ?

The guarantee period is 12 months after the goods arrive in customers’ company , or 18 months after the goods are shipped from our company

If there is quality problem , then how can you solve it ?

During the guarantee period , if there are quality problems , please contact us , we will take positive action , the solution is that , if we can repair , then we repair , if we can not repair , then we will send new items to customers to replace unqualified items , customers do not need to send us the unqualified items .

Do you have OEM/ODM service ?

Yes, we have OEM/ODM service , we can put your logo on our products by laser marking .

How can we know your product quality ?

At first , we can send you free samples , you check our quality , then you can place small order to check the quality again , if the quality is ok , then you place bulk order .

For the customized products , how can you make sure the quality ?

We will make samples as per your drawing or sample first , after get your approval , then we start to arrange mass production .

What is the shipping method ?

Small quantity products usually are shipped by international express or air logistic , if large quantity , we will ship them by sea .
