Hose Thread Adapter Stainless Steel - - HuiYi Valve
Product Description

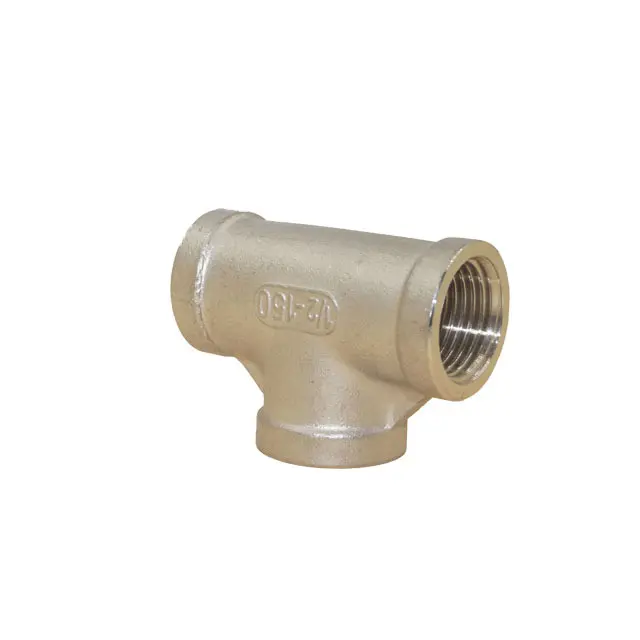

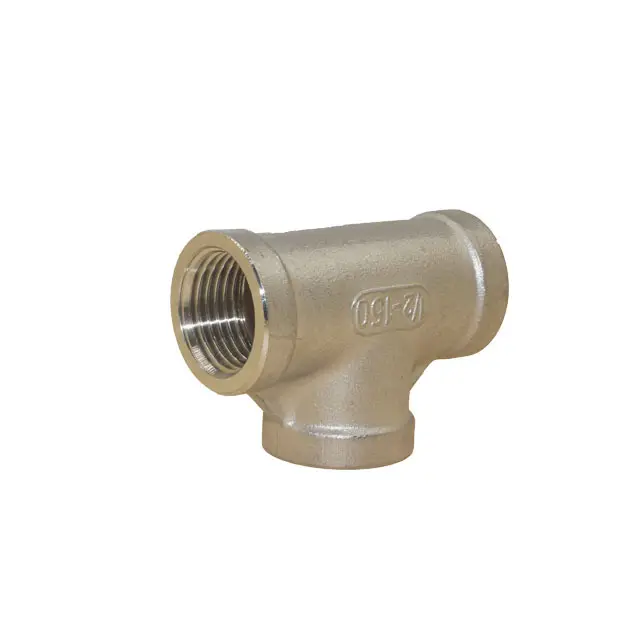

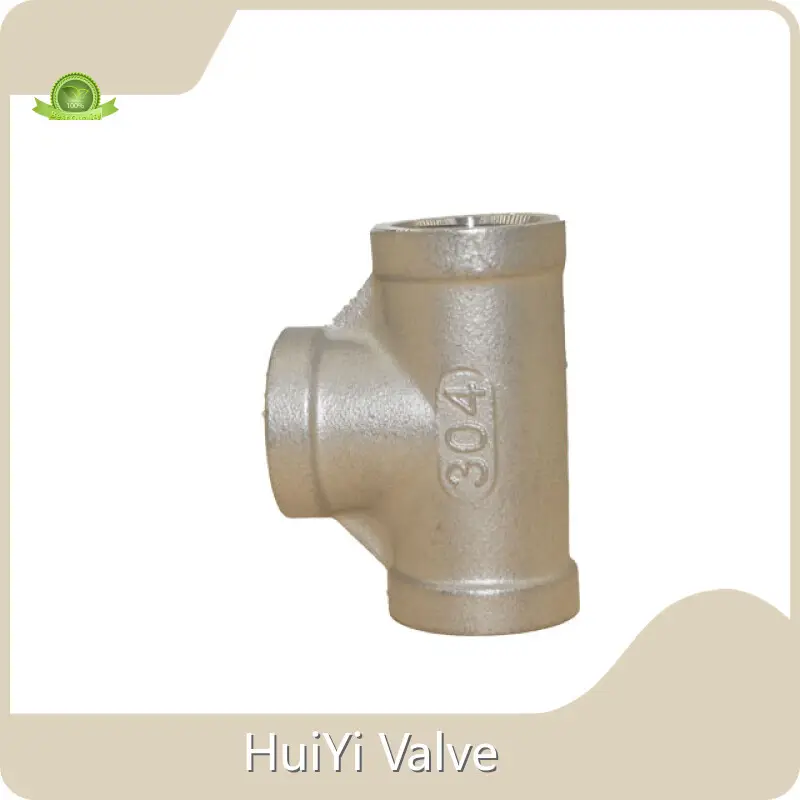

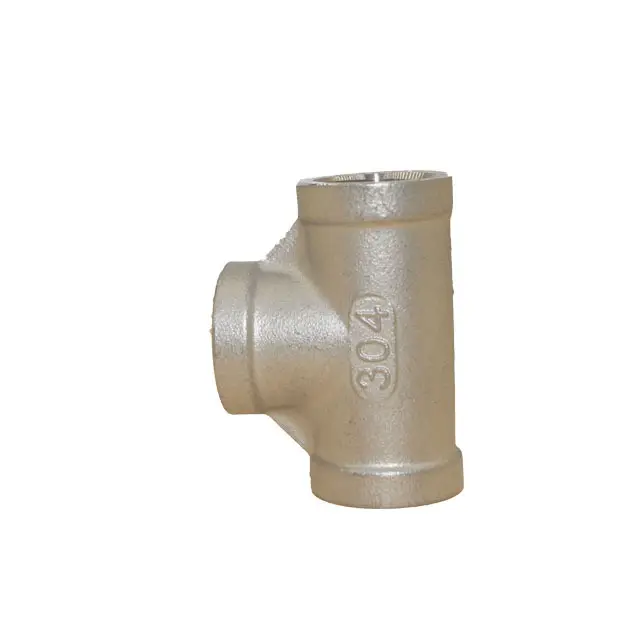

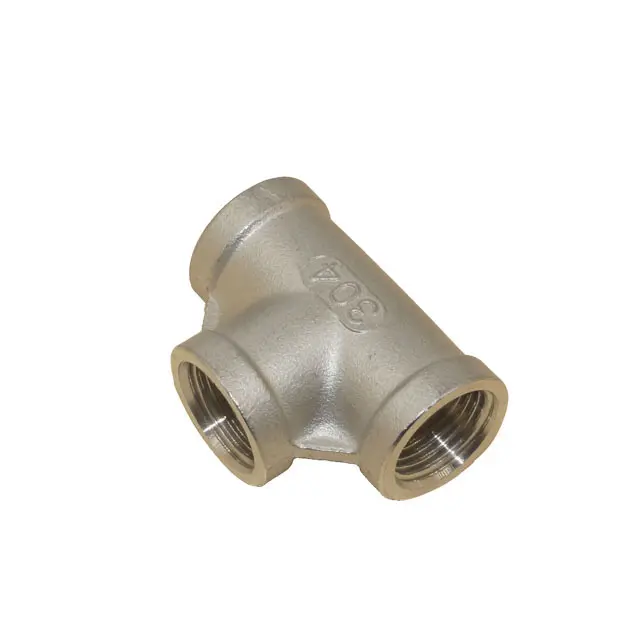

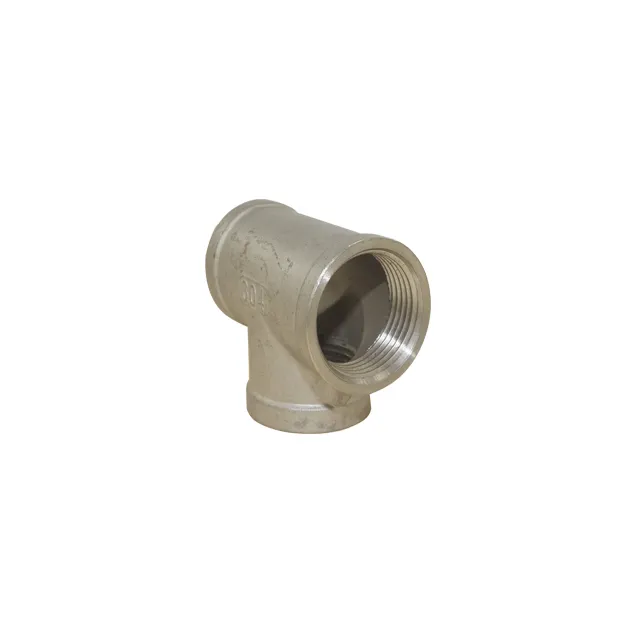

Tee shape with 3 ways to connect and branch three sections of pipe.
Made of greater strength stainless steel, using durably.
Suitable for Male threaded pipe.
Operating temperature: range from -65 to 250 degrees F.
Maximum working pressure: 150 pounds per square inch.
Dimension
|
SIZE |
D(INCH) |
d(MM) |
C(MM) |
A(MM) |
|
1/8” |
13.9 |
12.2 |
5.5 |
17 |
|
1/4” |
16.9 |
14.9 |
6 |
19 |
|
3/8” |
20.2 |
18.4 |
6 |
23 |
|
1/2” |
26.9 |
24.9 |
6 |
27 |
|
3/4” |
31.9 |
29.9 |
7 |
31.5 |
|
1” |
39.9 |
37.9 |
8 |
36.5 |
|
1-1/4” |
48.9 |
46.4 |
9 |
42.5 |
|
1-1/2” |
55.4 |
52.9 |
10 |
47.5 |
|
2” |
67.4 |
64.9 |
11 |
56 |
|
2-1/2” |
84.5 |
82 |
13 |
68 |
|
3” |
98.5 |
95.5 |
15 |
77.5 |
