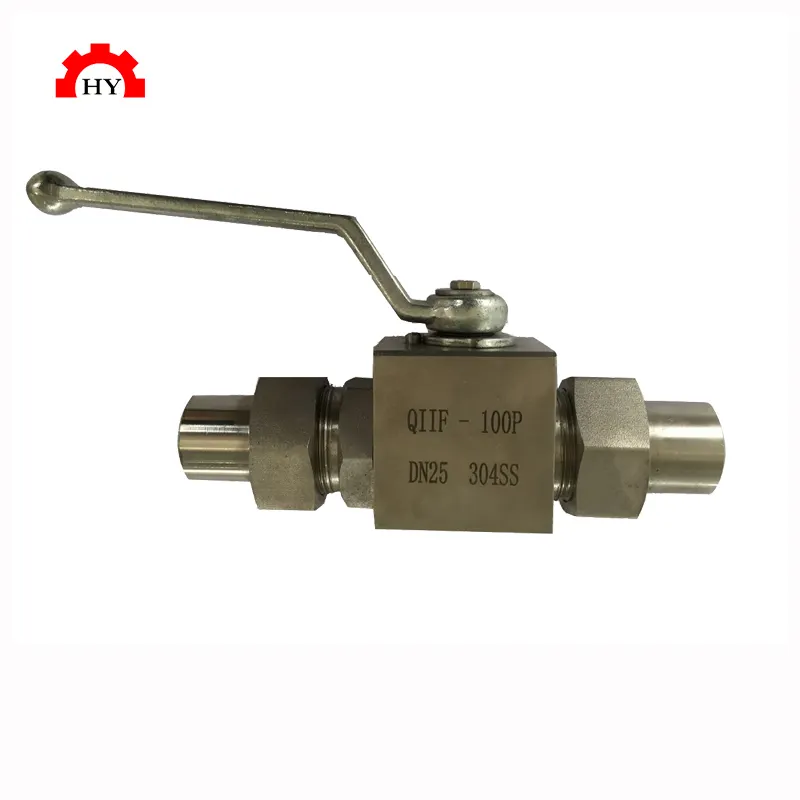

High Pressure Hydraulic Ball Valve Reduce Port - - HuiYi Valve 1

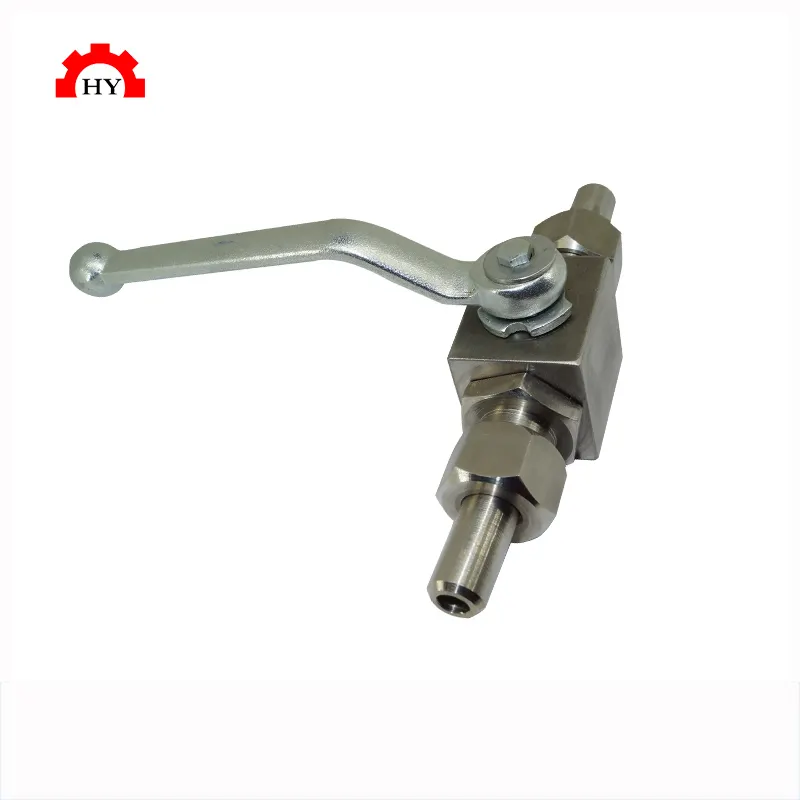

High Pressure Hydraulic Ball Valve Reduce Port - - HuiYi Valve 2

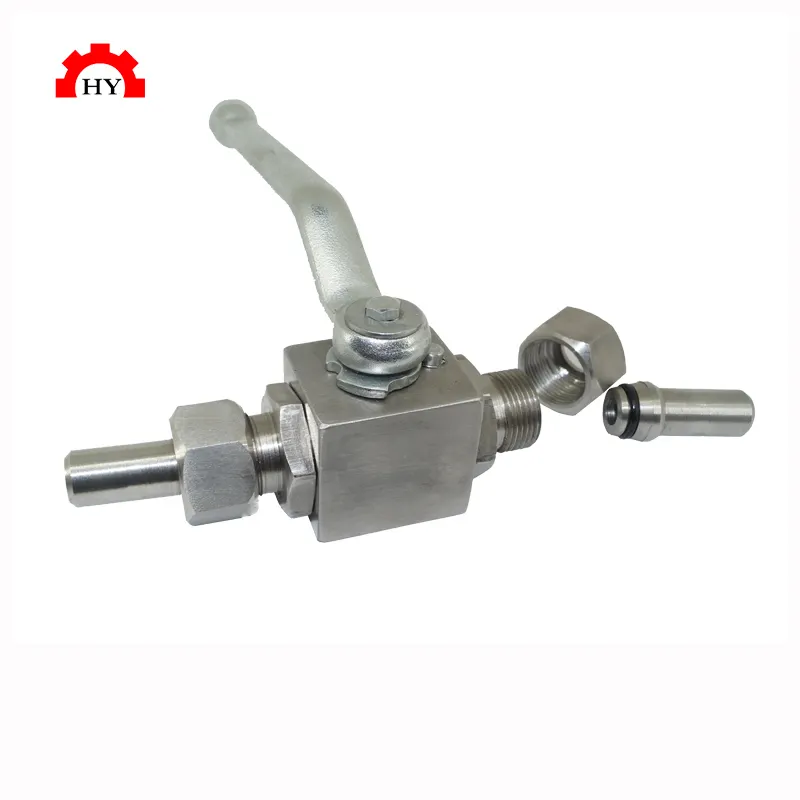

High Pressure Hydraulic Ball Valve Reduce Port - - HuiYi Valve 3

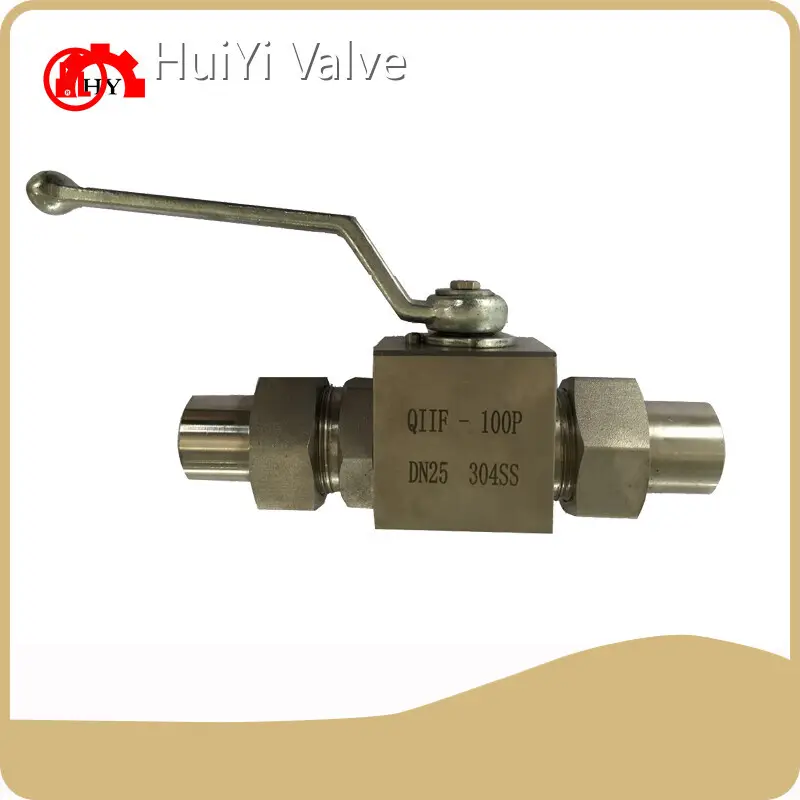

High Pressure Hydraulic Ball Valve Reduce Port - - HuiYi Valve 4

High Pressure Hydraulic Ball Valve Reduce Port - - HuiYi Valve

Working Temperature:

normal temperature

Ball:

F304 F316 F304L F316L

Structure:

Reduce Port

Design:

According to ANSI B16.34

Test Standard:

API 598

Inquiry

Product details of the high pressure hydraulic ball valve

Product Information

Unique creative ideas and perfect design of high pressure hydraulic ball valve often bring joy to our customers. This product brings many economic benefits to customers and is believed to be more widely used in the market. Our dedicated R&D team has made significant improvements to the HuiYi Valve high pressure hydraulic ball valve production technology.

Product details

“High Pressure Butt Weld Ball Valve 304 316”

“Stainless Steel Ball Valve for Oil and Gas 3000 Psi”

Product Overview

● High-quality materials: Made of corrosion-resistant 304 and 316 stainless steel, as well as A105 carbon steel, to ensure long-term durability and reliability.

● High-pressure capability: Withstands pressures up to 3000 to 6000 Psi, suitable for extreme working conditions.

Butt-welded design: Provides a sturdy butt-welded connection to ensure leak-free operation.

● Wide application: Suitable for industries such as oil, gas, and chemicals, and suitable for a variety of fluid media.

● Strict standards: Follow international standards such as API and ASME to ensure product quality and performance.

● High temperature resistance: Adapts to a wide temperature range to meet the needs of different environments.

● Flexible connection: Provides a variety of connection methods, including flanges, threads, etc., to adapt to different piping systems.

Advantages and features

● Corrosion resistance: Stainless steel material effectively resists corrosion and extends service life.

● Easy operation: Simple design, easy installation and maintenance.

● Safe and reliable: Meets industry safety standards to ensure safe operation.

● Customized service: Customized solutions can be provided according to customer needs.

Dimension

Connection		Ordering number	Orifice (mm)	Cv	Size(mm)
Inlet/outlet	Size	Ordering number	Orifice (mm)	Cv	A	B	C	D	E
Metric tube	6mm	HY-HP2BVFT-6M	10	1.2	45.5	90.4	44	130	32
	8mm	HY-HP2BVFT-8M		2.7	46.1	92.2	44	130	32
	10mm	HY-HP2BVFT-10M		4.8	47.1	94.2	44	130	32
	12mm	HY-HP2BVFT-12M		7.5	49.5	99	44	130	32
	14mm	HY-HP2BVFT-14M		7.5	49.5	99	44	130	32
	16mm	HY-HP2BVFT-16M	14	10	54	108	48	145	41
	18mm	HY-HP2BVFT-18M	14	10	54.1	108.2	48	145	41
	20mm	HY-HP2BVFT-20M	19	19	59.5	119	53	160	50
	22mm	HY-HP2BVFT-22M		19	59.5	119	53	160	50
	25mm	HY-HP2BVFT-25M		30	64	128	53	160	50
Inch tube	1/4”	HY-HP2BVFT-1/4	10	1.2	45.3	90.6	44	130	32
	3/8”	HY-HP2BVFT-3/8	10	3.7	46.8	93.6	44	130	32
	1/2”	HY-HP2BVFT-1/2	10	7.5	49.4	98.8	44	130	32
	5/8”	HY-HP2BVFT-5/8	14	10	53.8	107.6	48	145	41
	3/4”	HY-HP2BVFT-3/4	14	10	53.8	107.6	48	145	41
	3/4”	HY-HP2BVFT-3/4	19	19	59.4	118.8	53	160	50
	1”	HY-HP2BVFT-1	19	30	63.9	127.8	53	160	50
Female NPT	1/4”	HY-HP2BV-1/4	10	7.5	36	72	44	130	32
	3/8"	HY-HP2BV-3/8	10	7.5	36.7	73.4	44	130	32
	1/2”	HY-HP2BV-1/2	10	7.5	41.5	83	44	130	32
	1/2”	HY-HP2BV1-1/2	14	10	47.5	95	48	145	41
	3/4"	HY-HP2BV-3/4	14	10	47.5	95	48	145	41
	3/4"	HY-HP2BV1-3/4	19	30	48.1	96.2	53	160	50
	1”	HY-HP2BV-1	19	30	52.9	105.8	53	160	50
Male NPT	1/4"	HY-MHP2BV-1/4	10	3.7	41.7	83.4	44	130	32
	3/8"	HY-MHP2BV-3/8	10	7.2	41.7	83.4	44	130	32
	1/2”	HY-MHP2BV-1/2	10	7.5	46.5	93	44	130	32
	1/2”	HY-MHP2BV1-1/2	14	10	51	102	48	145	41
	3/4"	HY-MHP2BV-3/4	14	10	51	102	48	145	41
	3/4"	HY-MHP2BV1-3/4	19	19	56.5	113	53	160	50
	1”	HY-MHP2BV-1	19	30	61.4	122.8	53	160	50

Main Parts

No.	Part Name	Material
1	Handle	Plastic
2	Stem Nut	316/304
3	Stem	304
4	Body	316/304
5	Ball	316/304
6	Ball Seat	PTFE
7	Stem Packing	PTFE

FAQ

How many is the MOQ ?

10 pcs

How long is the delivery time ?

It depends on the quantity Small quantity order , 7-15 days Mass quantity order , 20-30 days

What is the payment term ?

30% T/T before production, the balance before shipment 50% T/T before production , the balance is paid after customers see the copy of sea B/L 100% L/C at sight For other payment terms , we can discuss

What payment method you have ?

We can accept payment via paypal , western union , T/T , L/C

How long is the guarantee period ?

The guarantee period is 12 months after the goods arrive in customers’ company , or 18 months after the goods are shipped from our company

If there is quality problem , then how can you solve it ?

During the guarantee period , if there are quality problems , please contact us , we will take positive action , the solution is that , if we can repair , then we repair , if we can not repair , then we will send new items to customers to replace unqualified items , customers do not need to send us the unqualified items .

Do you have OEM/ODM service ?

Yes, we have OEM/ODM service , we can put your logo on our products by laser marking .

How can we know your product quality ?

At first , we can send you free samples , you check our quality , then you can place small order to check the quality again , if the quality is ok , then you place bulk order .

For the customized products , how can you make sure the quality ?

We will make samples as per your drawing or sample first , after get your approval , then we start to arrange mass production .

What is the shipping method ?

Small quantity products usually are shipped by international express or air logistic , if large quantity , we will ship them by sea .
