High Pressure Ball Valves Manufacturers PTFE by HuiYi Valve
Company Advantages
· The rigorous design phase of HuiYi Valve high pressure ball valves manufacturers makes it distinctive.
· The product excels in performance, durability and usability.
· Wenzhou Huiyi Valve Technology Co.,Ltd has years of production experience for high pressure ball valves manufacturers.
Product details
Product Overview

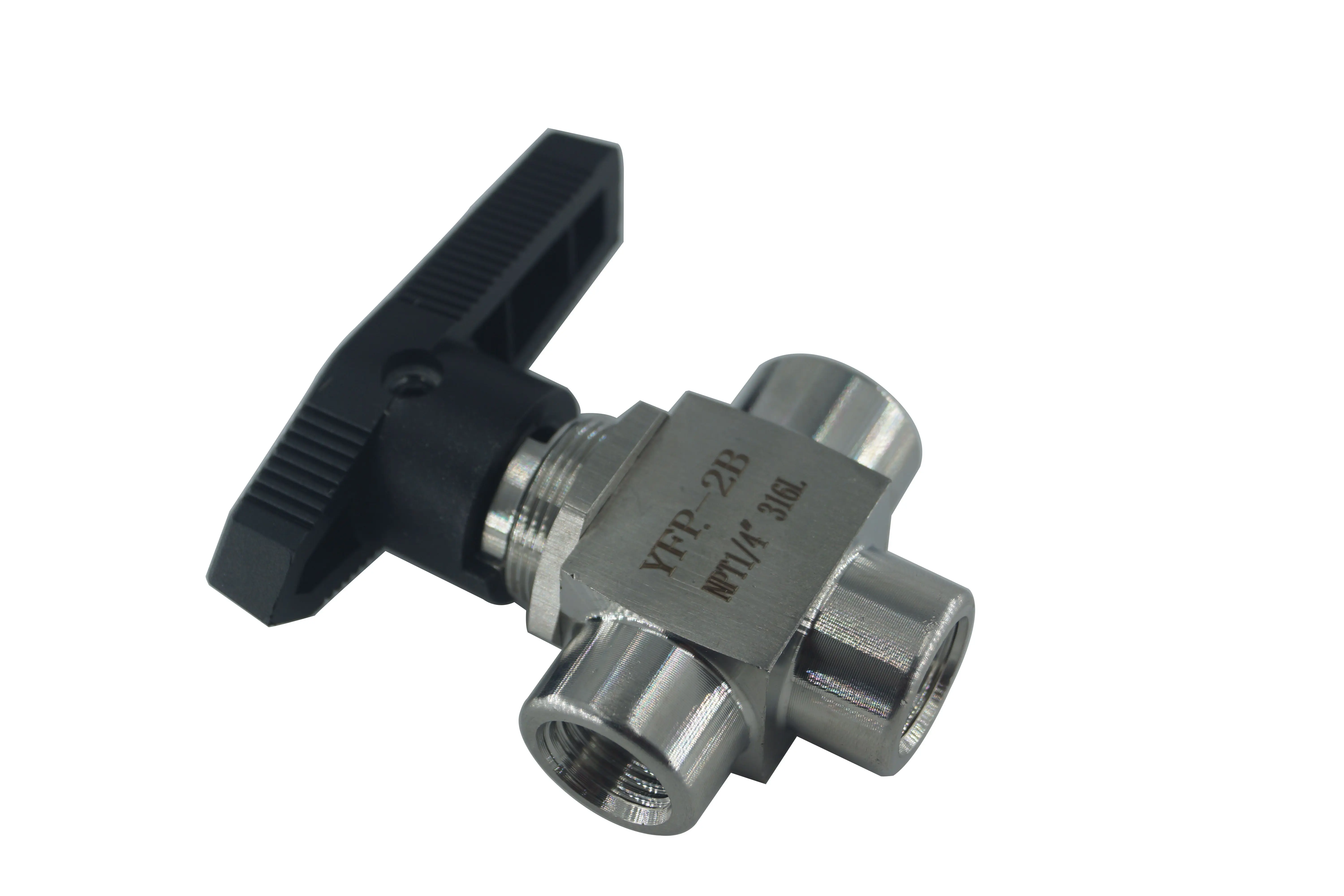

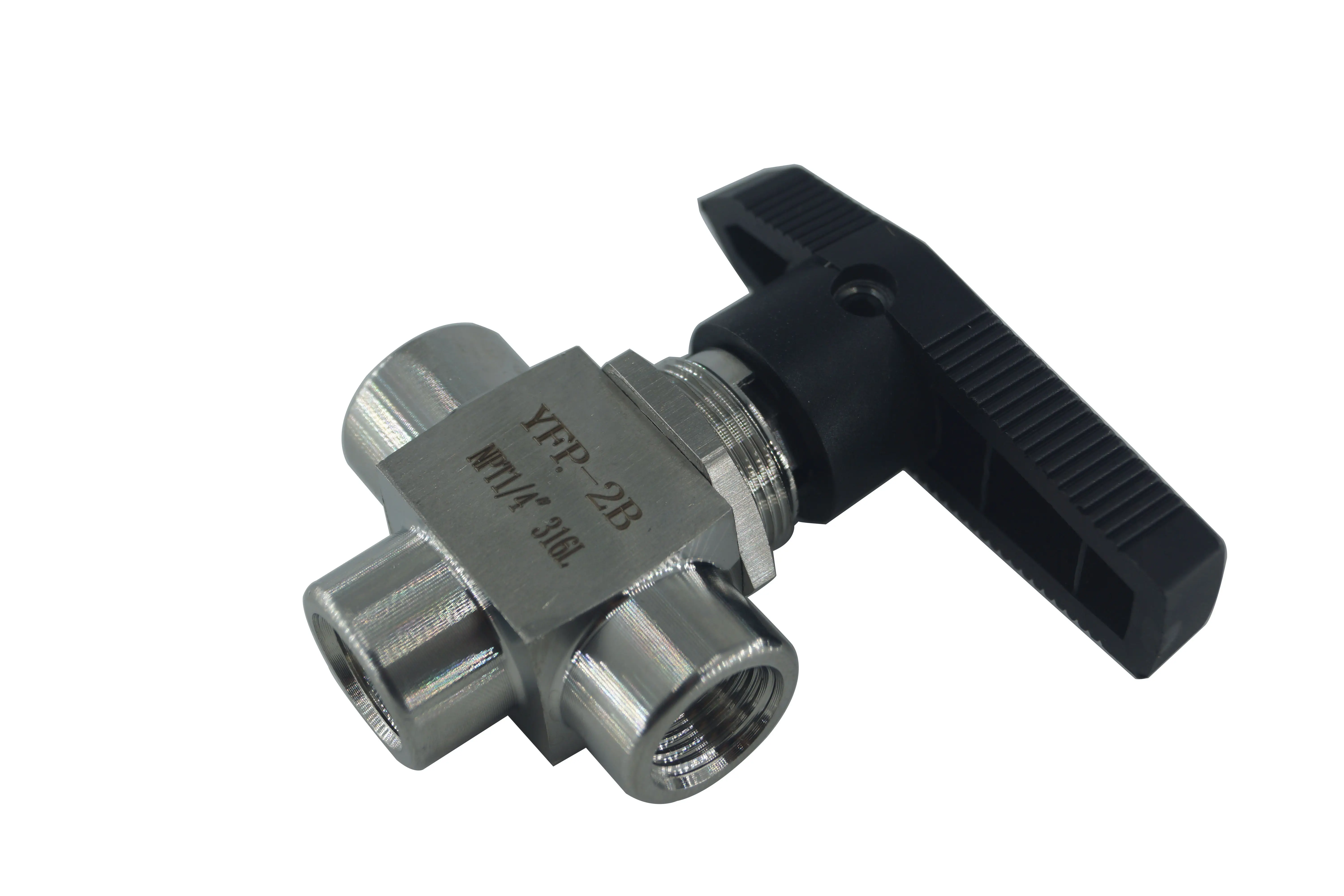

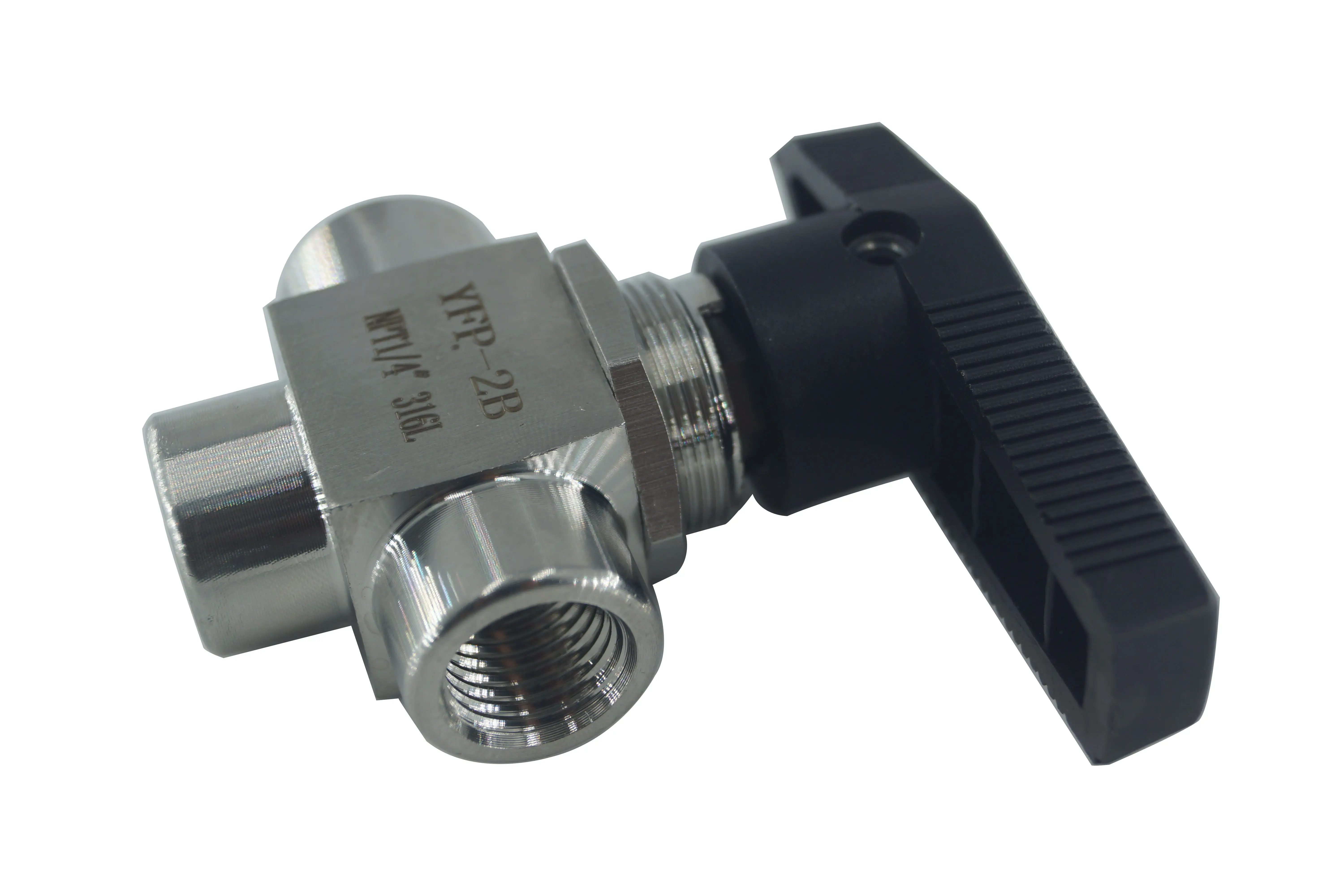

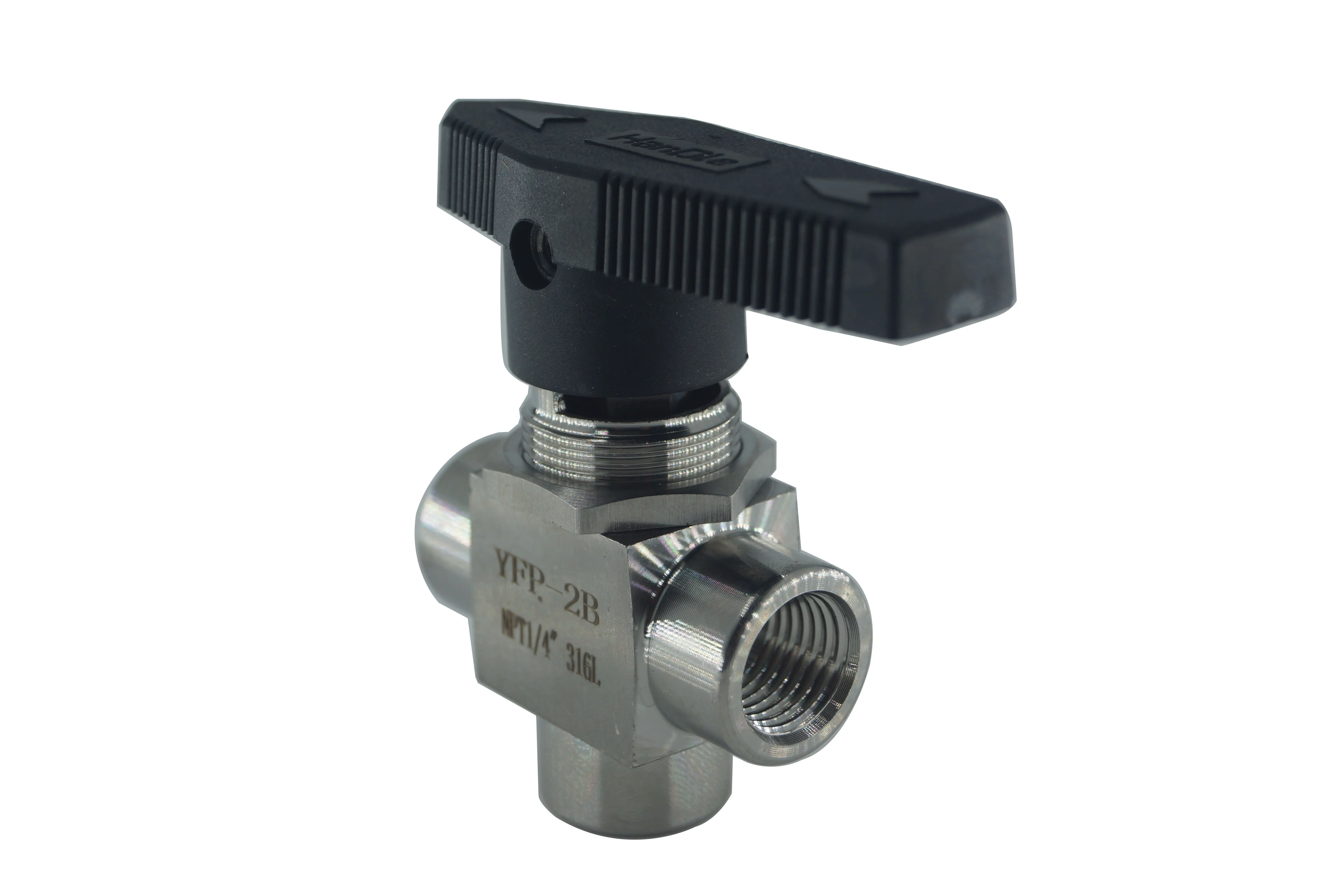

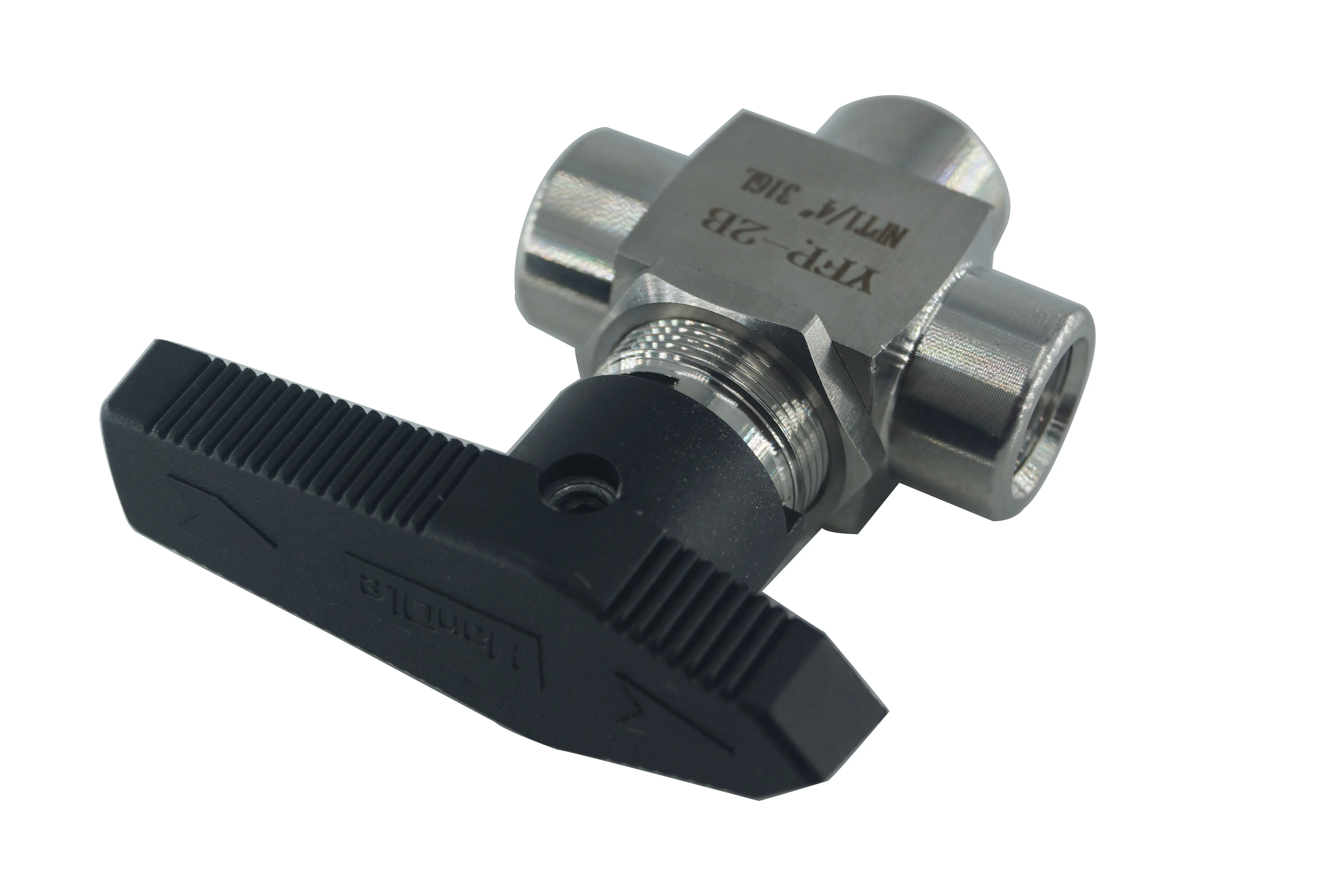

Upgrade your fluid control system and choose HY brand SS316 stainless steel three-way ball valve. This ball valve offers 1/4'', 3/8'', 1/2'' NPT and BSP internal thread options, with a high pressure resistance of 1000PSI, ensuring stable operation even in harsh working environments. Here are the main features of the product:
●Material upgrade: SS316 stainless steel is used, which is more corrosion-resistant and suitable for a variety of media.
●Multiple thread specifications: 1/4'', 3/8'', 1/2'' NPT and BSP thread options are available to meet different pipe connection needs.
●Three-way design: Flexible three-way ball valve to achieve fluid distribution and conversion.
●High pressure resistance: 1000PSI pressure rating, suitable for high-pressure systems.
●Precision manufacturing: Precision machining ensures the sealing performance and long-term stability of the valve.
HY SS316 stainless steel three-way ball valve is suitable for industries such as petroleum, chemical, pharmaceutical, and food processing, and is an ideal choice for fluid control solutions. Invest in HY ball valves to bring reliability and efficiency to your industrial processes.
Dimension
| Connection | Ordering Number | Orifice (mm) | Cv | Size(mm) | ||||||||
| Inlet/outlet | Size | A | B | C | D | F | G | H | I | |||
| Female NPT | 1/8” | Q14SAF-1/8 | 2.6 | 0.15 | 20.6 | 41.2 | 37.3 | 30.0 | 8.6 | 4.4 | 15.1 | 19.9 |
| 1/4” | Q14SAF-1/4 | 4.2 | 0.75 | 24.5 | 49.0 | 41.6 | 40.0 | 11.2 | 4.8 | 19.8 | 22.2 | |
| Q14SAF1-1/4 | 7.0 | 1.7 | 31.8 | 63.6 | 52.6 | 50.8 | 14.2 | 9.7 | 28.6 | 31.8 | ||
| 3/8" | Q14SAF1-3/8 | 7.0 | 1.5 | 31.8 | 63.6 | 52.6 | 50.8 | 14.2 | 9.7 | 28.6 | 31.8 | |
| 1/2” | Q14SAF-1/2 | 10.0 | 3.5 | 39.6 | 79.2 | 61.7 | 76.2 | 17.5 | 9.7 | 38.1 | 39.6 | |
●Working Pressure:1000psi(64 bar)
●Working temperature:-53 degree C to 148 degree C(-65 degree F to 300 degree F)
●Material: stainless steel 316,brass and other specified material by customer
●Valve Seat: PTFE, RPTFE, UHMWPE
●Flow direction: straight type,3 way, 4 way,5 way,6 way and 7 way
●Connection Style: metric ferrules , inch metric , NPT thread, ISO/BSP thread
●Size: 1/8” to 1”
●Thread: NPT,BSPT,BSPP
Main Parts
| No. | Part Name | Material |
| 1 | Handle | Plastic |
| 2 | Stem Nut | 316/304 |
| 3 | Stem | 304 |
| 4 | Body | 316/304 |
| 5 | Ball | 316/304 |
| 6 | Ball Seat | PTFE |
| 7 | Stem Packing | PTFE |
FAQ
Company Features
· Wenzhou Huiyi Valve Technology Co.,Ltd has gained the market recognized high pressure ball valves manufacturers manufacturing strength based on years of experience and expertise.
· Our plant is strategically located in China Mainland. This location is really advantageous to our production because it is near to the raw material center. Our factory is home to state-of-the-art operation facilities. These machines allow us to manufacture products at the fastest speed, thus our quick delivery time can be guaranteed. With a wide range of production facilities in our factory, we are able to conduct effective production. These machines can significantly help us maintain quality, speed and minimize errors.
· Our promise is to get your product to you in a timely manner and with the best service possible. Check it!
Product Comparison
HuiYi Valve's high pressure ball valves manufacturers has better performances in the following aspects.
