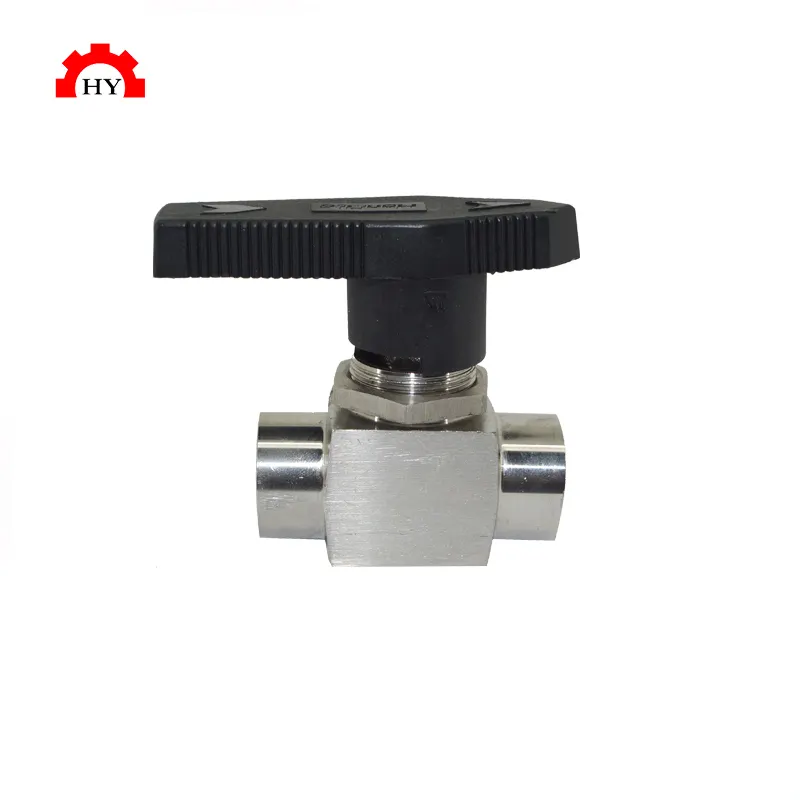

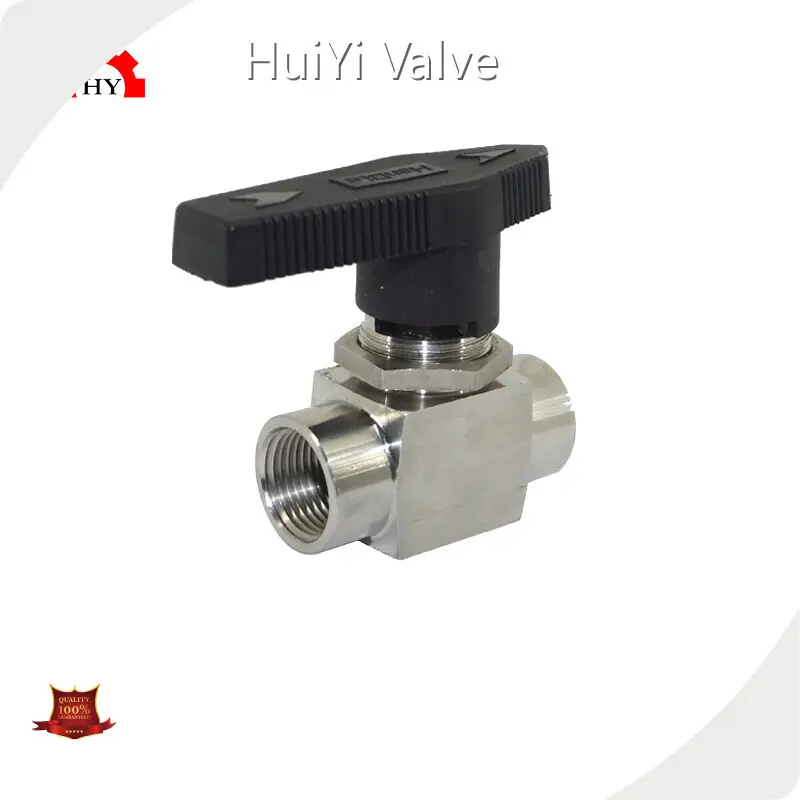

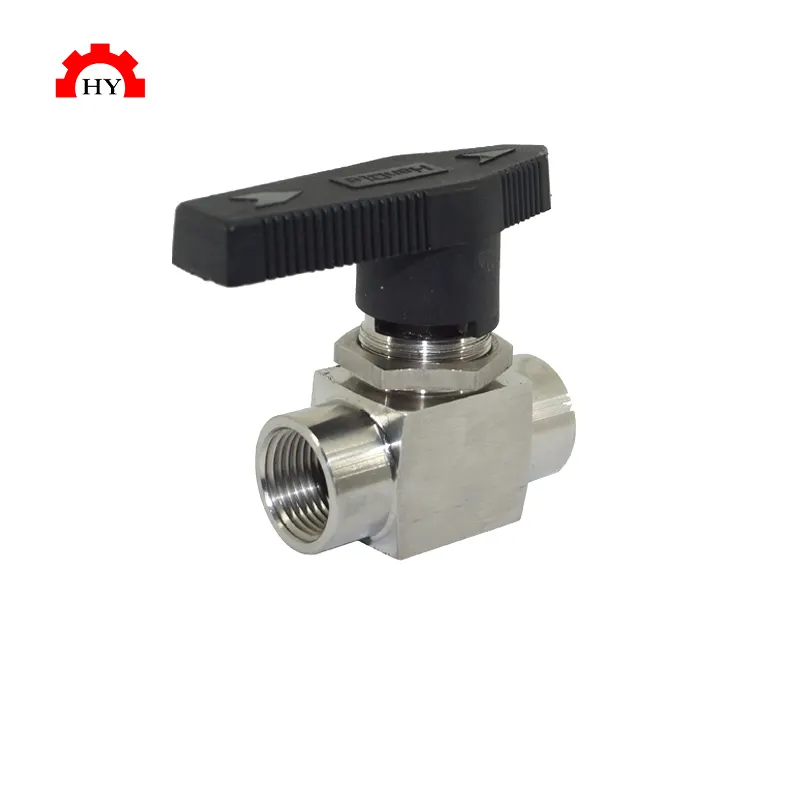

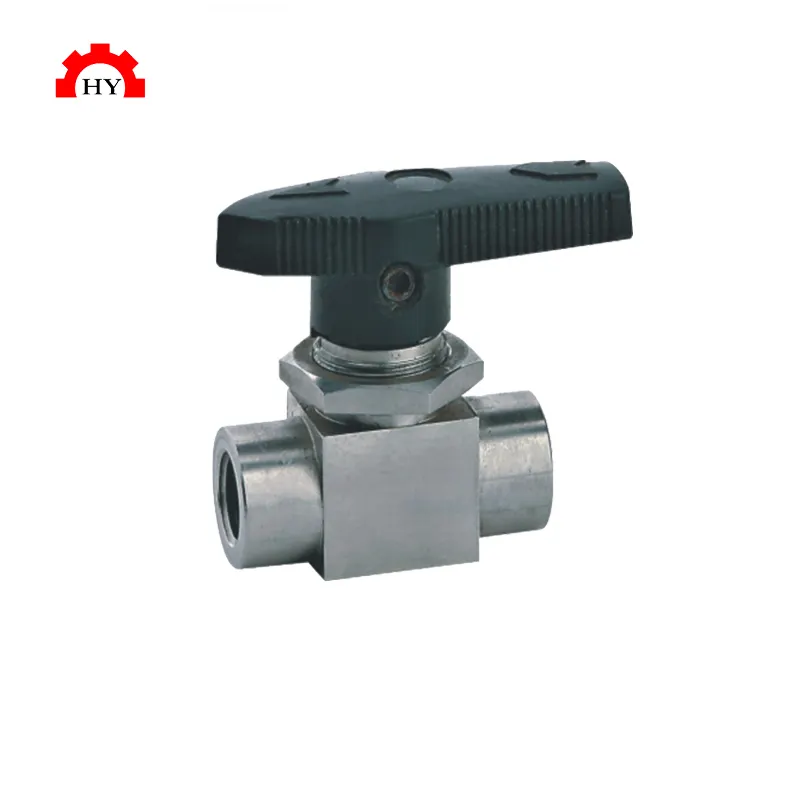

High Pressure Ball Valves Manufacturers 1000 PSI to 6000 PSI by HuiYi Valve
Product details of the high pressure ball valves manufacturers
Quick Detail
Advanced production technology is utilized to manufacture HuiYi Valve high pressure ball valves manufacturers in accordance with international standards. The product is quality assured, meeting with the rigorous international quality standards. The high pressure ball valves manufacturers produced by our company is widely used. It is widely recognized that the product has a promising market potential as it enjoys a good reputation in the market.
Product Description
high pressure ball valves manufacturers produced by HuiYi Valve stands out among many products in the same category. And the specific advantages are as follows.
Dimension
|
Connection |
Ordering Number |
Orifice (mm) |
Cv |
Size (mm) |
||||||||||
|
Inlet/Outlet |
Size |
Straight |
Angle |
A |
B |
C |
D |
E |
F |
G |
H |
I |
||
|
Female NPT |
1/8” |
Q11SAF-1/8 |
2.6 |
0.25 |
0.15 |
20.6 |
41.2 |
37.3 |
30.0 |
7.5 |
8.6 |
4.4 |
15.1 |
19.9 |
|
Q11SAF1-1/8 |
4.2 |
1.2 |
0.7 |
23.1 |
46.2 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
20.2 |
||
|
1/4” |
Q11SAF-1/4 |
4.2 |
0.9 |
0.75 |
24.5 |
49.0 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
22.2 |
|
|
Q11SAF1-1/4 |
7.0 |
3.0 |
1.7 |
31.8 |
63.6 |
52.6 |
50.8 |
14.2 |
14.2 |
9.7 |
28.6 |
31.2 |
||
|
3/8” |
Q11SAF-3/8 |
7.0 |
2.6 |
1.5 |
31.8 |
63.6 |
52.6 |
50.8 |
14.2 |
14.2 |
9.7 |
28.6 |
31.2 |
|
|
1/2” |
Q11SAF1-1/2 |
10.0 |
6.3 |
3.5 |
49.8 |
99.6 |
61.7 |
76.2 |
17.5 |
17.5 |
9.7 |
38.1 |
39.6 |
|
|
Male NPT |
1/4” |
Q11SAF-1/4 |
4.0 |
1.2 |
0.75 |
25.5 |
51.0 |
41.6 |
40.0 |
9.7 |
11.2 |
4.8 |
19.8 |
22.2 |
Product details
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Handle |
Plastic |
|
2 |
Stem Nut |
316/304 |
|
3 |
Stem |
304 |
|
4 |
Body |
316/304 |
|
5 |
Ball |
316/304 |
|
6 |
Ball Seat |
PTFE |
|
7 |
Stem Packing |
PTFE |
