Company Advantages
· HuiYi Valve high pressure ball valves is specifically designed according to demand of our customers.
· The product has the guarantee of our know-how and internationally-certified quality.
· HuiYi Valve strictly checks on each segment and working procedure, even on the freshmen training and the raw material purchasing.
Product details
Product Overview

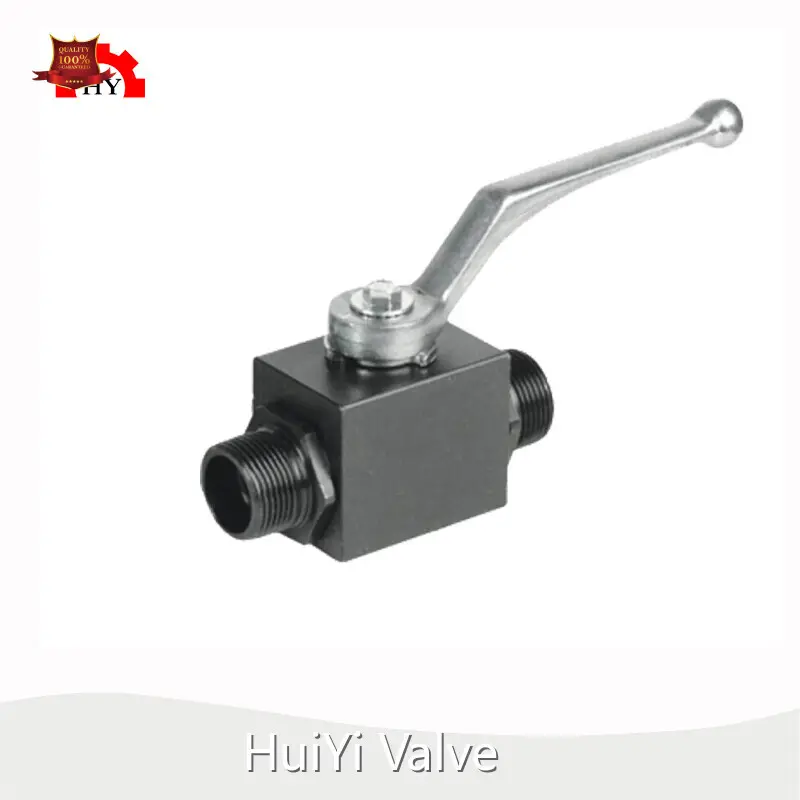

HY brand 2-Way 1/4"-2" 3000 PSI 6000 PSI male thread hydraulic ball valve is a high-performance valve designed for high-pressure fluid pipelines. This ball valve stands out in the field of industrial fluid control with its precise flow control and reliable sealing performance.
Product Features
● Size range: Provide a variety of sizes from 1/4" to 2" to meet different pipeline needs.
● High pressure bearing: Able to withstand working pressures up to 3000 PSI to 6000 PSI, suitable for high-pressure environments.
● Male thread connection: The male thread design is adopted for easy and quick installation and disassembly.
● Two-way control: 2-way valve design to achieve forward and reverse flow control of the medium.
● Material: Selected high-pressure and wear-resistant materials to ensure long-term stable operation.
● Wide application: Suitable for high-pressure fluid pipelines such as petroleum, chemical, and hydraulic systems.
Advantages
● Durability: Sturdy structure, high pressure resistance, suitable for continuous working environment.
● Easy operation: Compact design and clear switch indication make operation more convenient.
● Strong sealing: Precise ball processing and seal design ensure leak-free operation.
● Low maintenance cost: Strong durability, reducing the frequency of repairs and replacements.
Dimension
Connection | Ordering number |
Orifice (mm) |
Cv | Size(mm) | |||||
Inlet/outlet | Size | A | B | C | D | E | |||
Metric tube |
6mm | HY-HP2BVFT-6M | 10 | 1.2 | 45.5 | 90.4 | 44 | 130 | 32 |
8mm | HY-HP2BVFT-8M | 2.7 | 46.1 | 92.2 | 44 | 130 | 32 | ||
10mm | HY-HP2BVFT-10M | 4.8 | 47.1 | 94.2 | 44 | 130 | 32 | ||
12mm | HY-HP2BVFT-12M | 7.5 | 49.5 | 99 | 44 | 130 | 32 | ||
14mm | HY-HP2BVFT-14M | 7.5 | 49.5 | 99 | 44 | 130 | 32 | ||
16mm | HY-HP2BVFT-16M | 14 | 10 | 54 | 108 | 48 | 145 | 41 | |
18mm | HY-HP2BVFT-18M | 10 | 54.1 | 108.2 | 48 | 145 | 41 | ||
20mm | HY-HP2BVFT-20M | 19 | 19 | 59.5 | 119 | 53 | 160 | 50 | |
22mm | HY-HP2BVFT-22M | 19 | 59.5 | 119 | 53 | 160 | 50 | ||
25mm | HY-HP2BVFT-25M | 30 | 64 | 128 | 53 | 160 | 50 | ||
Inch tube | 1/4” | HY-HP2BVFT-1/4 | 10 | 1.2 | 45.3 | 90.6 | 44 | 130 | 32 |
3/8” | HY-HP2BVFT-3/8 | 10 | 3.7 | 46.8 | 93.6 | 44 | 130 | 32 | |
1/2” | HY-HP2BVFT-1/2 | 10 | 7.5 | 49.4 | 98.8 | 44 | 130 | 32 | |
5/8” | HY-HP2BVFT-5/8 | 14 | 10 | 53.8 | 107.6 | 48 | 145 | 41 | |
3/4” | HY-HP2BVFT-3/4 | 14 | 10 | 53.8 | 107.6 | 48 | 145 | 41 | |
3/4” | HY-HP2BVFT-3/4 | 19 | 19 | 59.4 | 118.8 | 53 | 160 | 50 | |
1” | HY-HP2BVFT-1 | 19 | 30 | 63.9 | 127.8 | 53 | 160 | 50 | |
Female NPT |
1/4” | HY-HP2BV-1/4 | 10 | 7.5 | 36 | 72 | 44 | 130 | 32 |
3/8" | HY-HP2BV-3/8 | 10 | 7.5 | 36.7 | 73.4 | 44 | 130 | 32 | |
1/2” | HY-HP2BV-1/2 | 10 | 7.5 | 41.5 | 83 | 44 | 130 | 32 | |
1/2” | HY-HP2BV1-1/2 | 14 | 10 | 47.5 | 95 | 48 | 145 | 41 | |
3/4" | HY-HP2BV-3/4 | 14 | 10 | 47.5 | 95 | 48 | 145 | 41 | |
3/4" | HY-HP2BV1-3/4 | 19 | 30 | 48.1 | 96.2 | 53 | 160 | 50 | |
1” | HY-HP2BV-1 | 19 | 30 | 52.9 | 105.8 | 53 | 160 | 50 | |
Male NPT | 1/4" | HY-MHP2BV-1/4 | 10 | 3.7 | 41.7 | 83.4 | 44 | 130 | 32 |
3/8" | HY-MHP2BV-3/8 | 10 | 7.2 | 41.7 | 83.4 | 44 | 130 | 32 | |
1/2” | HY-MHP2BV-1/2 | 10 | 7.5 | 46.5 | 93 | 44 | 130 | 32 | |
1/2” | HY-MHP2BV1-1/2 | 14 | 10 | 51 | 102 | 48 | 145 | 41 | |
3/4" | HY-MHP2BV-3/4 | 14 | 10 | 51 | 102 | 48 | 145 | 41 | |
3/4" | HY-MHP2BV1-3/4 | 19 | 19 | 56.5 | 113 | 53 | 160 | 50 | |
1” | HY-MHP2BV-1 | 19 | 30 | 61.4 | 122.8 | 53 | 160 | 50 |
Main Parts
No. | Part Name | Material |
1 | Handle | Plastic |
2 | Stem Nut | 316/304 |
3 | Stem | 304 |
4 | Body | 316/304 |
5 | Ball | 316/304 |
6 | Ball Seat | PTFE |
7 | Stem Packing | PTFE |
FAQ
Company Features
· HuiYi Valve has been globally famous in the overseas market.
· Lawfully granted with a production certificate, we are allowed to manufacture and sell products which are safe and harmless to guarantee people's health and environment friendliness. Our plant boasts a series of sophisticated facilities. These facilities are equipped with advanced technologies, which allows us to manufacture products at the highest level. We have got various kinds of awards issued by the government such as the advanced enterprise of the quality management system. This means our quality and business reliability are recognized by the Chinese government.
· As a fast-growing company, we work to develop and maintain sustainable relationships with all stakeholders. We demonstrate this commitment by acting imaginatively and consistently in the communities where our employees, business partners, and customers live and work.
Application of the Product
Our high pressure ball valves is widely used.
We always focus on meeting customers' needs and we are dedicated to providing customers with comprehensive and excellent solutions.
