Product details of the gate valve screw type
Product Description
Using high-quality materials, HuiYi Valve gate valve screw type has been given an attractive appearance. Strict quality control is carried out to ensure product quality and performance in line with industry standards. Apart from our high quality products, Wenzhou Huiyi Valve Technology Co.,Ltd wins the trust of our customers with thoughtful and meticulous service.
Product Description

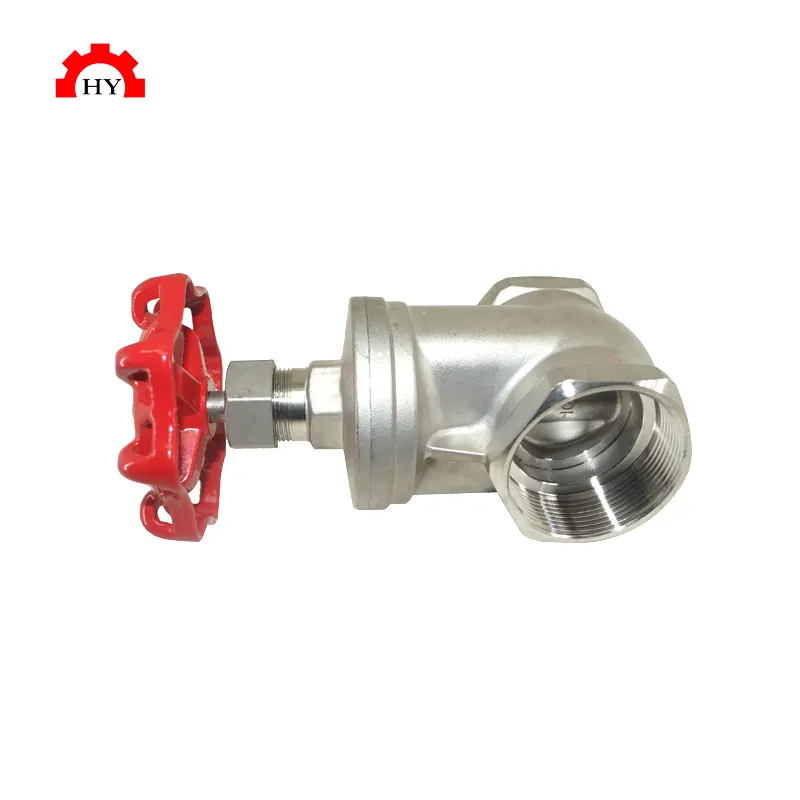

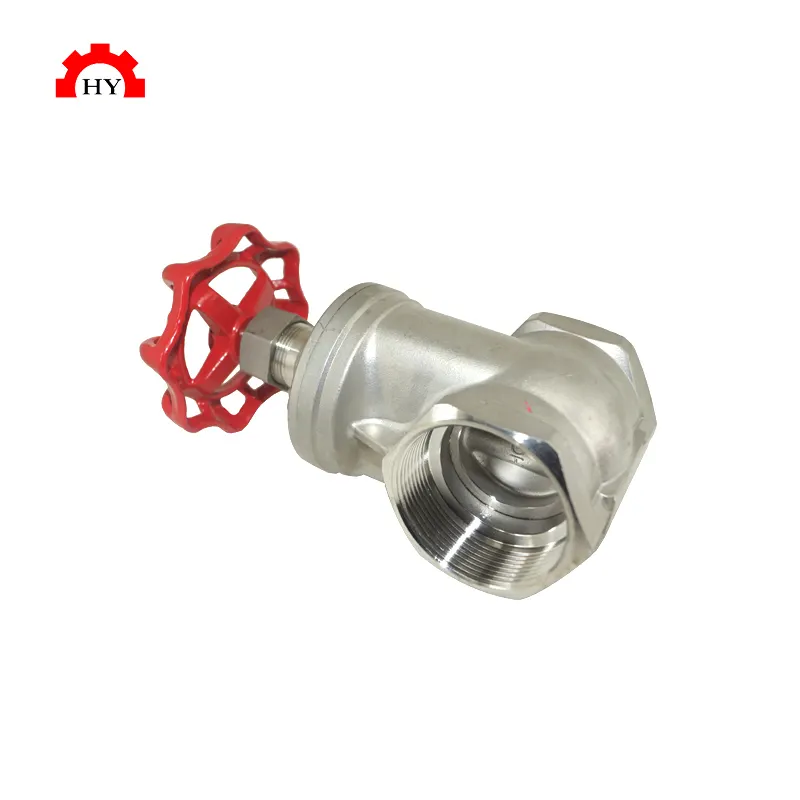

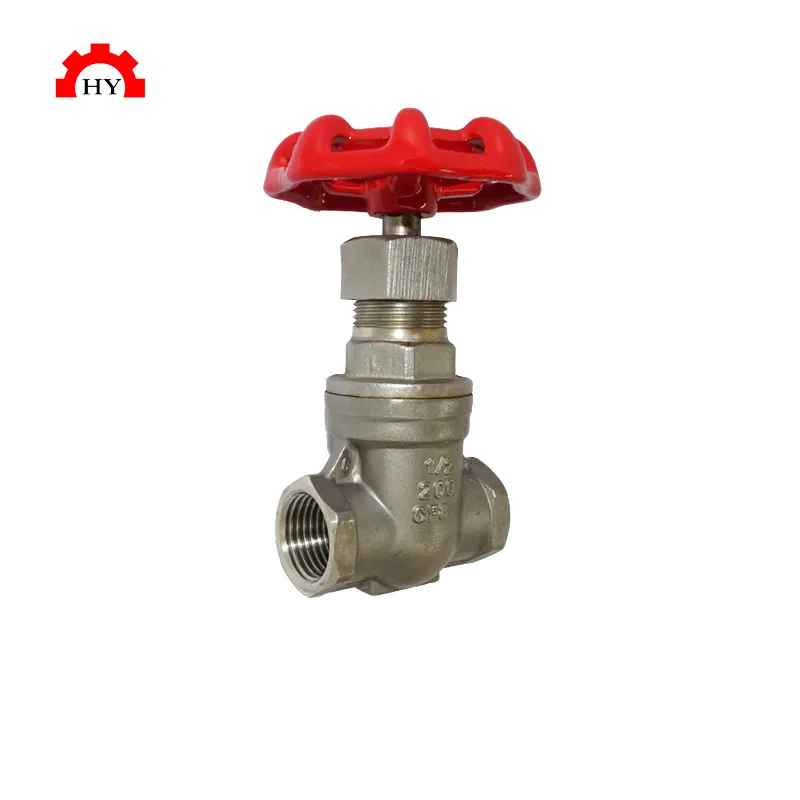

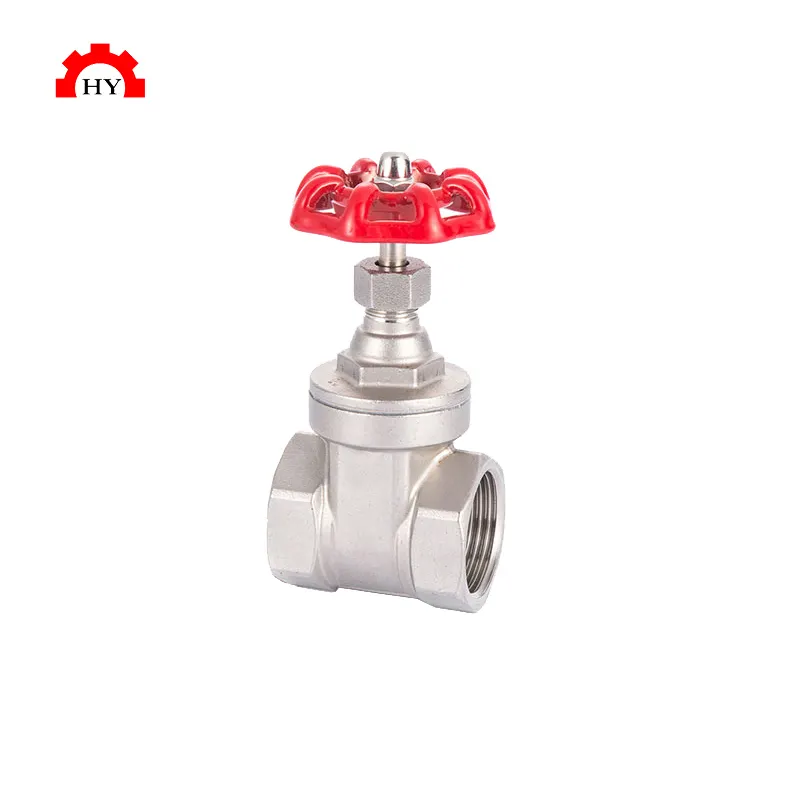

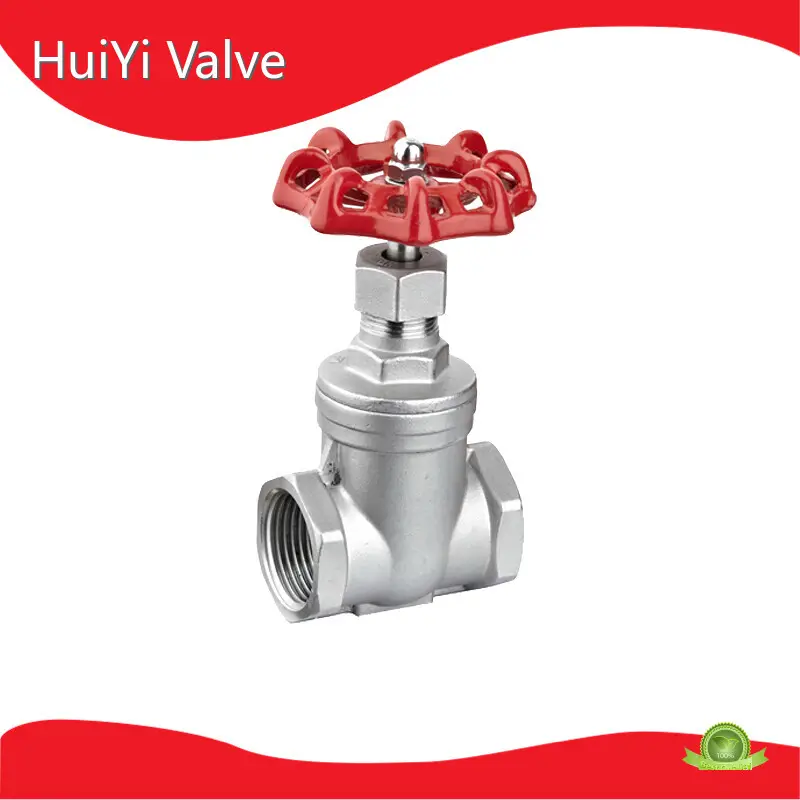

STAINLESS STEEL GATE VALVE: It is a stainless steel internal thread rotary gate valve, NPT BSPP BSPT stainless steel gate valve, which is used to control the water flow and control the pressure of the medium to produce an action that blocks the flow of the medium. When allowing or blocking the flow of media in one direction, it can be opened and closed by simply turning the wheeled handle.
EXPLOSION-PROOF, WEAR-RESISTANT: the full stainless steel valve body has the characteristics of high hardness, pressure-resistant, explosion-proof, high temperature resistance, good sealing, durability and good mechanical properties. Uniform wall thickness, high wear resistance and long service life.
NOT EASY TO SCALE: The inner wall of the 304 stainless steel gate valve is polished, the surface is smooth, no scaling, no blockage, practical and durable.
WIDE RANGE OF APPLICATION: A variety of specifications are available, suitable for most piping systems. It is widely used in chemical, petroleum, fire protection, electric power, light and heavy industry, construction, aerospace, shipbuilding and other industries.
Dimension
Size |
∅ D(mm) |
L(mm) |
H(mm) |
∅ D1(mm) |
1/2” |
15 |
55 |
92 |
70 |
3/4” |
20 |
60 |
99 |
70 |
1” |
25 |
66 |
113 |
80 |
1-1/4” |
32 |
76 |
128 |
80 |
1-1/2” |
40 |
88 |
147 |
90 |
2” |
50 |
96 |
168 |
100 |
Main Parts
No. |
Part Name |
Material |
1 |
Body |
CF8/CF8M |
2 |
Bonnet |
CF8/CF8M |
3 |
Stop Ring |
304 |
4 |
Stem |
316 |
5 |
Packing |
PTFE |
6 |
Hand Wheel Nut |
304 |
7 |
Hand Wheel |
Aluminum |
8 |
Packing Nut |
316 |
9 |
Ring |
304 |
10 |
Lock Nut |
316 |
11 |
Gasket |
PTFE |
12 |
Disc |
CF8/CF8M |
Product details
Company Feature
• HuiYi Valve has established long-term business relationships with many companies at home and abroad.
• HuiYi Valve is devoted to providing the best service for customers at the lowest cost.
• Our company has great traffic conditions, and multi traffic lines pass our company's location. It is beneficial to the outward shipping of products.
If you have the intention to purchase our please contact HuiYi Valve for quotation.
