Copper Compression Fittings HY-UT by HuiYi Valve
Product details of the copper compression fittings
Quick Detail
The production of HuiYi Valve copper compression fittings follows the international standards and green norms. Professional QC team is equipped to ensure the quality of this product. The product has received much attention since its launch and is believed to be more successful in the future market.
Product Description
Supported by advanced technology, HuiYi Valve has a great breakthrough in the comprehensive competitiveness of copper compression fittings, as shown in the following aspects.
Product Description

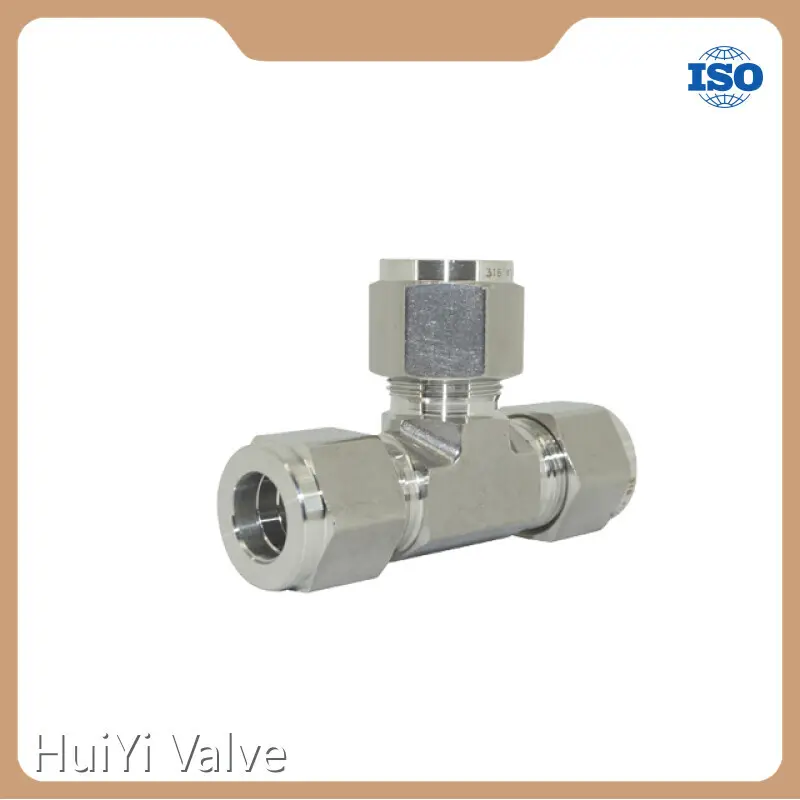

This fitting is made of 304 stainless steel for higher strength and great corrosion resistance. This fitting has hex nut construction for tighter, leak-free connections. It is compatible with stainless steel, copper, rigid and semi-rigid plastic tubing, but is not recommended for soft tubing. It is suitable for use in chemical, petroleum, power generation, laboratory, and medical device plants.
This coupling is for a fixed connection between tubing and pipe made of stainless steel. Twin ferrule compression fitting connects to tubing on end for a leak-resistant seal in high-pressure, high-vacuum, and high-vibration applications When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).
Dimension
|
MODEL NUMBER |
TUBE OD |
DIMENSIONSINCH |
||||
|
T,INCH |
A |
Ax |
D |
E |
F(INCH) |
|
|
HY-UT-1/16 |
1/16 |
1.40 |
0.70 |
0.34 |
0.05 |
3/8 |
|
HY-UT-1/8 |
1/8 |
1.76 |
0.88 |
0.50 |
0.09 |
3/8 |
|
HY-UT-3/16 |
3/16 |
1.92 |
0.96 |
0.54 |
0.12 |
7/16 |
|
HY-UT-1/4 |
1/4 |
2.12 |
1.06 |
0.60 |
0.19 |
1/2 |
|
HY-UT-5/16 |
5/16 |
2.34 |
1.17 |
0.64 |
0.25 |
5/8 |
|
HY-UT-3/8 |
3/8 |
2.40 |
1.20 |
0.66 |
0.28 |
5/8 |
|
HY-UT-1/2 |
1/2 |
2.84 |
1.42 |
0.90 |
0.41 |
13/16 |
|
HY-UT-5/8 |
5/8 |
3.06 |
1.53 |
0.96 |
0.50 |
1 |
|
HY-UT-3/4 |
3/4 |
3.14 |
1.57 |
0.96 |
0.62 |
11/16 |
|
HY-UT-7/8 |
7/8 |
3.52 |
1.76 |
1.02 |
0.72 |
13/8 |
|
HY-UT-1 |
1 |
3.86 |
1.93 |
1.23 |
0.88 |
13/8 |
Product details
Company Advantages
Wenzhou Huiyi Valve Technology Co.,Ltd is a highly popular company which centers on copper compression fittings. We have an experienced manufacturing team. They combine their years of experience in the copper compression fittings industry with various processing technologies to manufacture products at the highest level. The core principle of our company is to respect and treat customers sincerely. Seen from different aspects, such as materials sourcing, designing, and producing, we always seek feedback or advice from clients based on integrity and business ethics.
We hope to cooperate with you for a win-win situation and jointly create a better future.
