Compressor Hose Fittings HY-C by HuiYi Valve
Company Advantages
· The colors of compressor hose fittings is highly pure.
· The product is not only functional but also durable, with a longer service life compared with other competitive products.
· Due to its bright market prospects, this product has won many attentions so far.
Product details

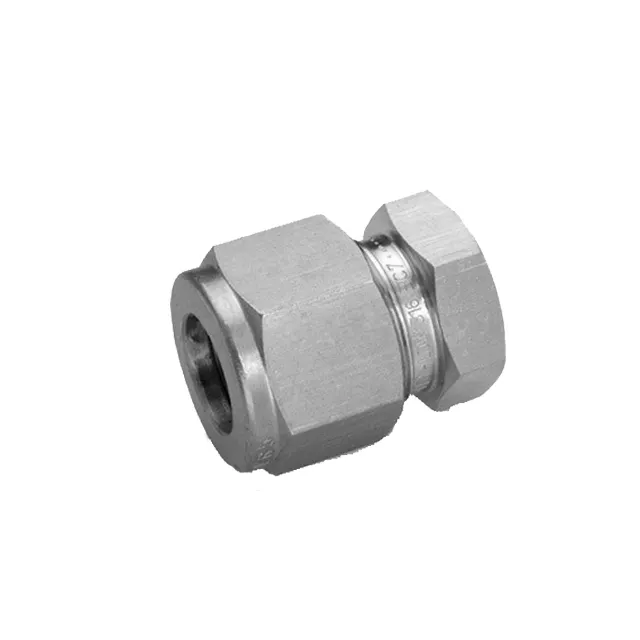

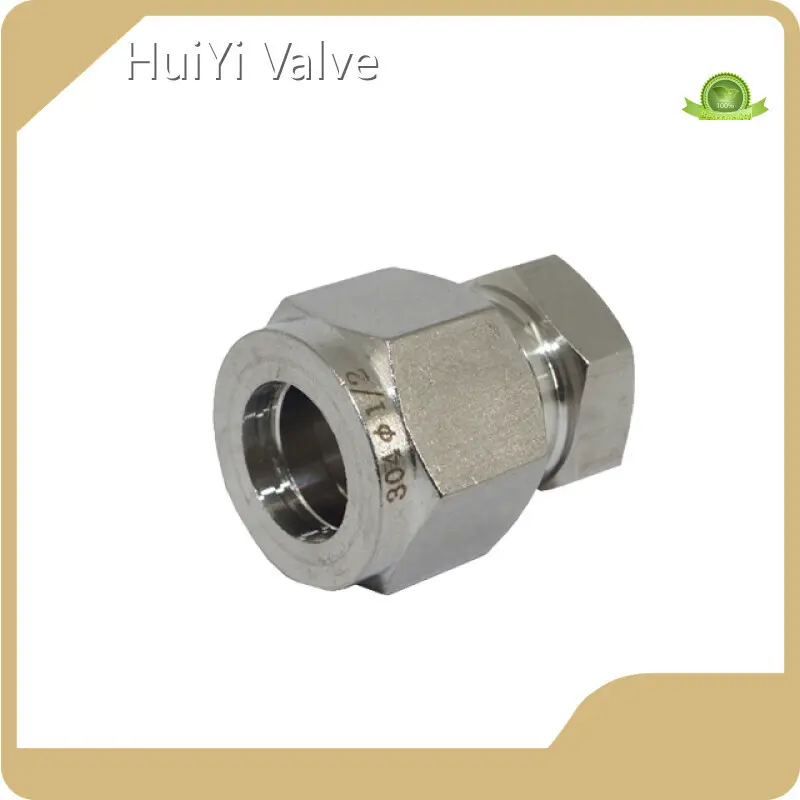

The HY High-Pressure Twin Ferrules Stainless Steel 304/316 Compression Plug is a top-tier fitting designed to provide a reliable and efficient seal in high-pressure fluid lines. Constructed from high-grade stainless steel (304 and 316), this compression plug is engineered to withstand the demands of rugged industrial environments. The innovative twin ferrule design enhances the plug’s sealing capabilities, ensuring a tight and secure fit that prevents leaks. Ideal for applications requiring durability and resistance to corrosion, this compression plug is an essential component for systems in oil and gas, chemical processing, and other high-intensity industries. Trust the HY brand for a solution that combines strength, performance, and longevity.
Dimension
| MODEL NUMBER | TUBE OD | DIMENSIONS(INCH) | |
| T,INCH | A | D | |
| HY-C-1/16 | 1/16 | 0.59 | 0.34 |
| HY-C-1/8 | 1/8 | 0.79 | 0.50 |
| HY-C-3/16 | 3/16 | 0.84 | 0.54 |
| HY-C-1/4 | 1/4 | 0.92 | 0.60 |
| HY-C-5/16 | 5/16 | 0.96 | 0.64 |
| HY-C-3/8 | 3/8 | 1.01 | 0.66 |
| HY-C-1/2 | 1/2 | 1.15 | 0.90 |
| HY-C-5/8 | 5/8 | 1.18 | 0.96 |
| HY-C-3/4 | 3/4 | 1.24 | 0.96 |
| HY-C-7/8 | 7/8 | 1.34 | 1.02 |
| HY-C-1 | 1 | 1.51 | 1.23 |
| MODEL NUMBER | TUBE OD | DIMENSIONS(MM) | |
| T,MM | A | D | |
| HY-C-2M | 2 | 20.10 | 12.90 |
| HY-C-3M | 3 | 20.10 | 12.90 |
| HY-C-4M | 4 | 21.30 | 13.70 |
| HY-C-6M | 6 | 23.10 | 15.30 |
| HY-C-8M | 8 | 24.50 | 16.20 |
| HY-C-10M | 10 | 26.60 | 17.20 |
| HY-C-12M | 12 | 29.10 | 22.80 |
| HY-C-14M | 14 | 29.90 | 24.40 |
| HY-C-15M | 15 | 29.90 | 24.40 |
| HY-C-16M | 16 | 29.90 | 24.40 |
| HY-C-18M | 18 | 31.40 | 24.40 |
| HY-C-20M | 20 | 34.00 | 26.00 |
| HY-C-22M | 22 | 34.00 | 26.00 |
| HY-C-25M | 25 | 38.50 | 31.30 |
fAQ
Company Features
· Wenzhou Huiyi Valve Technology Co.,Ltd is a global leading compressor hose fittings company having its own large-scale manufacture base.
· We make use of advanced technology and latest machines in order to develop products complying with the international quality norms. We have a team of software, electronic and mechanical engineers who play an equal part to produce an advanced and innovative compressor hose fittings.
· We are fully committed to continuously challenging ourselves through improved service methods and strive to achieve our customers' goals. Check now!
Product Details
With a focus on product's quality, our company pursues perfection in every detail.
Product Comparison
The compressor hose fittings produced by HuiYi Valve has better quality, as shown below.
