Product details of the compression fitting for water line
Product Introduction
During the process of production, every detail of HuiYi Valve compression fitting for water line is highly valued. Many customers are greatly impressed by its optimal performance and superior quality. Through the strict test upon compression fitting for water line, the quality of it can be guaranteed.
Product details

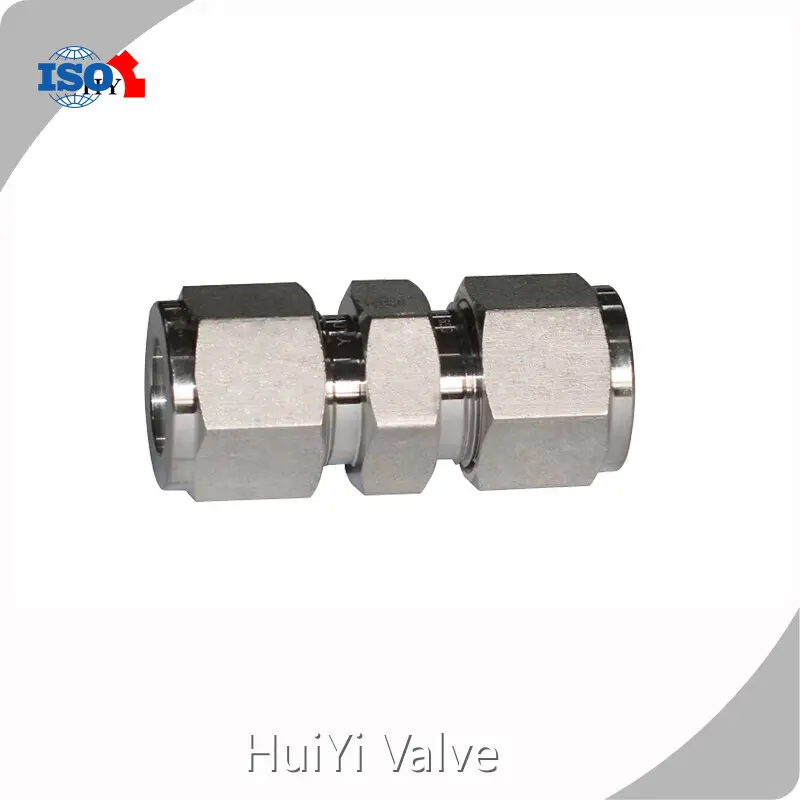

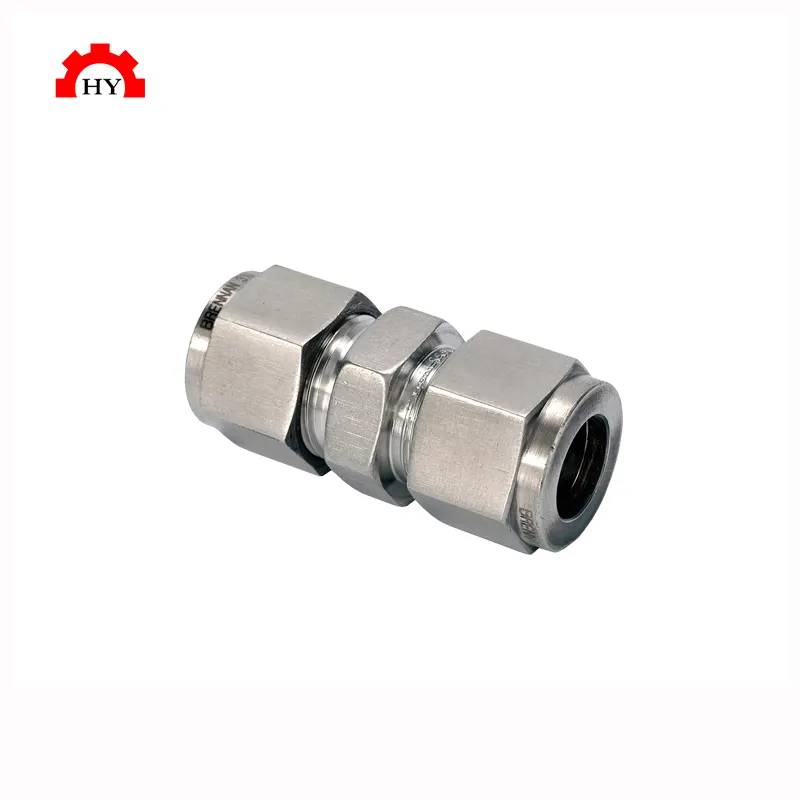

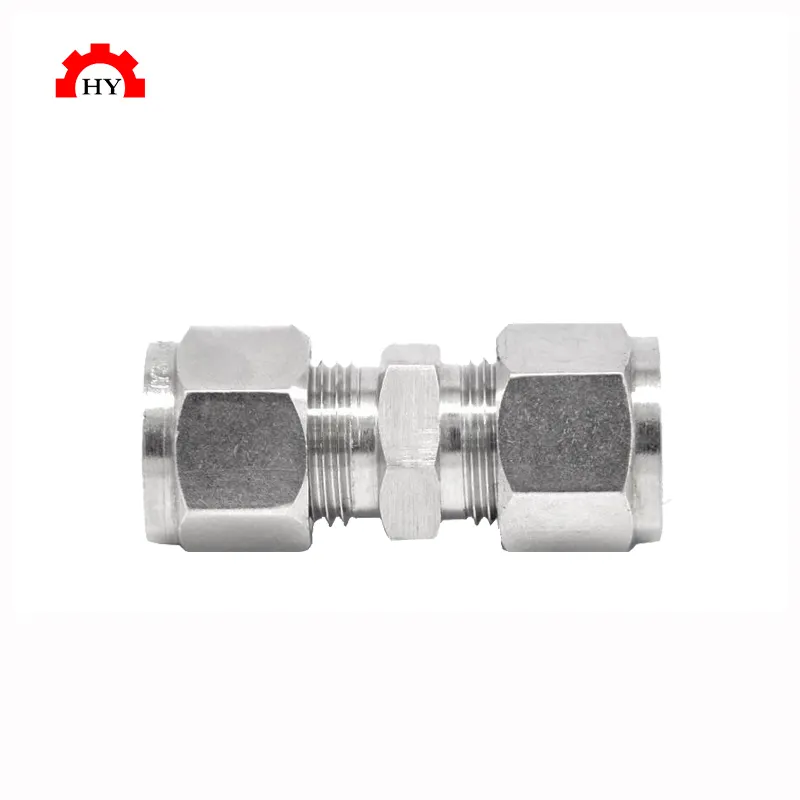

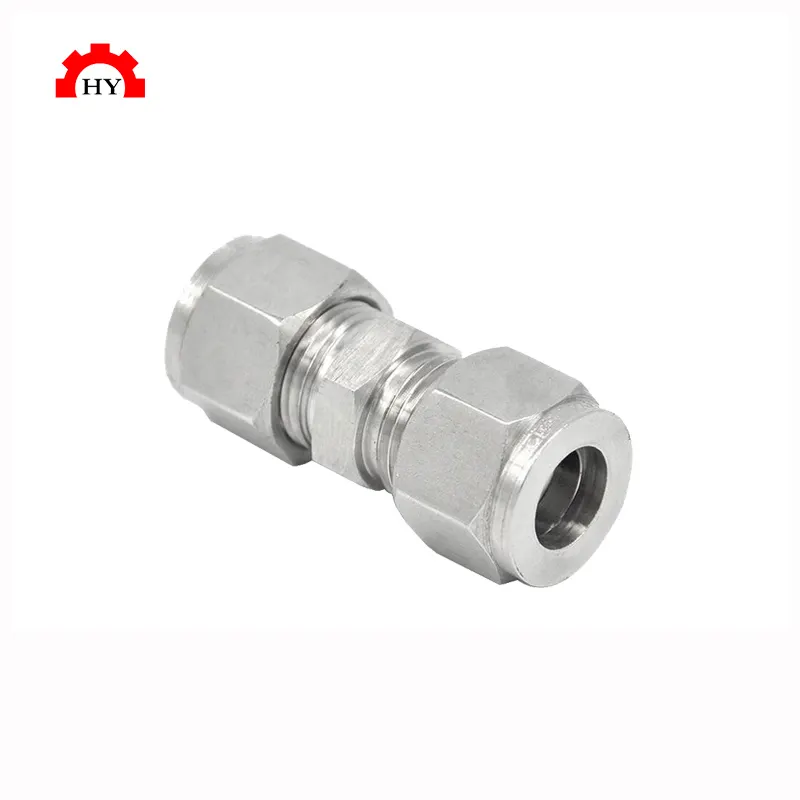

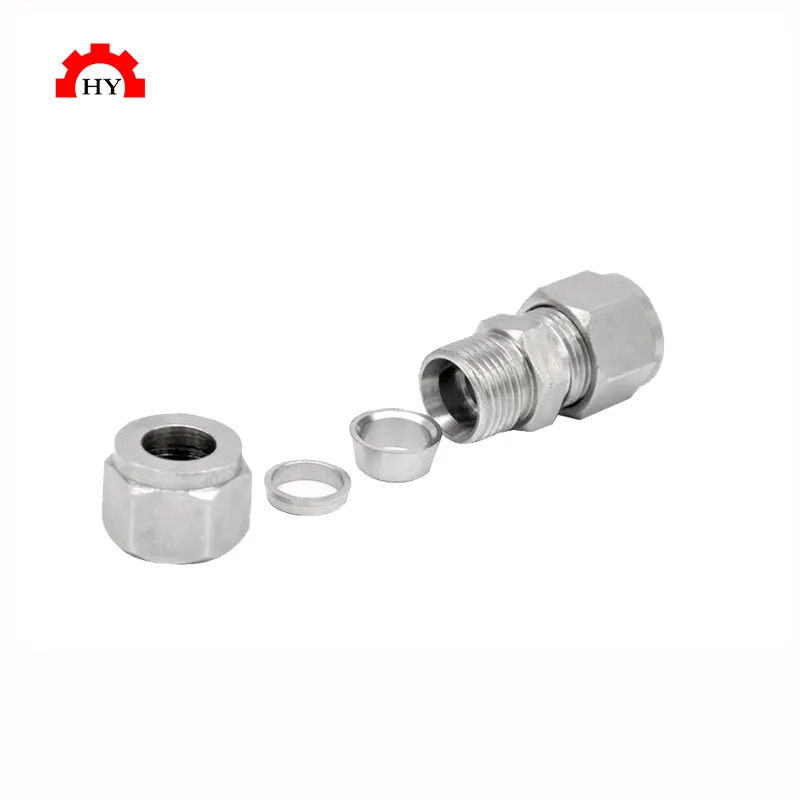

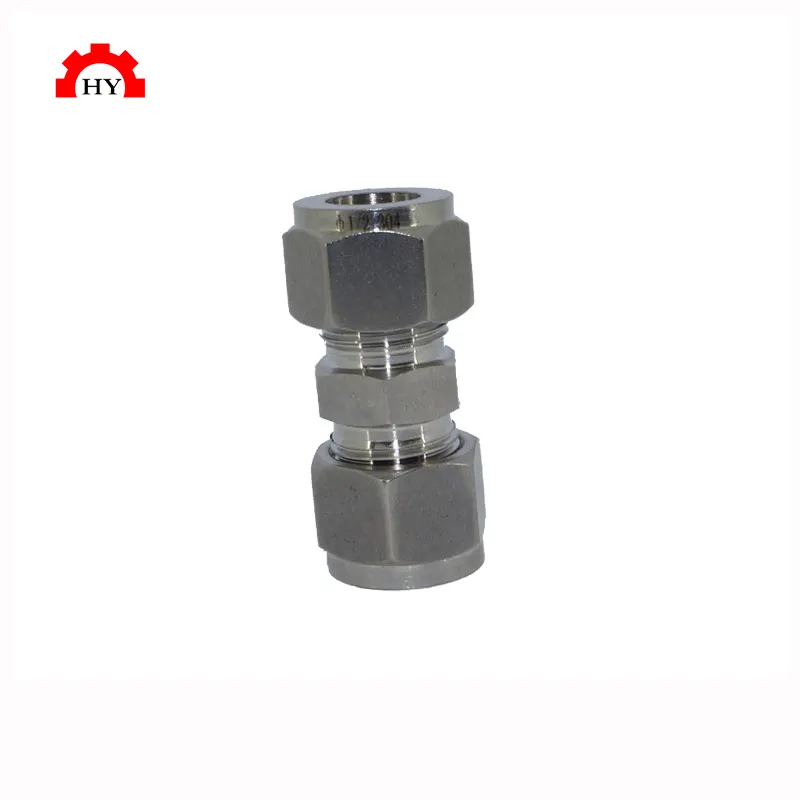

HY brand stainless steel 304/316 high-pressure straight-through pipe fittings are suitable for hydraulic systems, with a pressure resistance of 3000 PSI to 6000 PSI, and provide 4MM, 6MM, 8MM, 12MM specifications. These precision-made stainless steel straight-through pipe fittings are made of high-quality materials to ensure the stability and corrosion resistance of the system and are suitable for various harsh industrial environments. Whether it is high-intensity operation or continuous operation requirements, HY stainless steel high-pressure straight-through pipe fittings can provide reliable connection solutions to ensure the smooth operation and long-term durability of the hydraulic system.
Dimension
MODEL NUMBER |
TUBE OD (INCH) |
DIMENSIONS(INCH) | ||
A | D | E | ||
HY-U-1/16 | 1/16 | 0.99 | 0.34 | 0.05 |
HY-U-1/8 | 1/8 | 1.40 | 0.50 | 0.09 |
HY-U-3/16 | 3/16 | 1.47 | 0.54 | 0.12 |
HY-U-1/4 | 1/4 | 1.61 | 0.60 | 0.19 |
HY-U-5/16 | 5/16 | 1.69 | 0.64 | 0.25 |
HY-U-3/8 | 3/8 | 1.77 | 0.66 | 0.28 |
HY-U-1/2 | 1/2 | 2.02 | 0.90 | 0.41 |
HY-U-5/8 | 5/8 | 2.05 | 0.96 | 0.50 |
HY-U-3/4 | 3/4 | 2.11 | 0.96 | 0.62 |
HY-U-7/8 | 7/8 | 2.17 | 1.02 | 0.72 |
HY-U-1 | 1 | 2.55 | 1.23 | 0.88 |
MODEL NUMBER | TUBE OD(MM) | DIMENSIONS(INCH) | ||
A | D | E | ||
HY-U-2M | 2 | 35.60 | 12.90 | 1.70 |
HY-U-3M | 3 | 35.30 | 12.90 | 2.40 |
HY-U-4M | 4 | 37.30 | 13.70 | 2.40 |
HY-U-6M | 6 | 41.00 | 15.30 | 4.80 |
HY-U-8M | 8 | 43.20 | 16.20 | 6.40 |
HY-U-10M | 10 | 46.20 | 17.20 | 7.90 |
HY-U-12M | 12 | 51.20 | 22.80 | 9.50 |
HY-U-14M | 14 | 52.00 | 24.40 | 11.10 |
HY-U-15M | 15 | 52.00 | 24.40 | 11.90 |
HY-U-16M | 16 | 52.00 | 24.40 | 12.70 |
HY-U-18M | 18 | 53.50 | 24.40 | 15.10 |
HY-U-20M | 20 | 55.00 | 26.00 | 15.90 |
HY-U-22M | 22 | 55.00 | 26.00 | 18.30 |
HY-U-25M | 25 | 65.00 | 31.30 | 21.80 |
