Product details of the compression fitting for water line
Quick Overview
The production of HuiYi Valve compression fitting for water line abides by the international quality standards. The product undergoes in-house quality assurance procedures. The strong support of our own scientific research strength makes our compression fitting for water line more competitive in quality.
Product Information
The compression fitting for water line produced by HuiYi Valve stands out in many similar products. And the specific advantages are as follows.

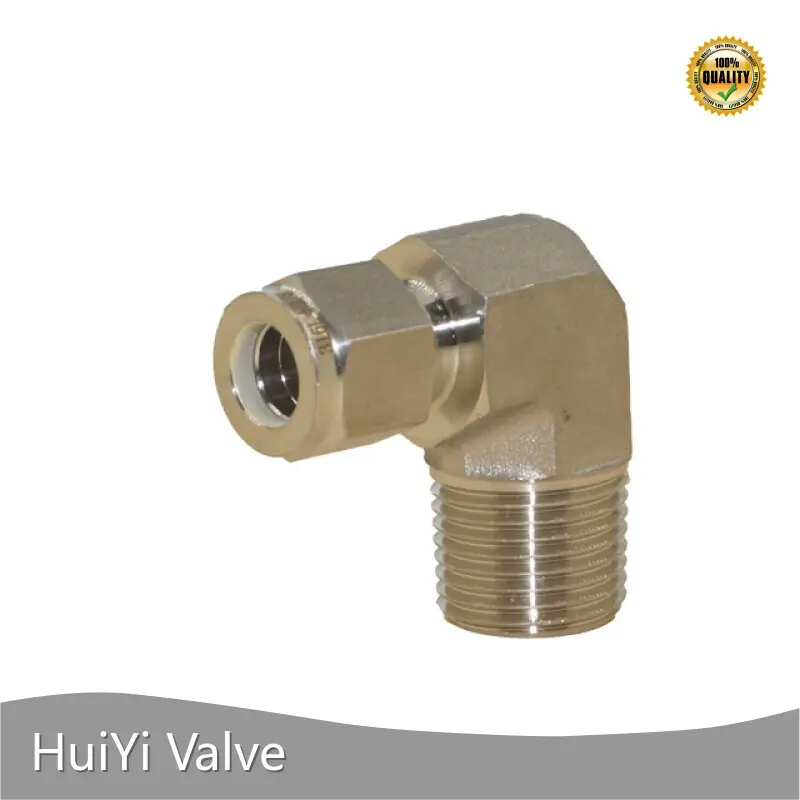

90-degree elbow for connecting tubing to threaded pipe at an angle
Fitting connects to tubing on one end and has an NPT male connector on the other
Chemically hardened type 316 304 stainless steel for higher strength and greater corrosion resistance than untreated stainless steel
Twin ferrule compression fitting for a leak-resistant seal in high-pressure applications
For use with stainless steel pipe and tubing
Dimension
MODEL NUMBER |
TUBE OD |
|
DIMENSIONS(INCH) |
|||
T,INCH |
NPT SIZE |
A |
D |
E |
F |
|
HY-ME-1/16-1/16 |
1/16 |
1/16 |
0.75 |
0.34 |
0.05 |
7/16 |
HY-ME-1/16-1/8 |
1/8 |
|||||
HY-ME-1/8-1/16 |
1/8 |
1/16 |
0.93 |
0.50 |
0.09 |
7/16 |
HY-ME-1/8-1/8 |
1/8 |
0.93 |
7/16 |
|||
HY-ME-1/8-1/4 |
1/4 |
0.97 |
1/2 |
|||
HY-ME-3/16-1/8 |
3/16 |
1/8 |
1.00 |
0.54 |
0.12 |
1/2 |
HY-ME-3/16-1/4 |
1/4 |
|||||
HY-ME-1/4-1/16 |
1/4 |
1/16 |
1.06 |
0.60 |
0.12 |
1/2 |
HY-ME-1/4-1/8 |
1/8 |
1.06 |
0.19 |
1/2 |
||
HY-ME-1/4-1/4 |
1/4 |
1.06 |
0.19 |
1/2 |
||
HY-ME-1/4-3/8 |
3/8 |
117 |
0.19 |
11/16 |
||
HY-ME-1/4-1/2 |
1/2 |
1.25 |
0.19 |
13/16 |
||
HY-ME-5/16-1/8 |
5/16 |
1/8 |
1.13 |
0.64 |
0.19 |
9/16 |
HY-ME-5/16-1/4 |
1/4 |
1.13 |
0.25 |
9/16 |
||
HY-ME-5/16-3/8 |
3/8 |
1.2 |
0.25 |
11/16 |
||
HY-ME-3/8-1/8 |
3/8 |
1/8 |
1.2 |
0.66 |
0.19 |
5/8 |
HY-MME-3/8-1/4 |
1/4 |
1.2 |
0.28 |
5/8 |
||
HY-ME-3/8-3/8 |
3/8 |
1.23 |
0.28 |
11/16 |
||
HY-ME-3/8-1/2 |
1/2 |
1.31 |
0.28 |
13/16 |
||
HY-ME-3/8-3/4 |
3/4 |
1.46 |
0.28 |
1-1/16 |
||
HY-ME-1/2-1/4 |
1/2 |
1/4 |
1.42 |
0.9 |
0.28 |
13/16 |
HY-ME-1/2-3/8 |
3/8 |
1.42 |
0.38 |
13/16 |
||
HY-MME-1/2-1/2 |
1/2 |
1.42 |
0.41 |
13/16 |
||
HY-ME-1/2-3/4 |
3/4 |
1.57 |
0.41 |
1-1/16 |
||
HY-ME-5/8-3/8 |
5/8 |
3/8 |
1.5 |
0.96 |
0.38 |
15/16 |
HY-ME-5/8-1/2 |
1/2 |
1.5 |
0.47 |
15/16 |
||
HY-ME-5/8-3/4 |
3/4 |
1.57 |
0.5 |
1-1/16 |
||
HY-ME-3/4-1/2 |
3/4 |
1/2 |
1.57 |
0.96 |
0.47 |
1-1/16 |
HY-ME-3/4-3/4 |
3/4 |
0.62 |
||||
HY-ME-7/8-3/4 |
7/8 |
3/4 |
1.76 |
1.02 |
0.62 |
1-3/8 |
HY-ME-1-3/4 |
1 |
3/4 |
1.93 |
1.23 |
0.62 |
1-3/8 |
HY-ME-1-1 |
1 |
0.88 |
