Product details of the check valve cf8m
Product Overview
In order to capture the market opportunities,Wenzhou Huiyi Valve Technology Co.,Ltd adopt the most cutting edge technique in China. The product has properties of long service, excellent and stable performance. Our service for check valve cf8m include product development, design, production and sales.
Product Description
Compared with general products, the check valve cf8m we produce have the following advantages.
Product Description

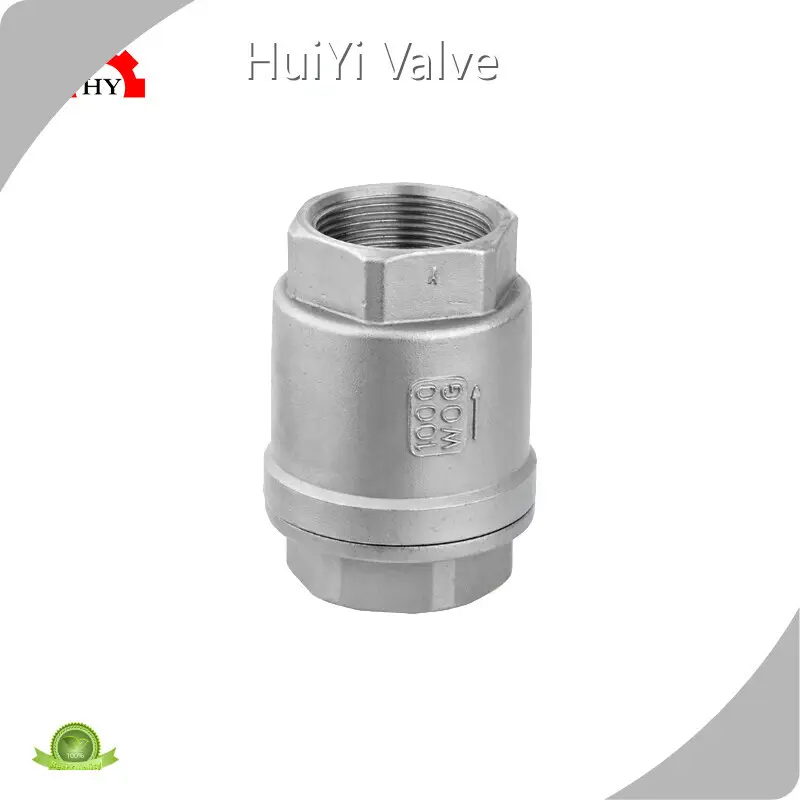

The check valve is made of high-quality stainless steel, sturdy and durable, rust-resistant, and has excellent corrosion resistance and oxidation resistance.
The check valve is designed to allow fluid to flow in one direction while preventing fluid from flowing back in the opposite direction. It is equipped with a stainless steel spring, allowing for vertical and horizontal installations.
The check valve has NPT threads, which are tapered threads that provide a good seal. It has a maximum pressure of 14 bar (200 psi) and an operating temperature ranging from -10 degree C to +120 degree C (14 degree H to 248 degree H).
Suitable for water, oil, air, etc. The check valve can be applied to various media such as water, steam, oil, nitric acid, acetic acid, oxidizing media, and urea.
The valve flap of the check valve opens under fluid pressure, and the fluid flows from the inlet side to the outlet side. When the inlet side pressure is lower than the outlet side, the valve flap automatically closes.
Dimension
Size |
∅ B(mm) |
A(mm) |
1/2” |
34 |
60 |
3/4” |
48 |
70 |
1” |
56 |
80 |
1-1/4” |
72 |
90 |
1-1/2” |
86 |
100 |
2” |
102 |
110 |
Main Parts
No. |
Part Name |
Material |
1 |
Body |
CF8/CF8M/SS201 |
2 |
Bonnet |
CF8/CF8M/SS201 |
3 |
Disc |
CF8/CF8M/SS201 |
4 |
Sealing |
PTFE |
Product details
Company Advantages
Wenzhou Huiyi Valve Technology Co.,Ltd engages in check valve cf8m for many years. Fully promoting the quality management of HuiYi Valve guarantees the great quality of check valve cf8m. We are committed to run business in a healthy and safe way. We conduct the corporation's activities centering on the clients, employees, and communities so as to ensure our sustainable development.
We hope to cooperate with you for a win-win situation and jointly create a better future.
