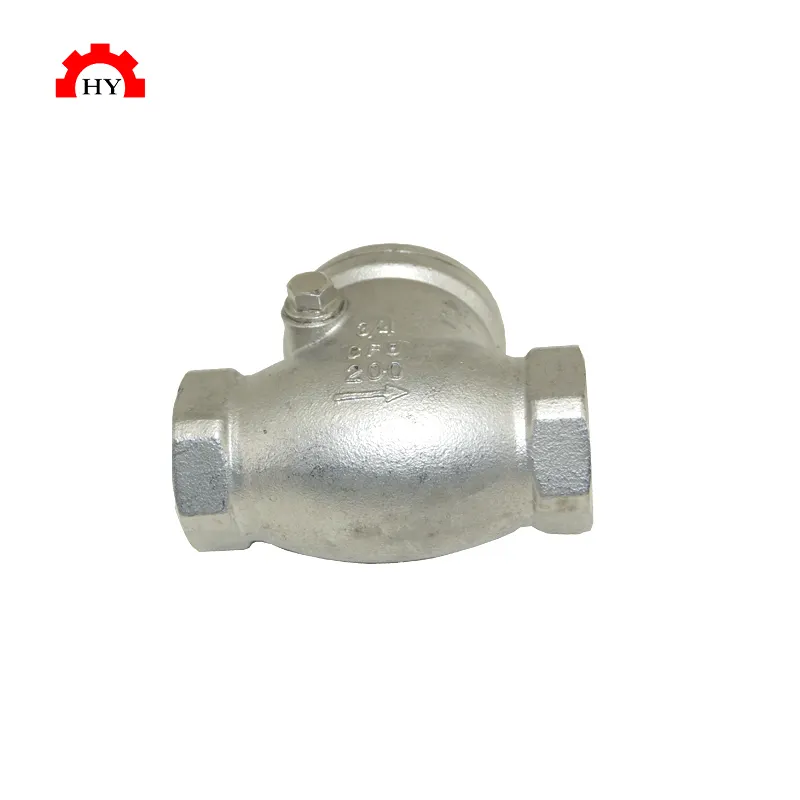

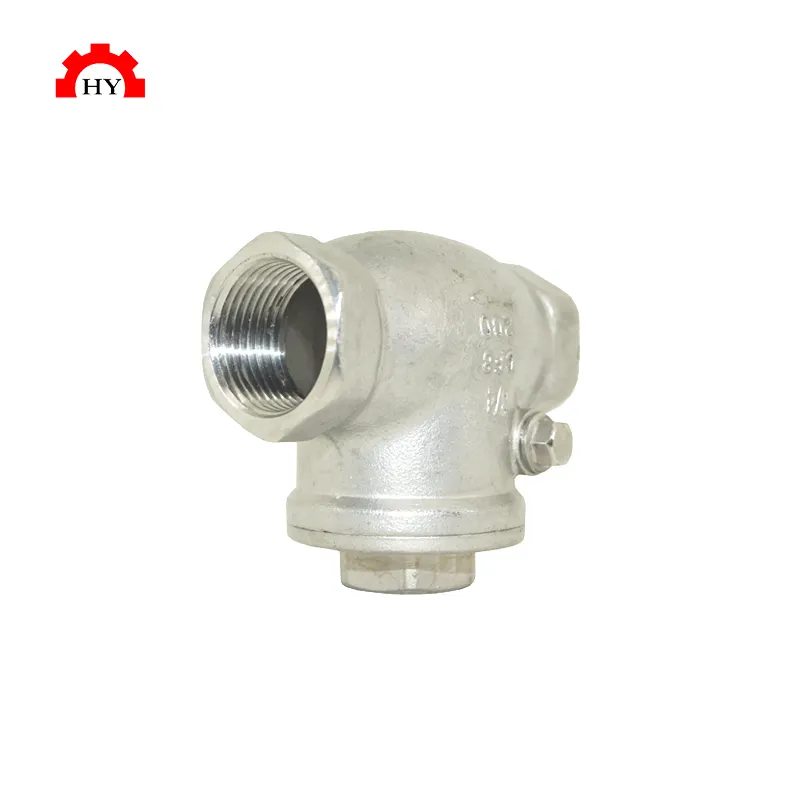

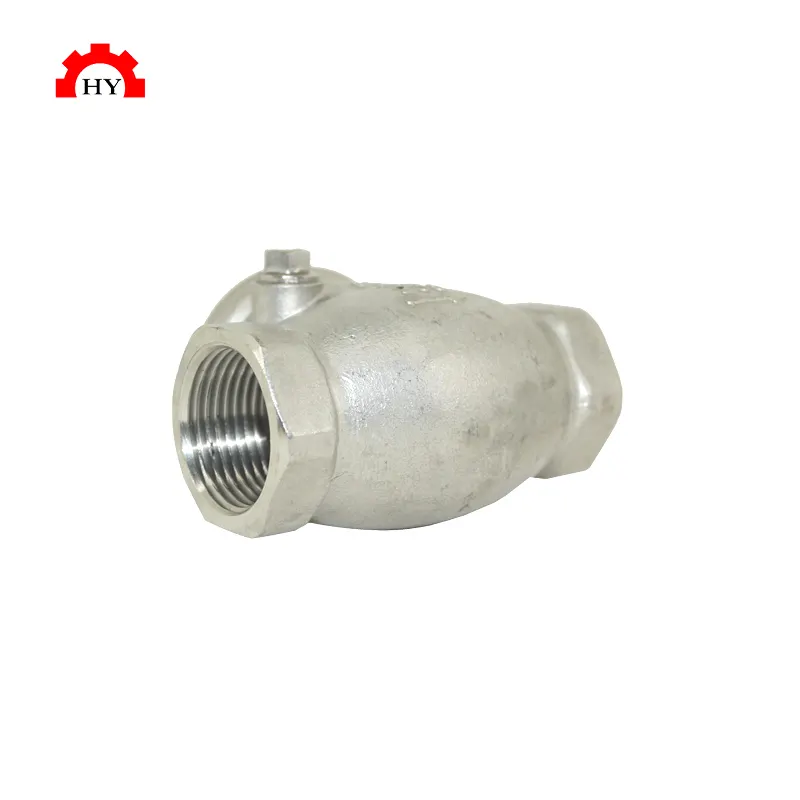

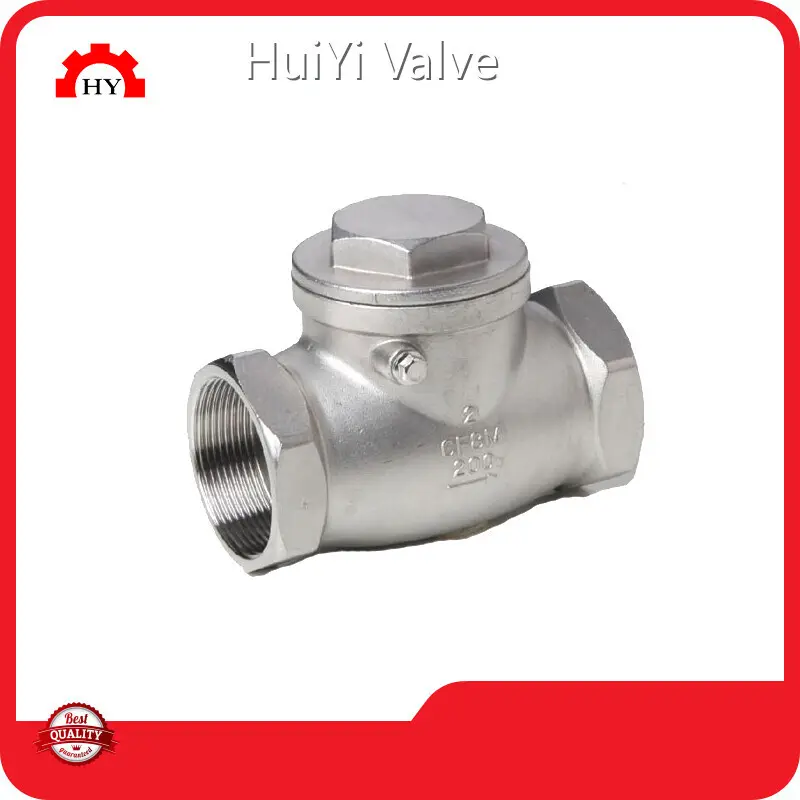

Check Valve Cf8m API 598 by HuiYi Valve
Product details of the check valve cf8m
Product Description
HuiYi Valve check valve cf8m is manufactured with the support of a team of experts. Under the supervision of a professional quality inspector, the product is inspected at all stages of production to ensure good quality. Customer satisfaction and success are the most important measure of Wenzhou Huiyi Valve Technology Co.,Ltd's performance.
Product Description
Check valves are used to help direct flow in one direction. The stainless steel bodies and PTFE seals are highly corrosion resistant allowing these check valves to be used with a wide variety of fluids including, but not limited to water, oil, gas, air, light alkali's, acids, biodiesel, fuels and alcohols
Swing check valves are for horizontal use only. When fluid pushes on the stopper in the correct direction, it will "swing" open to allow flow. If flow moves in the opposite direction, it will swing shut. The check valve cannot be used in vertical applications as gravity may affect the function of the swinging motion
Dimension
|
Size |
∅ D(mm) |
L(mm) |
H(mm) |
|
1/2” |
15 |
65 |
43 |
|
3/4” |
20 |
80 |
53 |
|
1” |
25 |
90 |
60 |
|
1-1/4” |
32 |
105 |
60 |
|
1-1/2” |
40 |
120 |
75 |
|
2” |
50 |
140 |
79 |
Main Parts
|
No. |
Part Name |
Material |
|
1 |
Bonnet |
CF8/CF8M |
|
2 |
Gasket |
PTFE |
|
3 |
Body |
CF8/CF8M |
|
4 |
Hanger Pin |
304 |
|
5 |
Plug Gasket |
PTFE |
|
6 |
Plug |
304 |
|
7 |
Discharge Plug |
CF8/CF8M |
Product details
Company Advantage
• A variety of products have been developed. It helps to form a sales network that spreads across the country. And our products are exported to the Americas, Europe and Southeast Asia.
• HuiYi Valve focuses on morality and tries our best to fulfill people's potential. We recruit talents from all over the country and bring them together. And they have rich experience in R&D, production, sales, and services.
• HuiYi Valve has a great geographical location with quite a few railways and highways nearby, which provides convenience for transportation.
Stable in performance and excellent in quality, HuiYi Valve's are produced and sold directly from the factory at a reasonable price. If you have any needs, please feel free to call us. We are glad to be at your service!
