Carbon Steel Socket Weld Fittings 3000 LB by HuiYi Valve
Product details of the carbon steel socket weld fittings
Product Description
HuiYi Valve carbon steel socket weld fittings stands out in the industry with technological innovation. Product quality has been improved due to the implementation of a strict quality management system. We believe that there are good prospects for this product.
Product Description

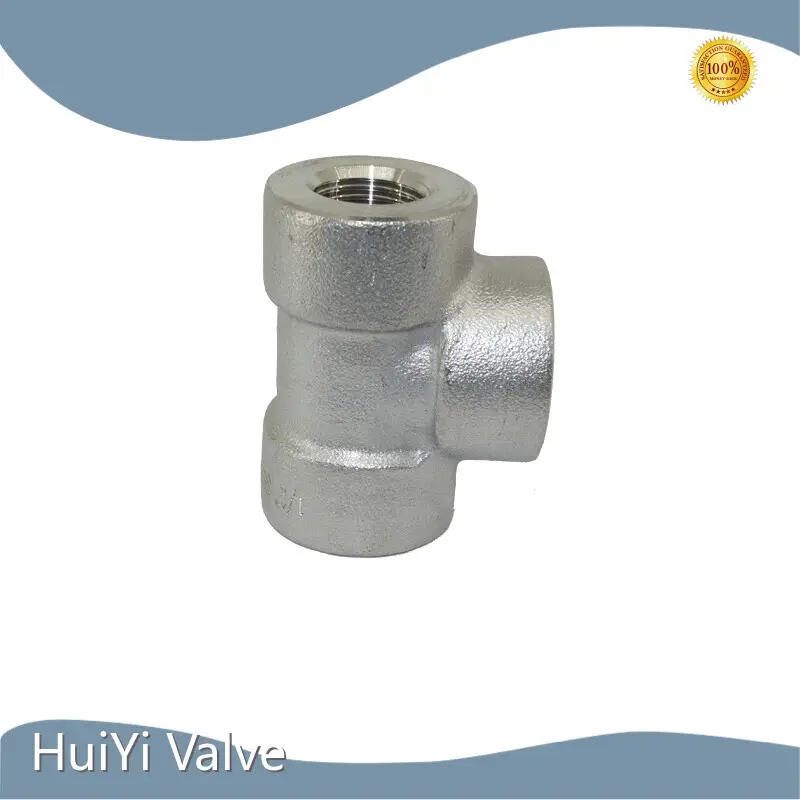

T-shaped pipe fitting for connecting and branching pipes
Female National Pipe Taper (NPT) threads on run and branches
Made from stainless steel 316 for strength, higher corrosion resistance than stainless steel 304
Max Pressure: 16MPa/2320psi; Working Temperature Range: -50℃~+200℃/-58℉~+392℉
Forged for durability, all material is stainless steel. Not include lead, can be used for potable water.
Dimension
|
Nominal Piple Size （NPS） |
Center to End elbow,tee,cross |
Center to End 45 degree elbow |
Outside Diameter of |
Minimum wall thickness |
Minimum Length of Thread |
|||||||||
| 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | |
| 1/8" | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 |
6.7 |
| 1/4" | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 |
10.2 |
| 3/8" | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 |
10.4 |
| 1/2" | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 |
13.6 |
| 3/4" | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 |
13.9 |
| 1" | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 |
17.3 |
| 1-1/4" | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 |
18.0 |
| 1-1/2" | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 |
18.4 |
| 2" | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 84 | 102 | 4.27 | 7.14 | 12.09 | 19.0 |
19.2 |
| 2-1/2" | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 |
28.9 |
| 3" | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 |
30.5 |
| 4" | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 |
33.0 |
Product details
Company Advantage
• HuiYi Valve always puts customers and services in the first place. We constantly improve service while paying attention to product quality. Our goal is to provide high-quality products as well as thoughtful and professional services.
• Our company was established in After developing for years, the scale of operation has been continuously growing.
• The superior geographical location and traffic convenience lay a solid foundation for HuiYi Valve to develop sustainably in the following days.
• We have a professional technical team to provide customers with the best technical support and guarantee in the process of our development and growth.
HuiYi Valve's are all qualified by national certification. If you have any needs, please contact us as soon as possible.
